FMAM5027

Overview

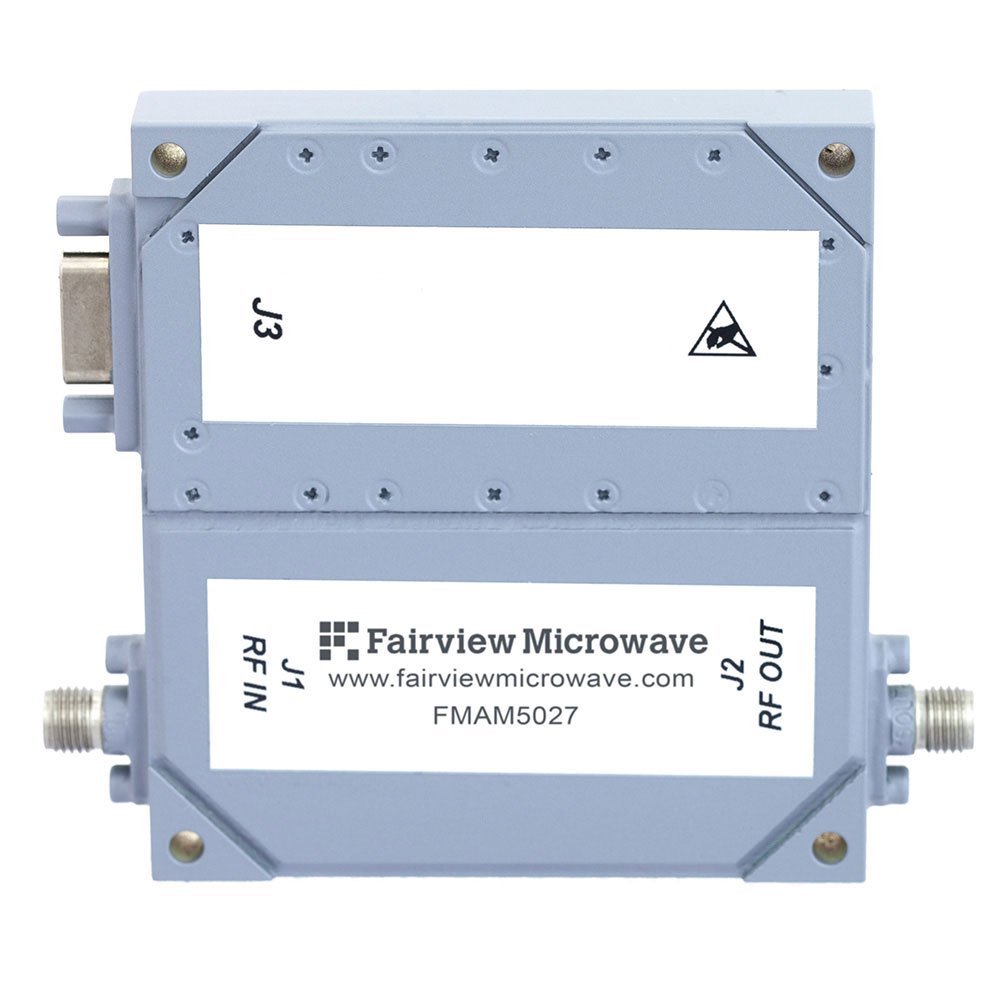

The FMAM5027 is a medium power amplifier manufactured by Fairview Microwave, designed for operation within the 800 MHz to 3000 MHz frequency range. It features a wideband design with a typical linear gain of 19 dB and a P1dB compression point of 26 dBm at 0.8-3 GHz. The device utilizes a hermetically sealed Case VJ package with ten pins, ensuring long-term reliability. It supports an operating temperature range from -40°C to +85°C and maintains a maximum voltage standing wave ratio (VSWR) of 2.

Feature Summary

• Wide frequency band coverage from 0.8 to 3.0 GHz
• Hermetically sealed component structure for enhanced durability
• High linear gain suitable for base station applications

Applications

• Cellular base station amplifiers
• PCS/PCN base station amplifiers
• WLL base station amplifiers

Procurement Notes

Verify the specific manufacturer designation when sourcing this component, as documentation references both Eudyna and Fairview Microwave. Confirm that the required package type matches the hermetically sealed Case VJ configuration. Ensure that environmental specifications meet the operational temperature requirements of -40°C to +85°C for your intended deployment scenario.

Selection Notes

Select this amplifier for applications requiring broad bandwidth coverage between 800 MHz and 3 GHz. Consider its high linearity and medium power output characteristics for systems needing reliable signal amplification. The hermetic sealing makes it suitable for environments demanding strict longevity and stability standards.

Part Context

This component belongs to the category of MMIC power amplifiers specifically engineered for wireless communication infrastructure. It integrates three amplifier stages to deliver consistent performance across its designated frequency spectrum. The design prioritizes ease of use and robustness for critical radio frequency applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
