FMAM5029

Overview

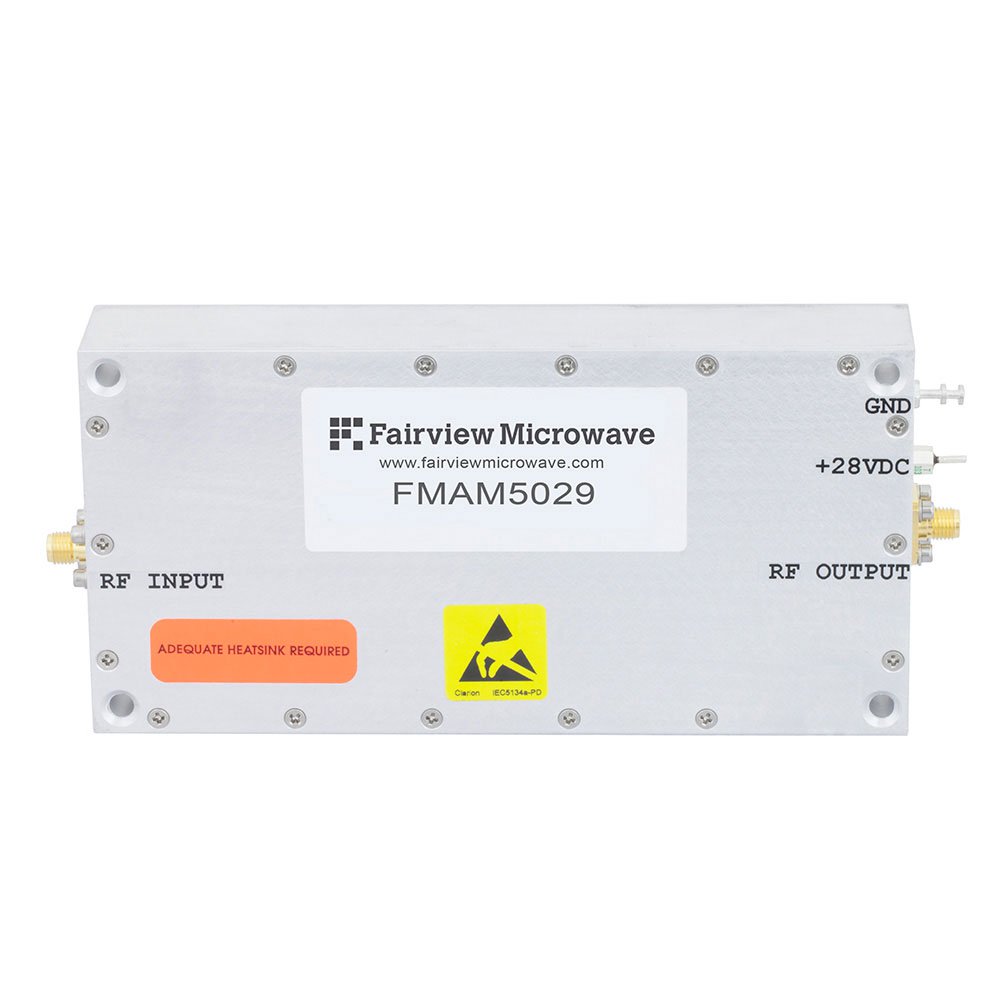

The FMAM5029 is a high-power LDMOS RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 0.5 MHz to 500 MHz and provides a gain of 44 dB. The device delivers an output power (Psat) of 8 watts and features a third-order intercept point (IP3) of 42 dBm. It utilizes SMA connectors for both input and output interfaces.

Feature Summary

• High-power LDMOS technology for robust signal amplification
• Wideband operation covering low frequency to VHF spectrum
• Integrated module design with standard SMA connectivity

Applications

• RF signal generation and testing equipment
• Broadband communication systems
• Military and aerospace radar applications

Procurement Notes

Verify the specific datasheet version before integration, as manufacturer specifications may undergo revisions. Confirm that the required operating voltage and current levels match your system power supply capabilities. Ensure thermal management solutions are adequate for the 8-watt output power dissipation. Validate connector compatibility with existing SMA infrastructure in your assembly.

Selection Notes

Select this component when wideband coverage from 0.5 MHz to 500 MHz is required alongside high linearity. The 44 dB gain and 42 dBm IP3 make it suitable for demanding linear amplification tasks. Consider the module form factor if space constraints preclude discrete component designs. Compare against lower-frequency or higher-frequency alternatives if the operational band does not align with project requirements.

Part Context

Fairview Microwave specializes in RF components and modules for specialized industries. The FMAM5029 belongs to their portfolio of high-performance amplifiers designed for rigorous environments. This product supports engineers requiring reliable signal boosting across broad frequency ranges without compromising linearity or power output stability.
