FMAM5029F

Overview

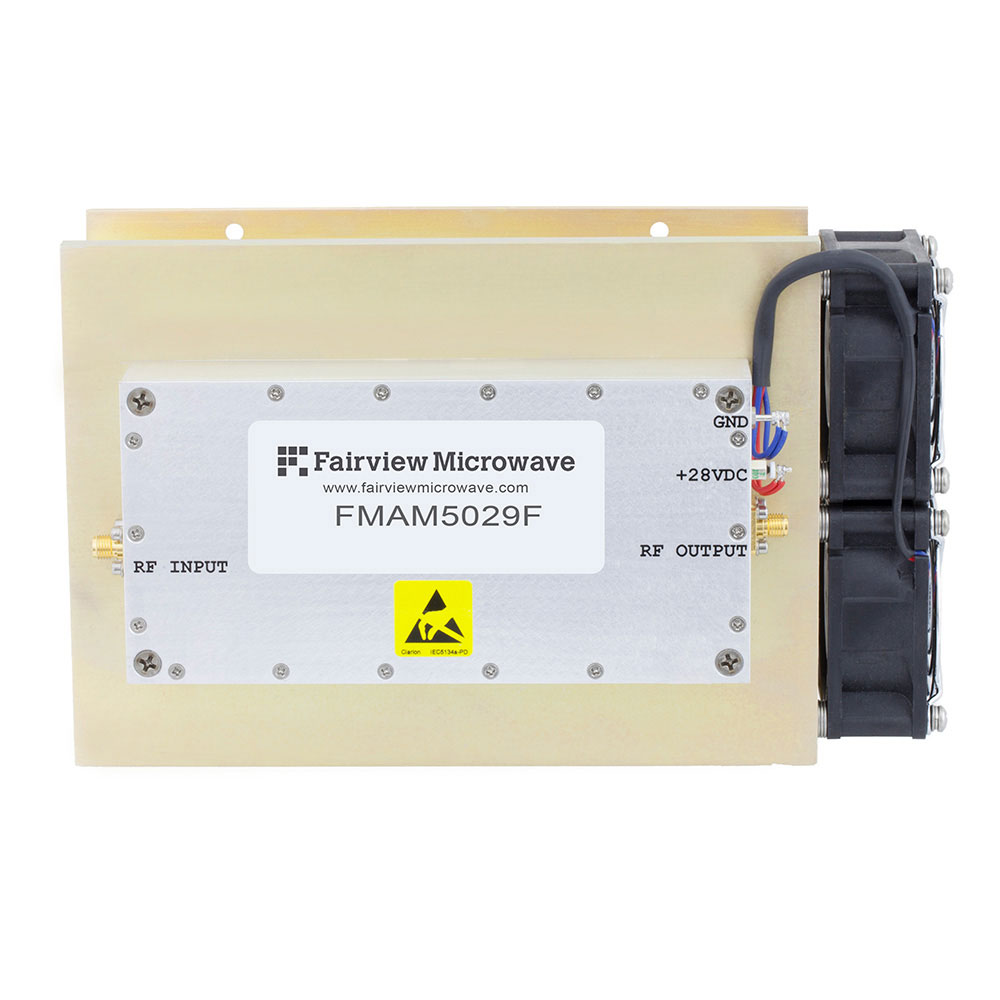

The FMAM5029F is a high-power LDMOS RF amplifier module manufactured by Fairview Microwave. It provides 44 dB of gain with an output power saturation (Psat) of 8 Watts. The device operates within a frequency range of 0.5 MHz to 500 MHz and features a third-order intercept point (IP3) of 42 dBm. Connectivity is established via SMA input and SMA output interfaces. The unit includes a heatsink for thermal management and complies with RoHS standards.

Feature Summary

• High-power LDMOS technology for robust signal amplification
• Integrated heatsink for effective thermal dissipation
• SMA connector interface for standard RF connectivity

Applications

• RF signal generation systems
• Test and measurement equipment
• Broadband communication infrastructure

Procurement Notes

Verify the specific suffix 'F' against the manufacturer's official datasheet to confirm the inclusion of the heatsink variant, as base model descriptions may differ. Ensure SMA connector compatibility with system requirements. Confirm RoHS compliance status through current regulatory documentation before integration into final products.

Selection Notes

Select this component when a wide bandwidth from 0.5 MHz to 500 MHz is required alongside moderate high-power output. The 44 dB gain suits applications needing significant signal boosting without excessive noise figure concerns typical of lower-frequency stages. Verify that the 8 Watt Psat aligns with downstream load capabilities.

Part Context

This module belongs to the Fairview Microwave RF amplifier family, specifically designed for general-purpose high-power applications. It utilizes LDMOS technology to achieve stable performance across its specified frequency range. The product is categorized under wireless and RF integrated circuits, serving as a discrete amplification solution for modular RF designs.

Replacement Considerations

The FMAM5029 is listed as a related part number in distributor catalogs. Verify if the non-F variant lacks the heatsink or differs in electrical specifications before substitution. Cross-reference pinouts and thermal requirements to ensure mechanical compatibility.
