FMAM5031F

Overview

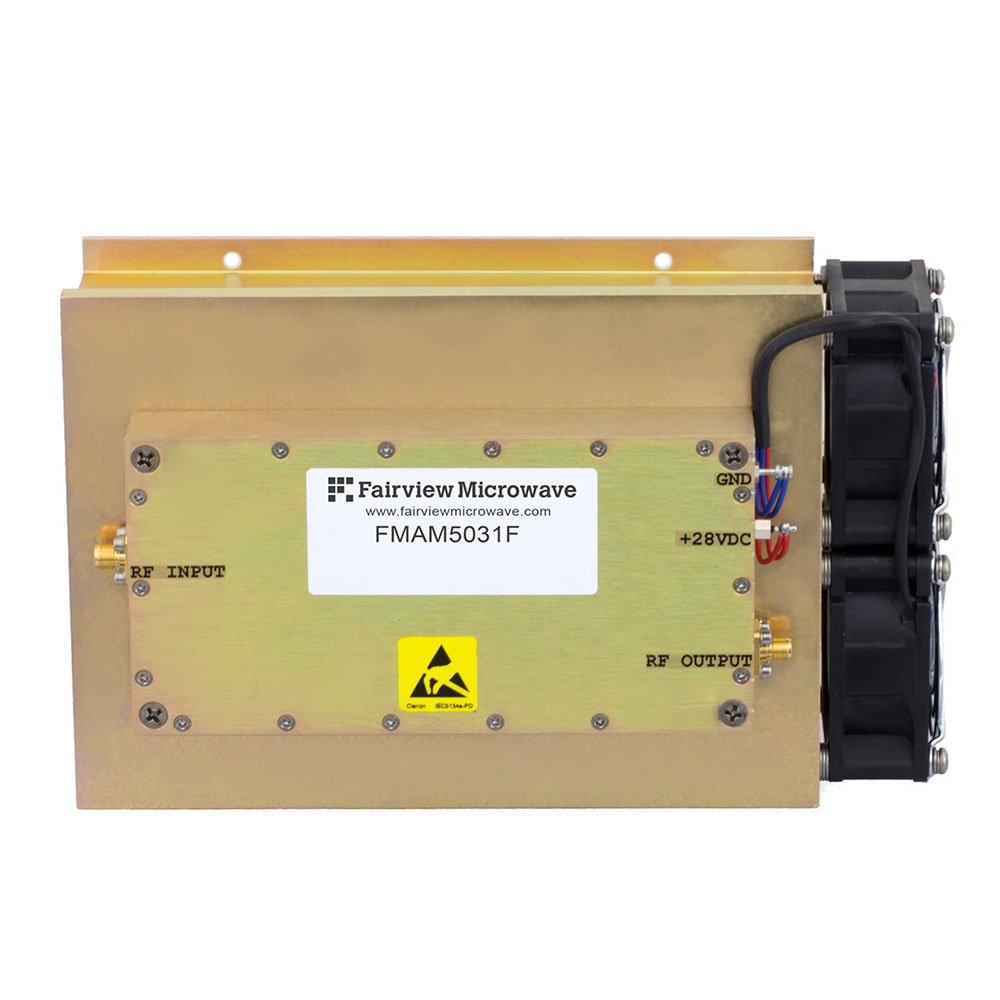

The FMAM5031F is a high-power LDMOS RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 20 MHz to 1 GHz and provides a gain of 46 dB. The device delivers a saturated output power (Psat) of 25 Watts and exhibits a third-order intercept point (IP3) of 48 dBm. It features SMA input and output connectors and includes an integrated heatsink for thermal management.

Feature Summary

• High-power LDMOS technology construction
• Broadband operation from 20 MHz to 1 GHz
• Integrated heatsink for thermal dissipation

Applications

• RF signal amplification in communication systems
• Test and measurement equipment
• Industrial radio frequency applications

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific unit matches the FMAM5031F designation and includes the required SMA connectors and heatsink configuration. Request official datasheets to validate technical specifications against project requirements before finalizing procurement decisions.

Selection Notes

Select this model when broadband coverage between 20 MHz and 1 GHz is required alongside high output power capabilities. The 46 dB gain and 25 W Psat make it suitable for demanding linear amplification tasks. Ensure system design accommodates the necessary DC supply conditions and thermal environment provided by the integrated heatsink structure.

Part Context

This component belongs to the Fairview Microwave RF amplifier product line, specifically designed for high-power applications using LDMOS technology. It serves as a specialized solution for engineers requiring reliable amplification across VHF and UHF bands with standardized SMA interfaces.

Replacement Considerations

No public confirmed substitute part numbers are available in the source documentation.
