FMAM5033F

Overview

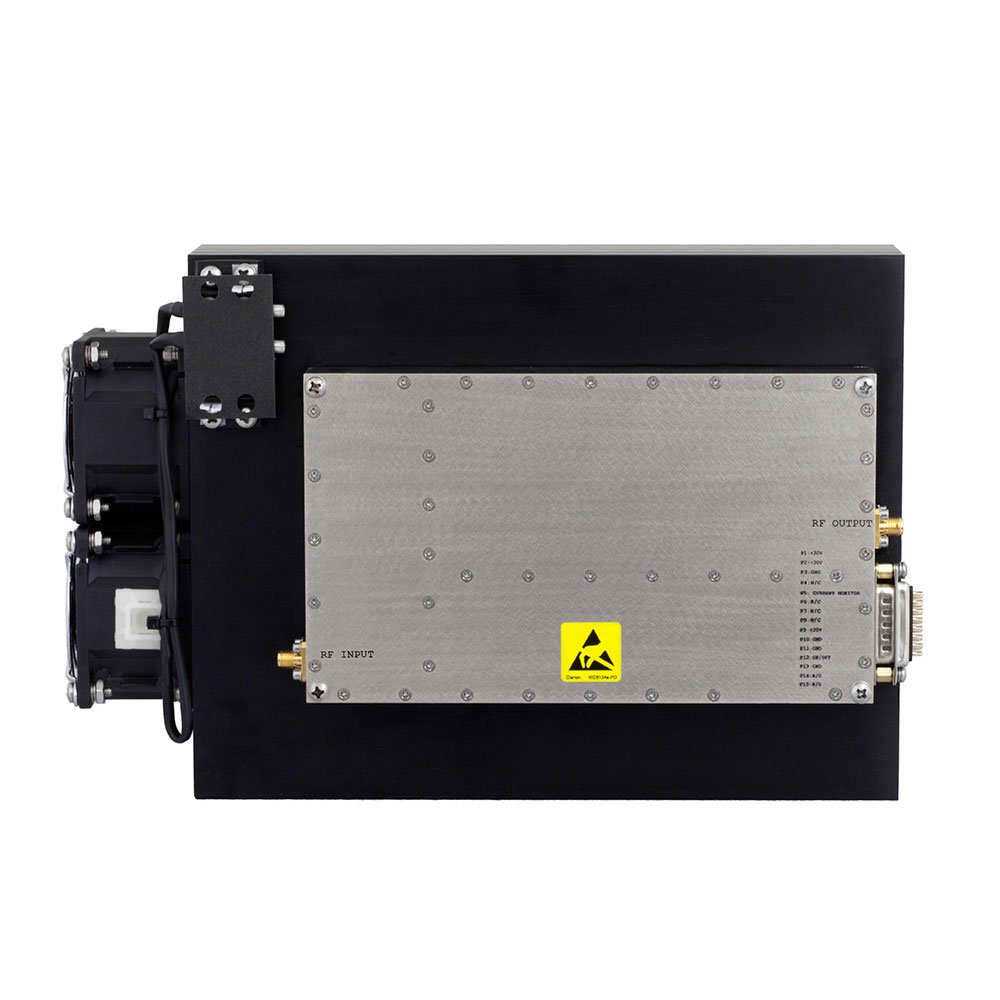

The FMAM5033F is a high-power GaN RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 700 MHz to 2.7 GHz and provides a gain of 45 dB. The device delivers an output power (Psat) of 100 Watts. It features SMA input and output connectors and includes an integrated heat sink for thermal management. The unit requires a supply current of 16.66 A and weighs approximately 4.309 kg.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power performance
• Includes an integrated heat sink for effective thermal dissipation
• Features SMA connectors for both input and output interfaces

Applications

• High-power radio frequency signal amplification
• Broadband communication systems operating in the UHF and SHF bands
• Test and measurement equipment requiring high saturation power

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific order matches the FMAM5033F designation, as availability may vary by region. Ensure proper handling procedures are followed due to the significant weight and thermal requirements of the unit. Review the official datasheet for detailed electrical specifications and mechanical dimensions before integration.

Selection Notes

Select this amplifier when applications require high saturation power output near 100 Watts across a wide bandwidth from 700 MHz to 2.7 GHz. The choice is driven by the need for GaN technology efficiency and high gain characteristics. Consider the physical size and weight constraints, as the unit includes a substantial heat sink. Ensure the system design accommodates the required 16.66 A supply current and SMA interface compatibility.

Part Context

This component belongs to the Fairview Microwave portfolio of RF amplifiers. It is categorized under wireless and RF integrated circuits, specifically designed for power amplification tasks. The product utilizes advanced semiconductor materials to achieve high performance in demanding RF environments.

Replacement Considerations

Consult the official Fairview Microwave documentation for verified substitute part numbers. Cross-reference technical specifications such as gain, frequency range, and connector types to ensure functional equivalence. No alternative part numbers are confirmed in the provided public data.
