FMAM5036

Overview

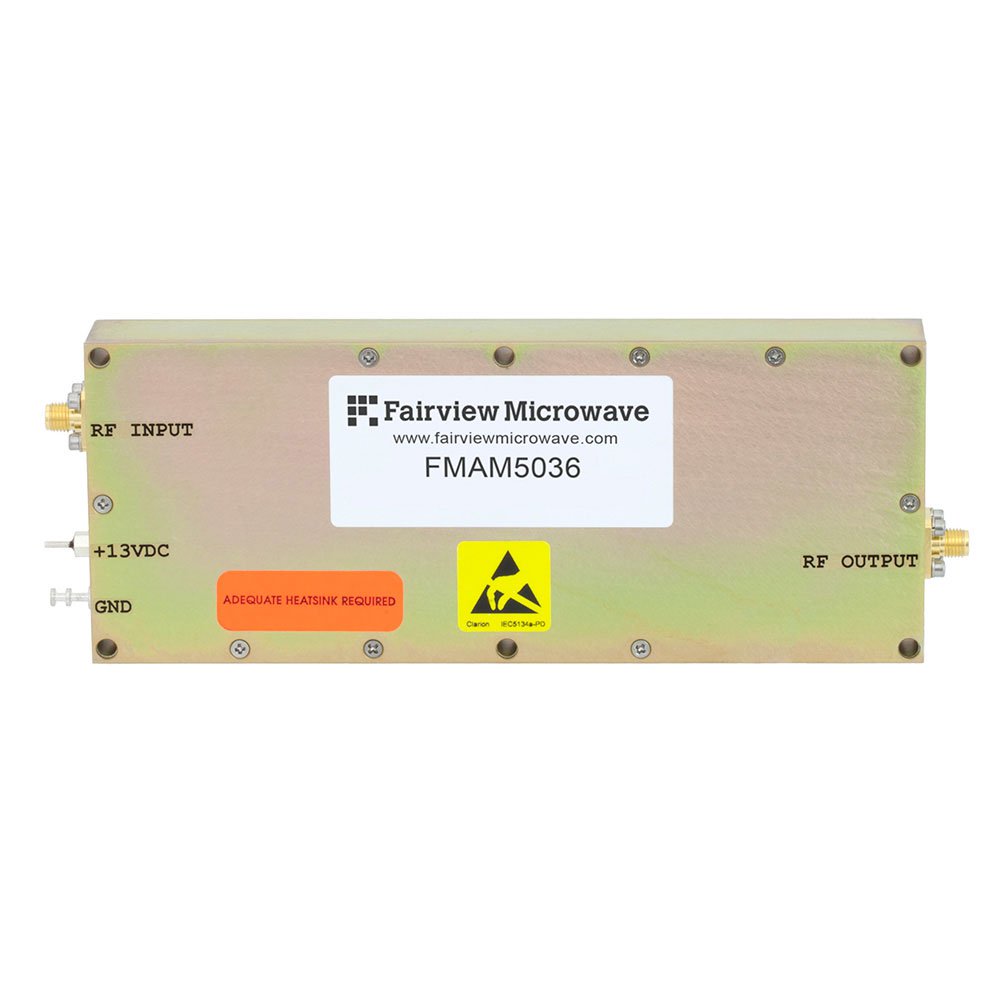

The FMAM5036 is a high-power GaN RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 2.5 GHz, providing a nominal gain of 40 dB. The device delivers an output power of 10 W at saturation (Psat) and features a third-order intercept point (IP3) of 52 dBm. Electrical requirements include a maximum supply voltage of 13 Vdc and a maximum current draw of 4000 mAdc. The component utilizes SMA connectors for input and output interfaces.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power performance
• Provides 40 dB nominal gain across the operational bandwidth
• Features SMA connector interfaces for signal transmission

Applications

• High-power RF signal amplification
• General purpose RF applications requiring high linearity
• Test and measurement equipment signal conditioning

Procurement Notes

Verify the specific datasheet version and electrical tolerances prior to integration. Confirm that the system power supply can sustain the maximum current requirement of 4000 mAdc without voltage droop under peak load conditions. Ensure mechanical clearance accommodates the module form factor and thermal management requirements associated with high-power operation.

Selection Notes

Select this component when a high-gain, high-linearity solution is required in the 1-2.5 GHz band. The GaN technology offers superior power handling compared to standard silicon alternatives. Consider the 10 W Psat capability for systems demanding significant output swing. Verify compatibility with SMA interconnects and ensure adequate heat dissipation strategies are implemented for continuous wave operation.

Part Context

This part belongs to Fairview Microwave's portfolio of high-power RF amplifier modules. These components are designed for robust performance in demanding RF environments. The FMAM5036 specifically targets applications needing substantial gain and power output within the UHF and lower microwave spectrum ranges.

Replacement Considerations

No officially confirmed substitute part numbers are documented in public sources. Evaluate alternative GaN amplifier modules from the same manufacturer based on matching frequency ranges, gain specifications, and power output capabilities.
