FMAM5037F

Overview

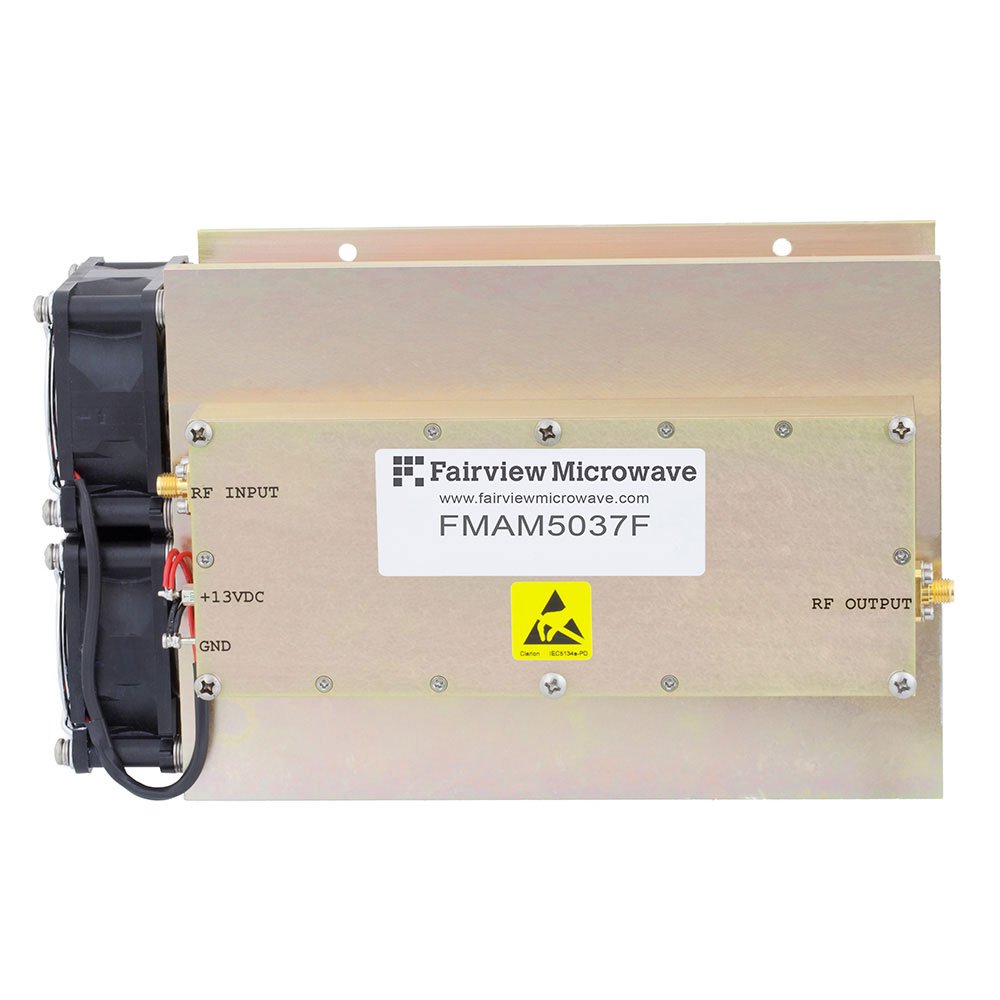

The FMAM5037F is a high gain Class A/AB coaxial linear power amplifier manufactured by Fairview Microwave. It operates within the 1 GHz to 3 GHz frequency range and delivers an 8 Watt Psat output power with a 44 dB gain. The module features SMA connectors for input and output interfaces and includes a heatsink for thermal management.

Feature Summary

• High gain linear amplification in the 1 GHz to 3 GHz band
• Integrated heatsink for thermal dissipation
• Coaxial module design with SMA connectors

Applications

• RF signal chain integration
• Test and measurement equipment
• Wireless communication systems

Procurement Notes

Verify the specific datasheet version and connector pinout before integration. Confirm that the host system provides adequate thermal sinking for the integrated heatsink. Ensure supply voltage and current requirements match the amplifier's specifications to prevent damage.

Selection Notes

Select this component when a fixed 44 dB gain and 8 Watt Psat are required in the 1-3 GHz range. Consider the SMA interface compatibility and chassis mounting requirements. Evaluate thermal solutions if ambient conditions exceed standard operating limits.

Part Context

This model belongs to Fairview Microwave's RF amplifier portfolio, designed for general-purpose applications between 1 GHz and 3 GHz. It serves as a medium-to-high power stage within modular RF architectures requiring stable linear performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
