FMAM5038

Overview

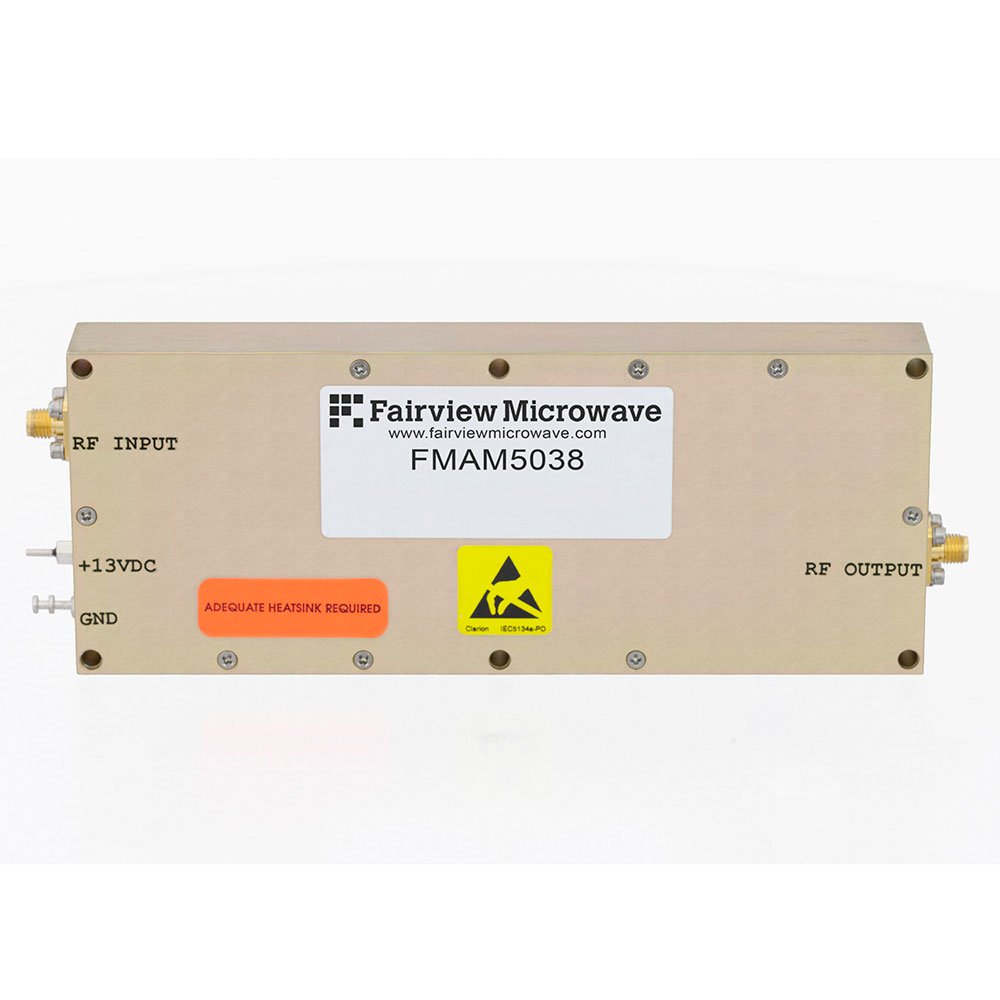

The FMAM5038 is a power amplifier manufactured by Fairview Microwave, designed for operation within the 2 GHz to 4 GHz frequency range. It features SMA connectors for input and output interfaces. The device provides a small signal gain of 39 dB peak-to-peak with a gain flatness of 1.5 dB. Its maximum output power is rated at 37.8 dBm. This component is classified under RF amplifiers and utilizes standard packaging.

Feature Summary

• Provides high output power capability suitable for demanding RF applications
• Operates across a defined 2 GHz to 4 GHz bandwidth
• Maintains consistent signal amplification with specified gain flatness

Applications

• RF signal generation systems
• Test and measurement equipment
• Communication infrastructure components

Procurement Notes

Verify the specific SMA connector gender and pin configuration against system requirements before ordering. Confirm that the 37.8 dBm output power rating aligns with downstream component limits. Ensure the 2 GHz to 4 GHz operational range covers all intended signal frequencies. Check for any required thermal management solutions given the power levels involved.

Selection Notes

Select this model when a wideband power amplifier is needed between 2 GHz and 4 GHz. Consider the 39 dB gain specification for system link budget calculations. Evaluate the SMA interface compatibility with existing circuit boards or cable assemblies. Compare performance metrics against alternative models if higher or lower output power is required.

Part Context

This part belongs to Fairview Microwave's portfolio of RF amplifiers. It serves as an active component for boosting signal strength in microwave frequency bands. The product complements passive interconnects and other active modules within complete RF system architectures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
