FMAM5041

Overview

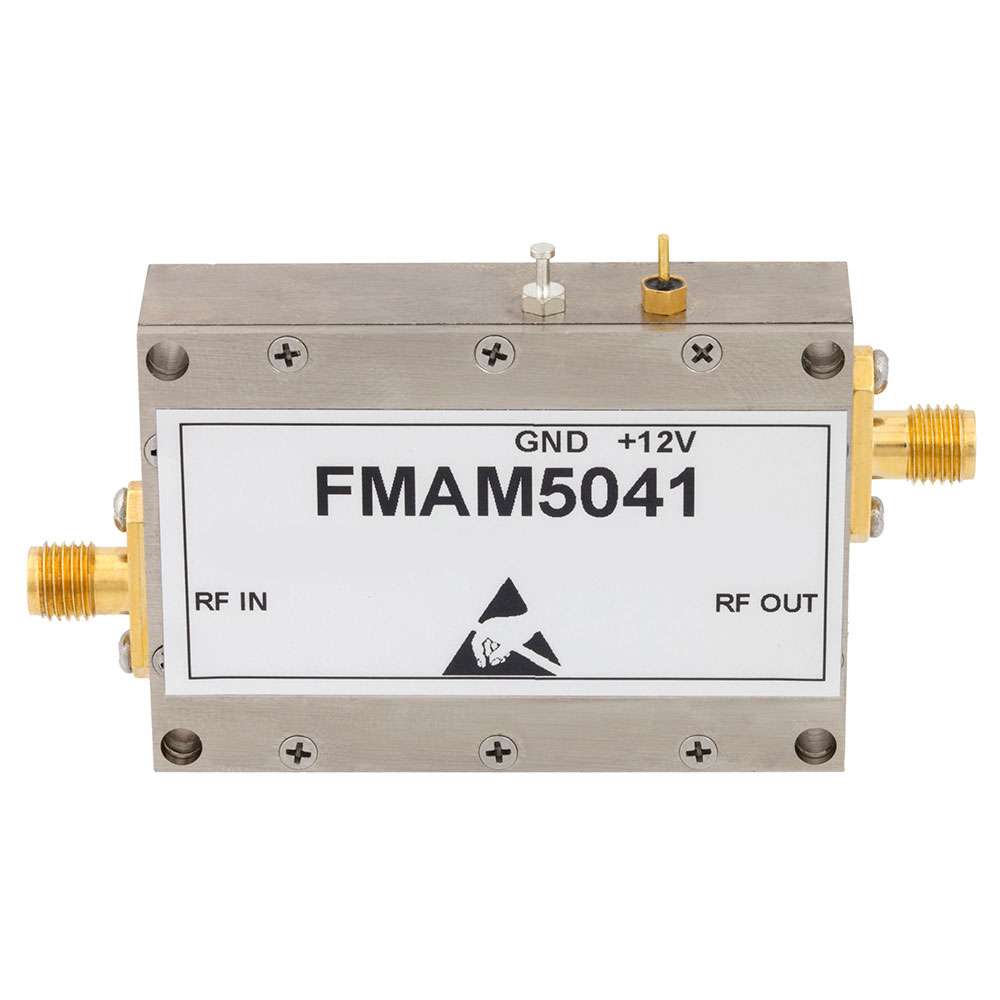

The FMAM5041 is a high-power RF amplifier manufactured by Fairview Microwave, designed for operation within the 800 MHz to 960 MHz frequency range. It delivers a small signal gain of 37 dB and features a saturated output power (Psat) of 25 Watts. The device provides a P1dB compression point of 6 Watts and an OIP3 of 50 dBm. It utilizes SMA connectors for both input and output interfaces and includes an integrated heatsink for thermal management.

Feature Summary

• High power output capability with 25 Watt Psat
• Integrated heatsink for efficient thermal dissipation
• SMA male connectors for standard RF interfacing

Applications

• Wireless communication base stations
• Test and measurement instrumentation
• Signal generation systems

Procurement Notes

Verify the specific datasheet version for the FMAM5041 to confirm current manufacturing status and detailed electrical specifications. Ensure that the procurement channel provides official documentation from Fairview Microwave. Confirm that the SMA connector polarity and mating requirements align with the system design before finalizing the order.

Selection Notes

Select the FMAM5041 when a high-output power amplifier is required for the 800-960 MHz band. Consider its 25 Watt Psat and 37 dB gain for applications demanding significant signal amplification. Evaluate the thermal requirements due to the high power output and ensure adequate cooling solutions are available alongside the integrated heatsink.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under wireless and RF integrated circuits. It serves as a high-power solution for frequencies between 800 MHz and 960 MHz, complementing other low-noise and medium-power amplifier models in the manufacturer's portfolio.
