FMAM5054

Overview

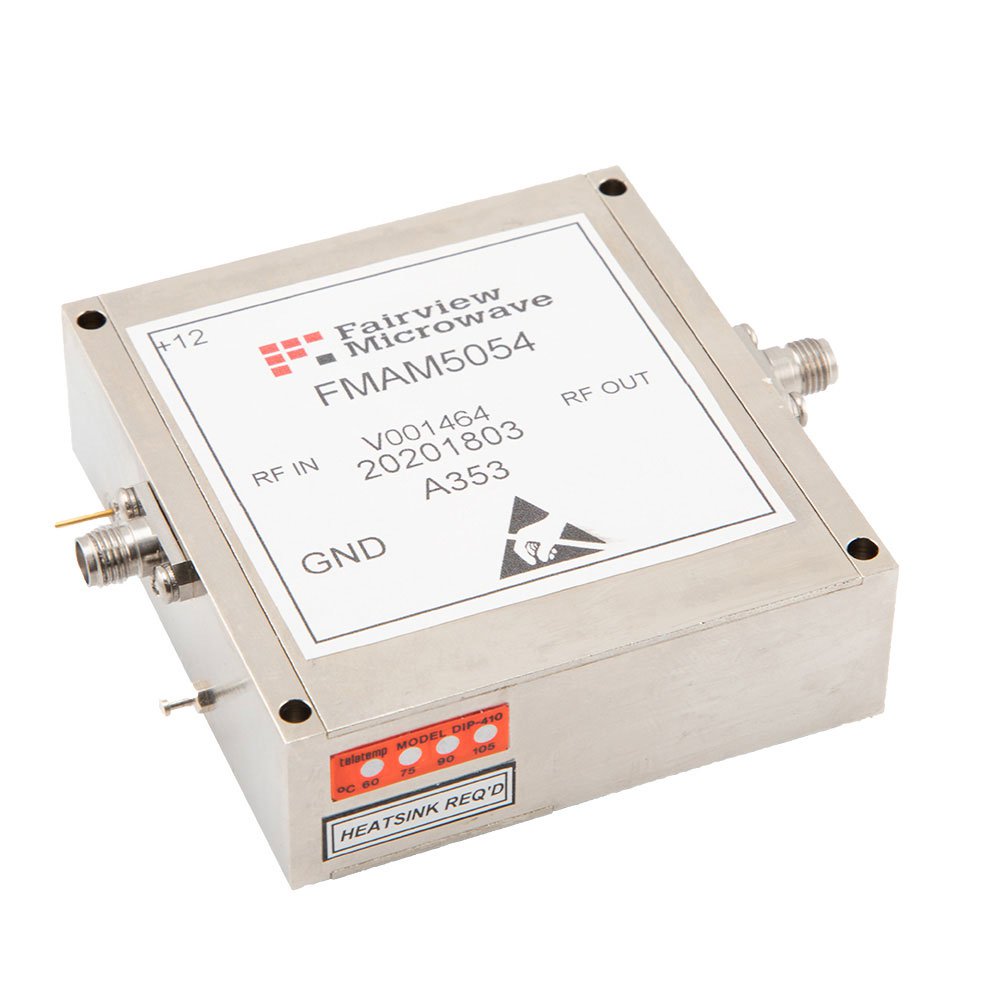

The FMAM5054 is a medium power GaAs RF amplifier manufactured by Fairview Microwave. It operates within the frequency range of 18 GHz to 26.5 GHz. The device delivers a saturated output power (Psat) of 2 Watts and provides an output third-order intercept point (OIP3) of 40 dBm. It requires an operating supply current of 5.8 A. The module utilizes SMA connectors for interfacing and is designed for high-frequency signal amplification applications.

Feature Summary

• Medium power amplification capability with 2 Watt Psat
• High linearity performance indicated by 40 dBm OIP3
• Operates in the K-band frequency spectrum from 18 GHz to 26.5 GHz
• Utilizes GaAs technology for efficient signal processing

Applications

• Point-to-point microwave communication links
• Satellite communication ground stations
• Test and measurement instrumentation equipment
• Military radar systems requiring high-frequency amplification

Procurement Notes

Verify the specific datasheet version and connector type compatibility before integration. Confirm thermal management requirements due to the 5.8 A supply current. Ensure that the SMA interface matches the system board layout. Check for any regional distribution restrictions or lead time variations associated with this component.

Selection Notes

Select this model when a medium power solution is required for frequencies between 18 GHz and 26.5 GHz. Consider the 40 dBm OIP3 for linearity-sensitive applications. Evaluate the 5.8 A current draw against available power supplies. Compare against other Fairview Microwave models if different power levels or frequency ranges are needed.

Part Context

This component belongs to the Fairview Microwave RF Amplifier category, specifically focusing on medium power GaAs devices. It is part of a series designed for wireless and RF modules, offering standardized SMA interfaces. The product supports high-frequency applications where moderate power output and good linearity are critical requirements.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for cross-reference options or equivalent specifications.
