FMAM5057

Overview

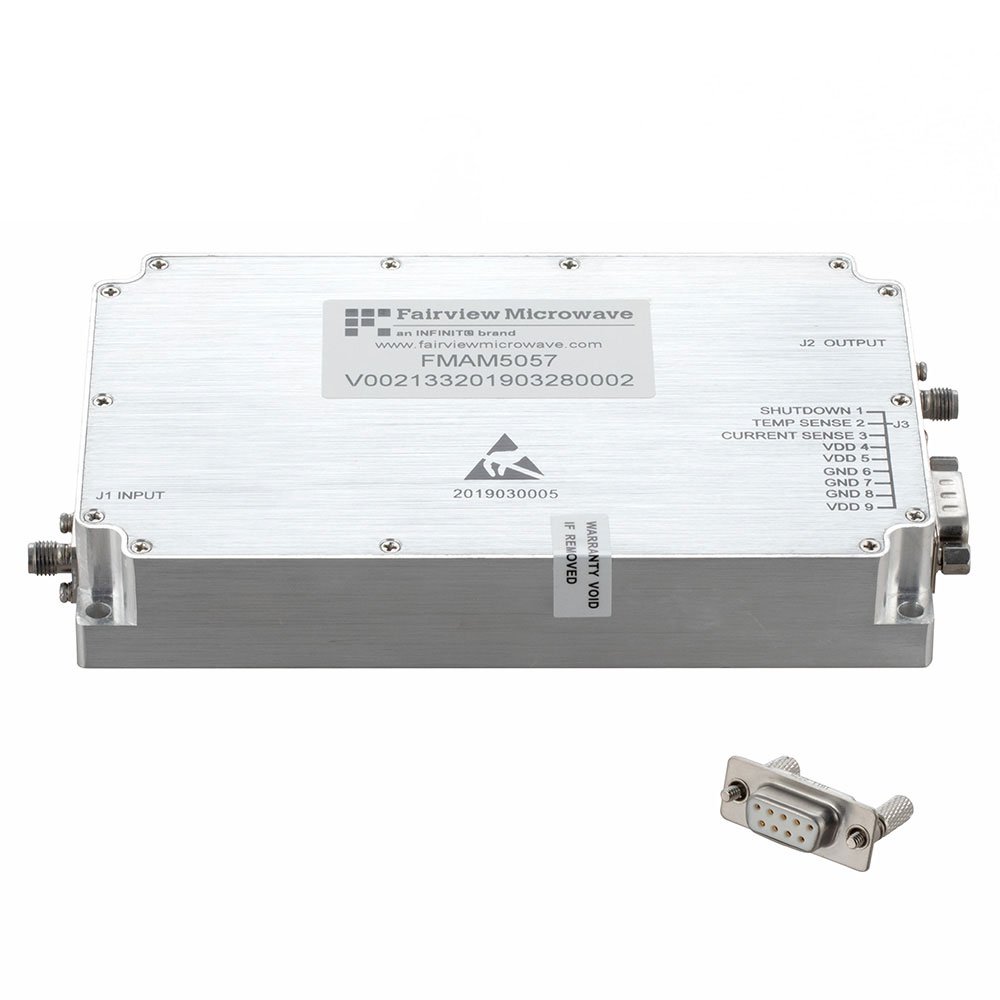

The FMAM5057 is a general-purpose RF amplifier manufactured by Fairview Microwave, designed for EMC power applications. It operates within a frequency range of 20 MHz to 1 GHz. The device provides a small signal gain of 49 dB with a gain flatness of ±2 dB. It delivers saturated power levels between 47 and 49 dBm, corresponding to approximately 50.11 watts. This component is suitable for high-power transmission requirements in radio frequency systems.

Feature Summary

• High output power capability for demanding RF applications
• Broadband operation covering low to ultra-high frequencies
• Consistent gain performance across the operating bandwidth

Applications

• Electromagnetic compatibility testing equipment
• RF signal generation and transmission systems
• Broadcasting infrastructure components

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances and thermal management requirements before integration. Confirm that the supply chain documentation aligns with current manufacturing standards. Ensure that the receiving facility has appropriate handling procedures for high-power RF modules to maintain component integrity during installation.

Selection Notes

Select this model when broadband coverage from 20 MHz to 1 GHz is required alongside significant output power. Consider the thermal dissipation needs associated with 50-watt operation. Evaluate interface compatibility and mounting constraints relative to the target system architecture to ensure seamless integration.

Part Context

Fairview Microwave produces this amplifier as part of its RF amplifier portfolio. It serves as a solution for applications requiring substantial power amplification over a wide frequency spectrum. The design supports robust performance in environments where signal strength and frequency stability are critical operational parameters.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
