FMAM5059

Overview

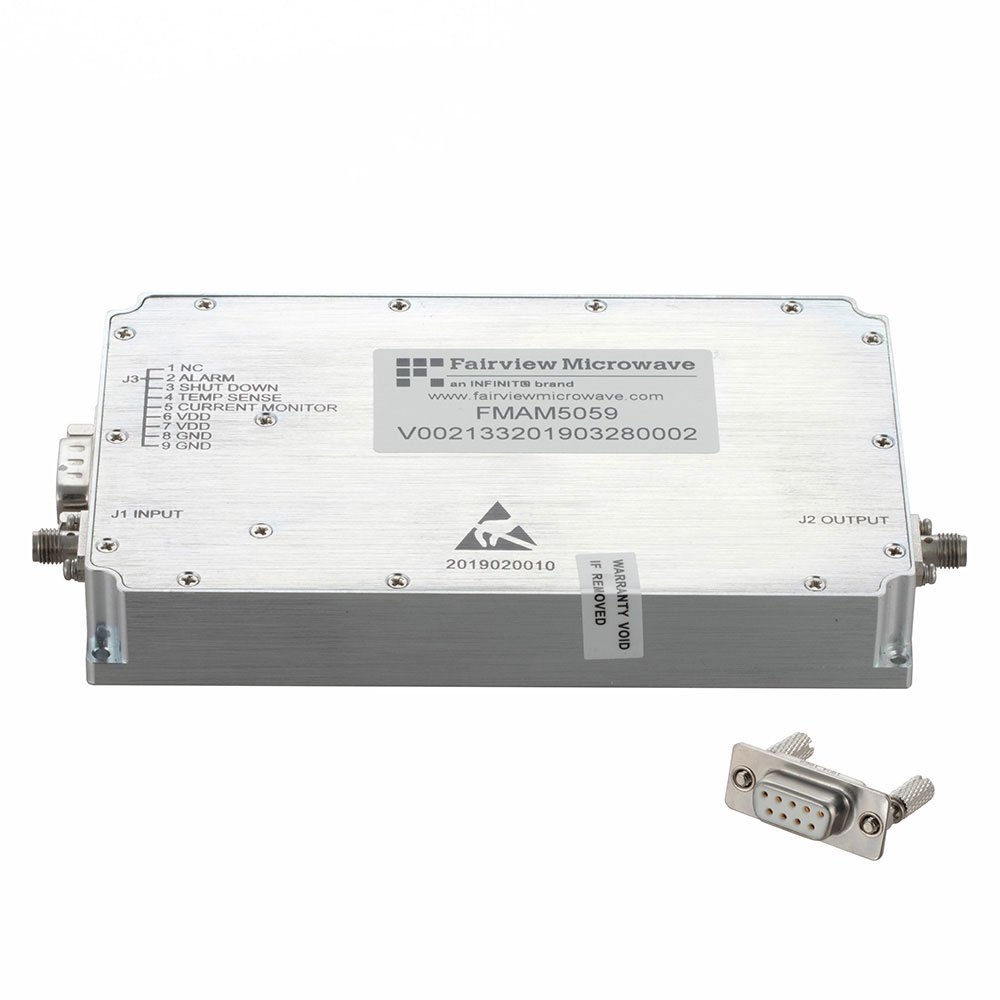

The FMAM5059 is a general-purpose power amplifier manufactured by Fairview Microwave, designed for operation within the 500 MHz to 2.5 GHz frequency range. It delivers a small signal gain of 48 dB with a gain flatness of ±2 dB. The device achieves a saturated output power of 47 dBm and operates on a supply voltage between 24 V and 32 V. It utilizes SMA connectors and employs chassis mounting for installation.

Feature Summary

• Provides high linear gain suitable for general-purpose RF applications
• Features wideband operation across the sub-gigahertz spectrum
• Designed for robust chassis mounting configurations

Applications

• General-purpose RF signal amplification
• Sub-gigahertz communication systems
• Test and measurement equipment front-ends

Procurement Notes

Verify component status as the FMAM5059 is listed as obsolete in available distributor records. Confirm availability through secondary market channels or authorized surplus suppliers. Ensure compatibility with existing 24 V to 32 V power supplies and SMA interface requirements before procurement.

Selection Notes

Select this model when high gain and saturated power are required in the 500 MHz to 2.5 GHz band. Consider chassis mounting constraints and SMA connector interfaces during system design. Evaluate thermal management needs due to high output power capabilities.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifiers, specifically targeting general-purpose applications. It represents a discrete power amplifier solution distinct from integrated circuit modules, offering standalone performance characteristics for custom RF chain integration.
