FMAM5066

Overview

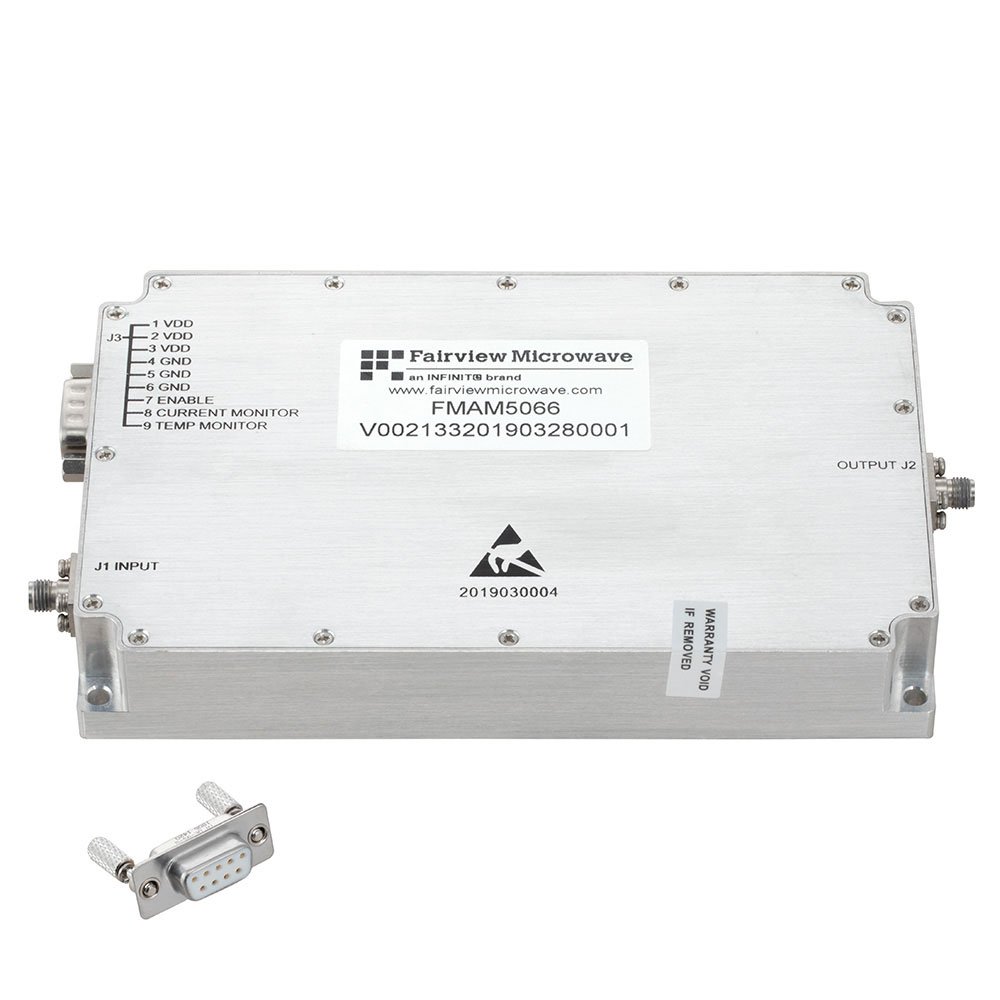

The FMAM5066 is a high-power GaN amplifier module from Fairview Microwave, operating from 2 GHz to 6 GHz with SMA connectors. It delivers 43 dB gain and achieves a saturated power (Psat) of 20 Watts. The unit features a P1dB compression point of approximately 37 dBm and includes an integrated heatsink for thermal management. Designed for robust performance in demanding RF environments, it supports applications requiring significant signal amplification across the specified frequency range.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high power density
• Includes integrated heatsink for efficient thermal dissipation
• Provides high gain output suitable for power amplification tasks

Applications

• High power RF signal generation
• Test and measurement equipment
• Military and aerospace radar systems

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Request official datasheets and test reports to confirm electrical parameters match specifications. Ensure proper handling procedures are followed due to the sensitive nature of GaN semiconductor devices and the presence of integrated thermal management components.

Selection Notes

Select this model when high output power and wide bandwidth are required within the 2-6 GHz range. Consider the integrated heatsink design for applications where external cooling solutions are impractical. Evaluate system power supply requirements against the amplifier's consumption needs to ensure stable operation during peak load conditions.

Part Context

This component belongs to Fairview Microwave’s portfolio of high-performance RF amplifiers. It complements other modules like the FMAM5060 series by offering specific power and gain characteristics tailored for C-band and X-band applications. The product line emphasizes reliability and thermal efficiency for critical infrastructure.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Designers should evaluate alternative high-power GaN amplifiers with similar frequency ranges and power outputs, ensuring connector compatibility and thermal interface requirements are met.
