FMAM5074

Overview

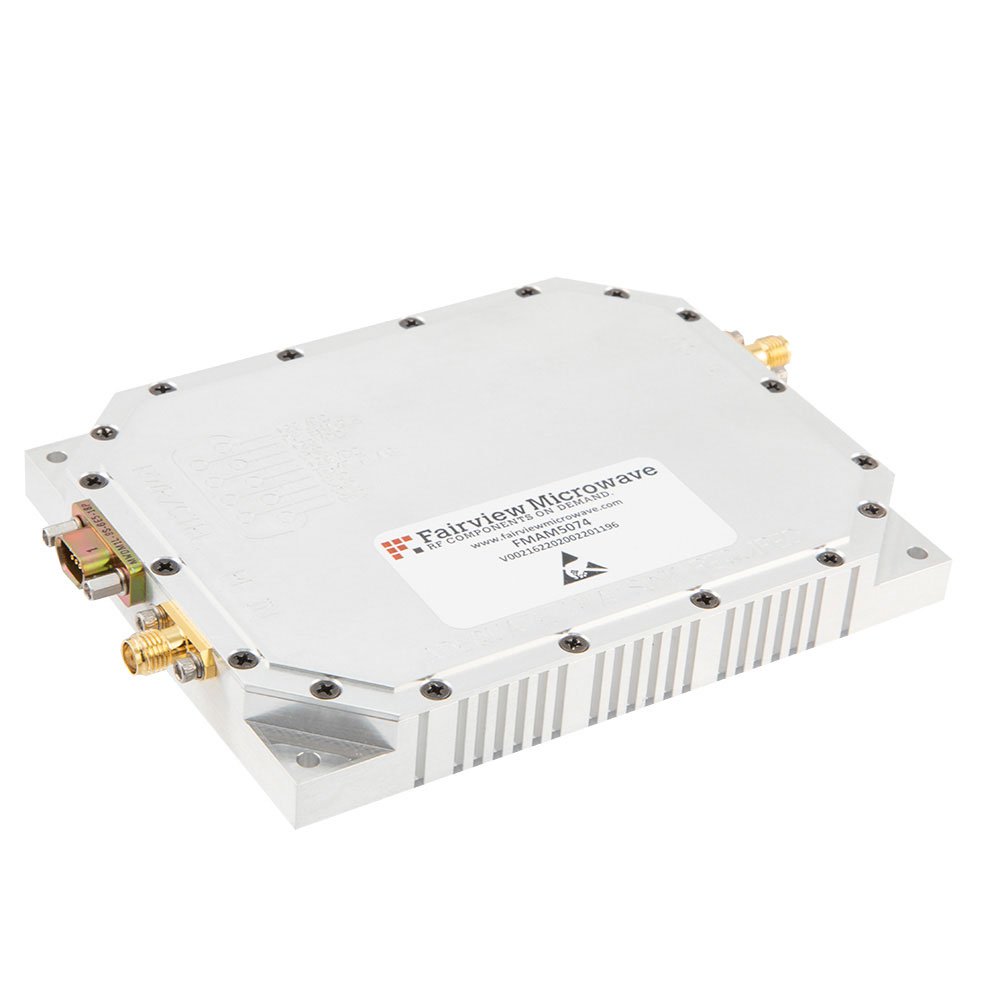

The FMAM5074 is a GaN power amplifier module from Fairview Microwave, operating in the S-Band frequency range of 2000 to 2600 MHz. It delivers 30W output power with 45% efficiency and Class AB operation at 28V. The unit features SMA connectors for RF interfacing.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power performance
• Provides 30W output power capability within the S-Band spectrum
• Operates with 45% drain efficiency under Class AB bias conditions

Applications

• S-Band radar systems
• Electronic warfare applications
• Military communication infrastructure

Procurement Notes

Verify specific revision status and connector orientation before ordering. Confirm thermal management requirements as the module requires adequate heatsinking for sustained 30W operation. Ensure supply voltage stability at 28V to maintain specified efficiency levels.

Selection Notes

Select this model for applications requiring high linearity and power density in the 2-2.6 GHz range. Compare against lower-power alternatives if system constraints limit available DC power or cooling capacity. Validate interface compatibility with existing SMA-based test setups.

Part Context

This component belongs to Fairview Microwave's catalog of integrated RF modules designed for demanding environments. It combines active semiconductor devices with passive matching networks into a single shielded enclosure, simplifying integration compared to discrete amplifier designs.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model.
