Product Detailed Parameters
- Description：POWER AMP 800MHZ-2GHZ P1DB SMA
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：800MHz ~ 2GHz
- P1dB：33dBm
- Gain：60dB
- Noise Figure：-
- RF Type：General Purpose
- Voltage - Supply：27V ~ 30V
- Current - Supply：3A
- Test Frequency：800MHz
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

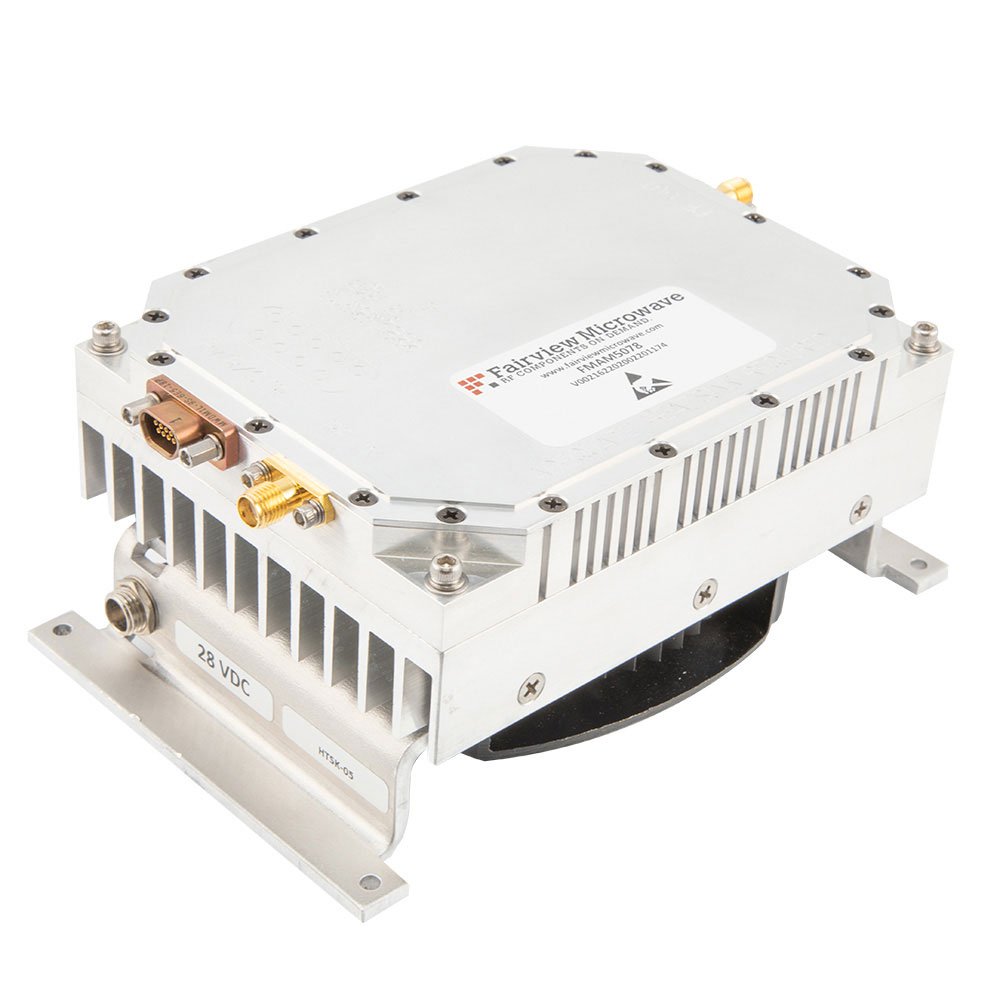

The FMAM5078 is an L-Band GaN power amplifier module from Fairview Microwave, operating from 800 MHz to 2 GHz. It delivers 45W output power with 60 dB gain and 45% efficiency at Class AB bias. The unit requires a 27 V to 30 V supply and draws 3 A current. It features SMA connectors and includes an integrated heatsink with a cooling fan for thermal management.
Feature Summary
- Utilizes Gallium Nitride (GaN) technology for high-power performance
- Includes integrated heatsink and active cooling fan
- Operates in Class AB mode for balanced efficiency and linearity
Applications
- L-Band radar systems
- Military communication transmitters
- Electronic warfare equipment
Procurement Notes
Verify the specific datasheet revision and mechanical dimensions before integration. Confirm that the required cooling infrastructure supports the integrated fan's airflow specifications. Ensure the power supply meets the 27-30V range and 3A current capacity. Check for any regional distribution restrictions or lead time variations directly with Fairview Microwave or authorized distributors.
Selection Notes
Select this model when high output power and wide bandwidth are required in the L-Band spectrum. The integrated cooling solution simplifies thermal design compared to passive-only amplifiers. Consider the physical size and weight implications of the built-in fan assembly. Verify connector compatibility and impedance matching requirements for the specific system interface.
Part Context
Fairview Microwave produces specialized RF modules for demanding environments. The FMAM series focuses on robust power amplification using advanced semiconductor materials. This component represents their approach to integrating thermal management directly into the RF package for reliability.
Replacement Considerations
No public substitute part numbers are confirmed for the FMAM5078. Evaluate other Fairview Microwave L-Band amplifiers if exact specifications cannot be met. Cross-reference technical parameters carefully as internal architectures may differ significantly.
