FMAM5079

Overview

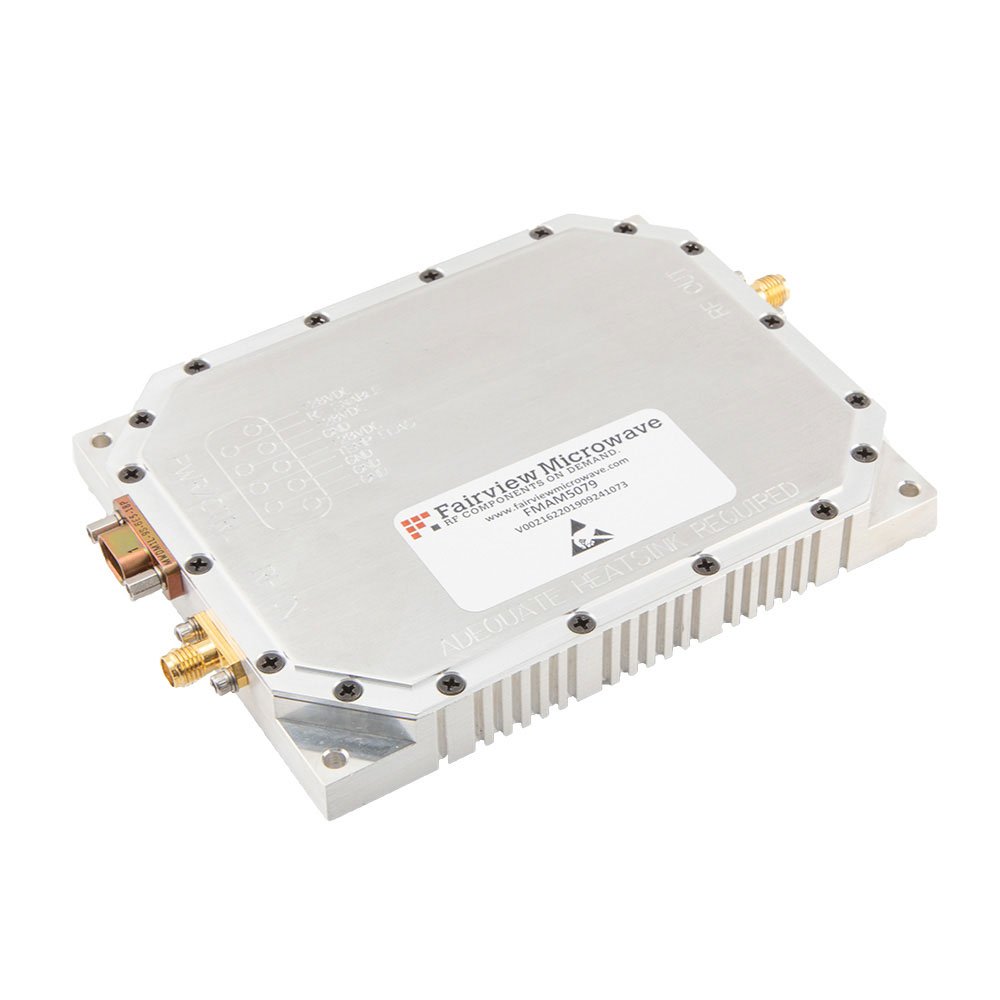

The FMAM5079 is a C-Band GaN power amplifier module from Fairview Microwave, operating between 4.4 GHz and 4.9 GHz. It delivers 20W output power with 48 dB gain at a Class AB bias point. The unit requires a supply voltage of 27 V to 32 V and draws 3.6 A current. It achieves 30% efficiency and features SMA connectors in a chassis-mountable package.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power RF amplification
• Provides high gain performance suitable for signal boosting applications
• Designed with SMA connectors for standardized interface connectivity

Applications

• C-Band communication systems
• RF signal transmission chains
• Military and aerospace radar subsystems

Procurement Notes

Verify the specific datasheet revision and electrical test reports directly with Fairview Microwave or authorized distributors before integration. Confirm that the 27 V to 32 V supply requirements align with your system's power architecture. Ensure thermal management solutions are adequate for the 20W output power dissipation. Check for any export control classifications or compliance certifications required for your region. Validate connector compatibility and mounting dimensions against your chassis design specifications.

Selection Notes

Select this component when a C-Band solution with high linearity and power output is required. The GaN technology offers superior performance compared to traditional silicon-based amplifiers in this frequency range. Consider the 48 dB gain and 30% efficiency metrics for system budget calculations. The chassis mount form factor simplifies integration into larger RF assemblies. Evaluate the SMA interface compatibility with existing test or production equipment.

Part Context

This part belongs to Fairview Microwave's RF Amplifier category, specifically within wireless and RF integrated circuits. It is designed as a general-purpose power amplifier module. The product utilizes a bag packaging method for shipping and handling. It represents a specialized solution for high-frequency applications requiring robust power amplification capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
