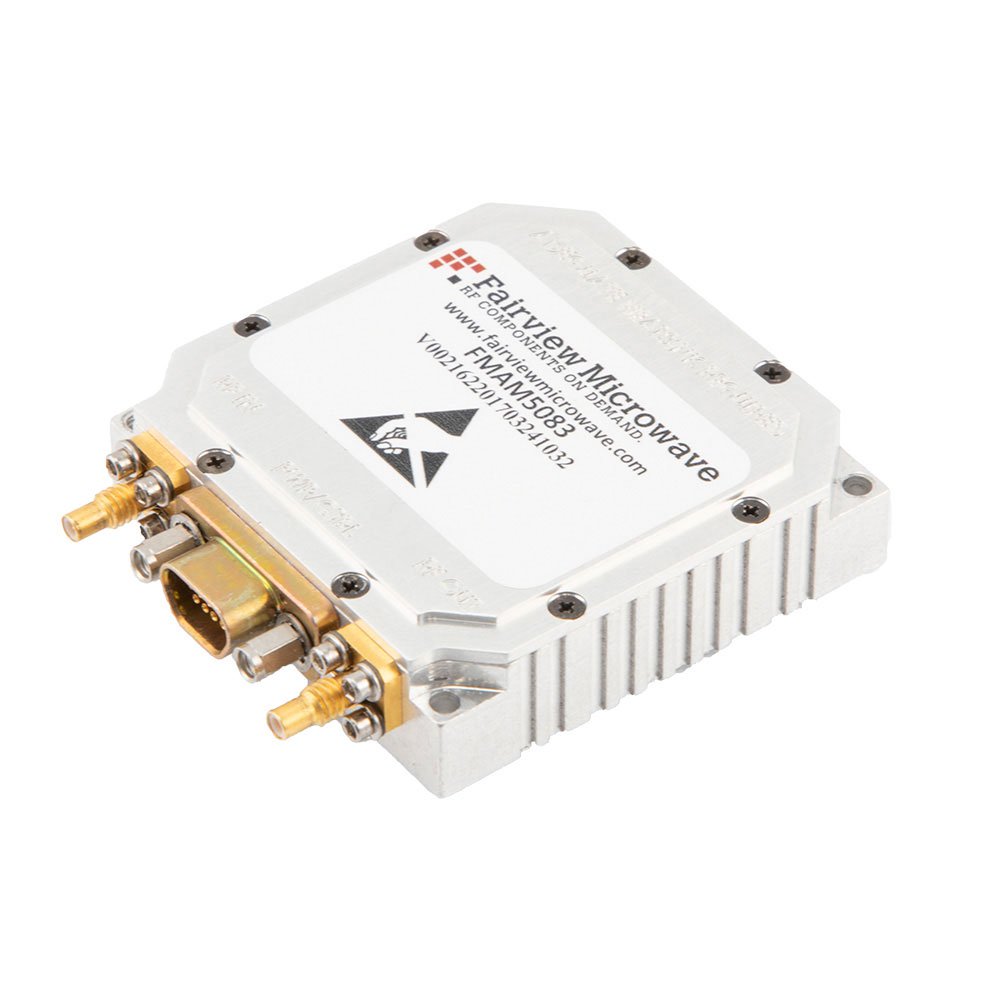

FMAM5083
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：POWER AMP 1000MHZ-2.5GHZ P1DB SM
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：1GHz ~ 2.5GHz
- P1dB：25dBm
- Gain：45dB
- Noise Figure：-
- RF Type：General Purpose
- Voltage - Supply：26V ~ 30V
- Current - Supply：650mA
- Test Frequency：1GHz
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview
The FMAM5083 is a GaN power amplifier designed for L and S band applications, operating from 1000 MHz to 2500 MHz. It delivers an output power of 7W with a gain of 45 dB. The device requires a supply voltage between 26 V and 30 V and draws a current of 650 mA. Key performance metrics include 35% efficiency and Class AB operation. It features an SMA connector interface.
Feature Summary
- Utilizes Gallium Nitride (GaN) technology for high-performance amplification
- Provides 45 dB gain across the 1000 to 2500 MHz frequency range
- Operates in Class AB mode with 35% efficiency
Applications
- L and S band communication systems
- RF signal amplification in wireless infrastructure
- Test and measurement equipment requiring stable power amplification
Procurement Notes
Verify the specific datasheet version for the FMAM5083 to confirm exact electrical tolerances and thermal requirements. Ensure that the supply voltage remains within the 26 V to 30 V range during operation. Confirm compatibility with SMA connectors for system integration. Check for any updated compliance certifications or regional restrictions before finalizing procurement plans.
Selection Notes
Select the FMAM5083 when a compact, high-efficiency power amplifier is needed for L and S bands. Its GaN construction supports robust performance compared to traditional silicon devices. Consider the 45 dB gain and 7W output power as primary selection criteria for applications demanding significant signal boosting within the specified frequency limits.
Part Context
Fairview Microwave manufactures the FMAM5083 as part of its RF amplifier portfolio. This component targets professional markets requiring reliable microwave amplification. The manufacturer focuses on providing specialized solutions for complex RF environments, ensuring consistent quality across their product lines.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMAM5083. Users should consult Fairview Microwave directly for potential alternatives or upgrades.
