FMAM5085

Overview

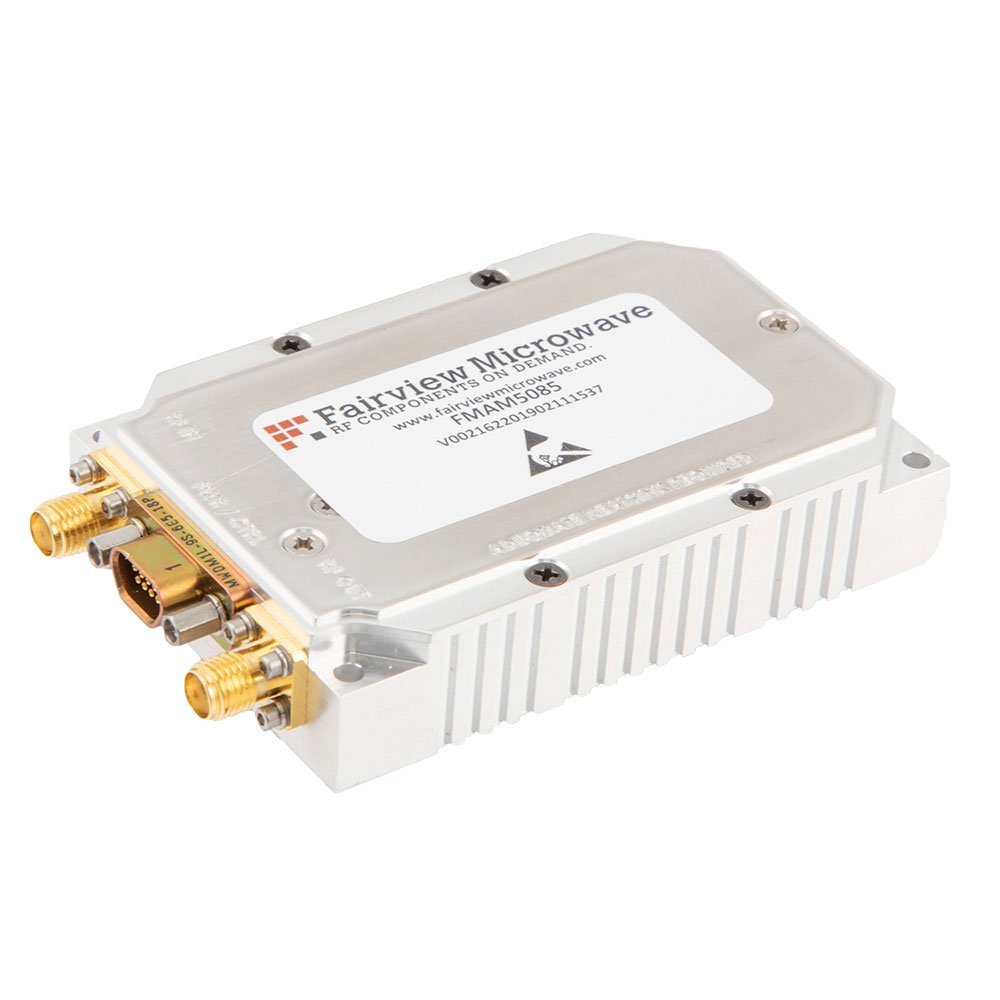

The FMAM5085 is a GaN power amplifier manufactured by Fairview Microwave, designed for operation within the 1 GHz to 2.5 GHz frequency range. It features an SMA connector interface and requires an operating supply voltage between 11 V and 32 V. The device provides a gain of 13.6 dB with an operating supply current of 2.2 A.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power performance
• Operates across the 1 GHz to 2.5 GHz frequency spectrum
• Includes SMA connector interface

Applications

• RF signal amplification in wireless communication systems
• Test and measurement equipment applications
• Broadband RF infrastructure components

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the FMAM5085 designation and includes original manufacturer documentation. Inspect packaging integrity upon receipt to ensure protection against electrostatic discharge and physical damage during transit.

Selection Notes

Select this model when a wideband power amplifier is required for frequencies between 1 GHz and 2.5 GHz. Consider the 13.6 dB gain specification and the need for a 11 V to 32 V power supply. Ensure system compatibility with SMA connectors and verify thermal management requirements for continuous operation at specified current levels.

Part Context

This component belongs to the Fairview Microwave RF amplifier product line, specifically utilizing GaN technology for enhanced power handling capabilities. It serves as a broadband solution for applications requiring stable amplification across a significant portion of the UHF and lower SHF bands.
