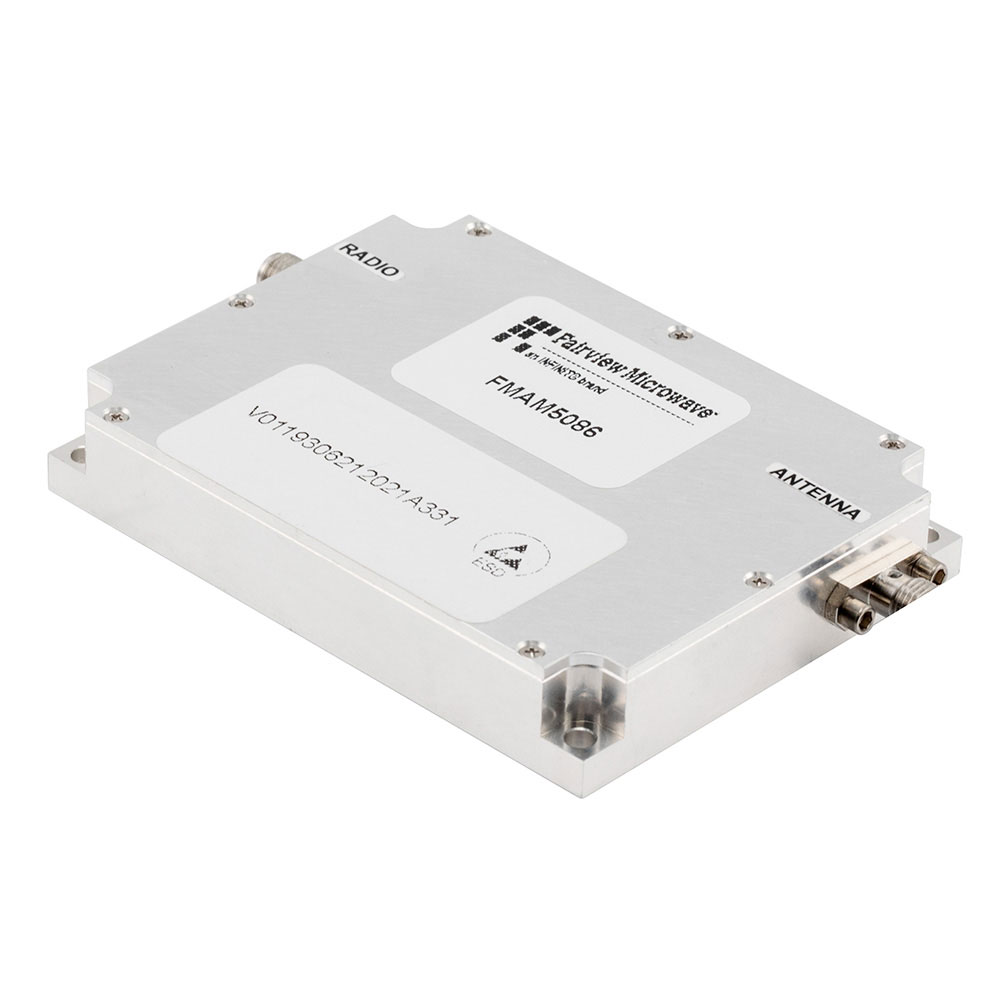

FMAM5086

$7,293.00

Description：POWER AMP 30MHZ-2.7GHZ P1DB SMA
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:61b4be5167da Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：POWER AMP 30MHZ-2.7GHZ P1DB SMA
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：30MHz ~ 2.7GHz
P1dB：-
Gain：35dB
Noise Figure：-
RF Type：General Purpose
Voltage - Supply：12V ~ 30V
Current - Supply：1.4A
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAM5086

Overview

The FMAM5086 is a high-power GaN amplifier manufactured by Fairview Microwave, designed for operation from 30 MHz to 2700 MHz. It delivers an output power of 8W Psat with a gain of 35 dB in Class AB configuration. The device operates on a 12V supply and features SMA connectors.

Feature Summary

Utilizes Gallium Nitride technology for high-power performance
Provides 8W saturated output power across the frequency range
Operates in Class AB mode for efficient signal amplification

Applications

RF signal generation systems
Test and measurement equipment
Broadband communication infrastructure

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm technical specifications against the official datasheet prior to integration. Ensure environmental conditions match operational requirements for reliable performance.

Selection Notes

Select this model for applications requiring high output power and wide bandwidth. Consider thermal management due to high power dissipation. Verify impedance matching and connector compatibility with system interfaces before procurement.

Part Context

This RF amplifier belongs to the Fairview Microwave portfolio of high-performance components. It serves as a critical element in systems demanding robust signal amplification across broad frequency spectrums using advanced semiconductor materials.

Replacement Considerations

No public confirmed substitute part numbers are available. Evaluate alternative models based on matching frequency range, output power, and connector type specifications.
