FMAM5101F

$2,098.10

Description：TEMP COMP AMP SMA 0.5-4 GHZ 21DB
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:7e8161a3f694 Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TEMP COMP AMP SMA 0.5-4 GHZ 21DB
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：500MHz ~ 4GHz
P1dB：21dBm
Gain：39dB
Noise Figure：3dB
RF Type：General Purpose
Voltage - Supply：12V ~ 15V
Current - Supply：350mA
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAM5101F

Overview

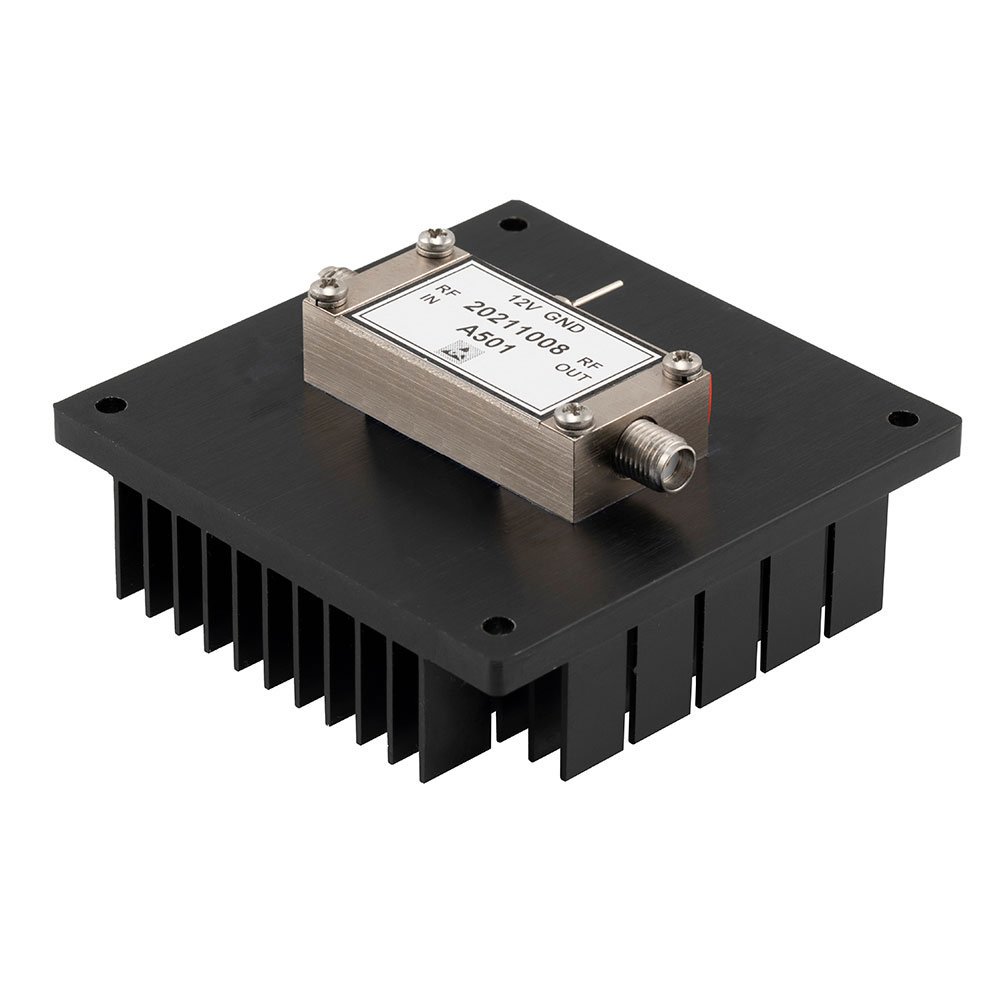

The FMAM5101F is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 0.5 GHz to 4 GHz and utilizes GaAs technology. The device provides a minimum gain of 35 dB with a typical gain of 39 dB. It features a noise figure of 3 dB and a P1dB compression point of 21 dBm. Power requirements include a voltage range of 12 V to 15 V and a current draw of 350 mA. The component employs SMA connectors for input and output interfaces.

Feature Summary

Temperature compensation ensures stable performance across varying thermal conditions
Low noise design minimizes signal degradation in sensitive RF chains
Integrated heatsink facilitates thermal management during operation

Applications

RF receiver front-end stages
Test and measurement instrumentation
Wireless communication systems

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the SMA connector type and heatsink mounting requirements align with the system mechanical design. Ensure power supply specifications match the required 12 V to 15 V range and 350 mA current capacity. Check regional availability as distribution may be restricted in certain areas.

Selection Notes

Select this component when a low noise amplifier is required for frequencies between 0.5 GHz and 4 GHz. Consider the 3 dB noise figure and 35 dB minimum gain for signal integrity. Verify compatibility with GaAs technology constraints. Ensure the SMA interface fits the board layout and that adequate space is available for the integrated heatsink solution.

Part Context

This part belongs to the Fairview Microwave RF amplifier series, specifically designed as a low noise amplifier. It is distinct from higher frequency models like the FMAM5105F or high-power LDMOS amplifiers such as the FMAM5031F. The FMAM5101F targets lower microwave bands compared to other family members.
