FMAM5104F

Overview

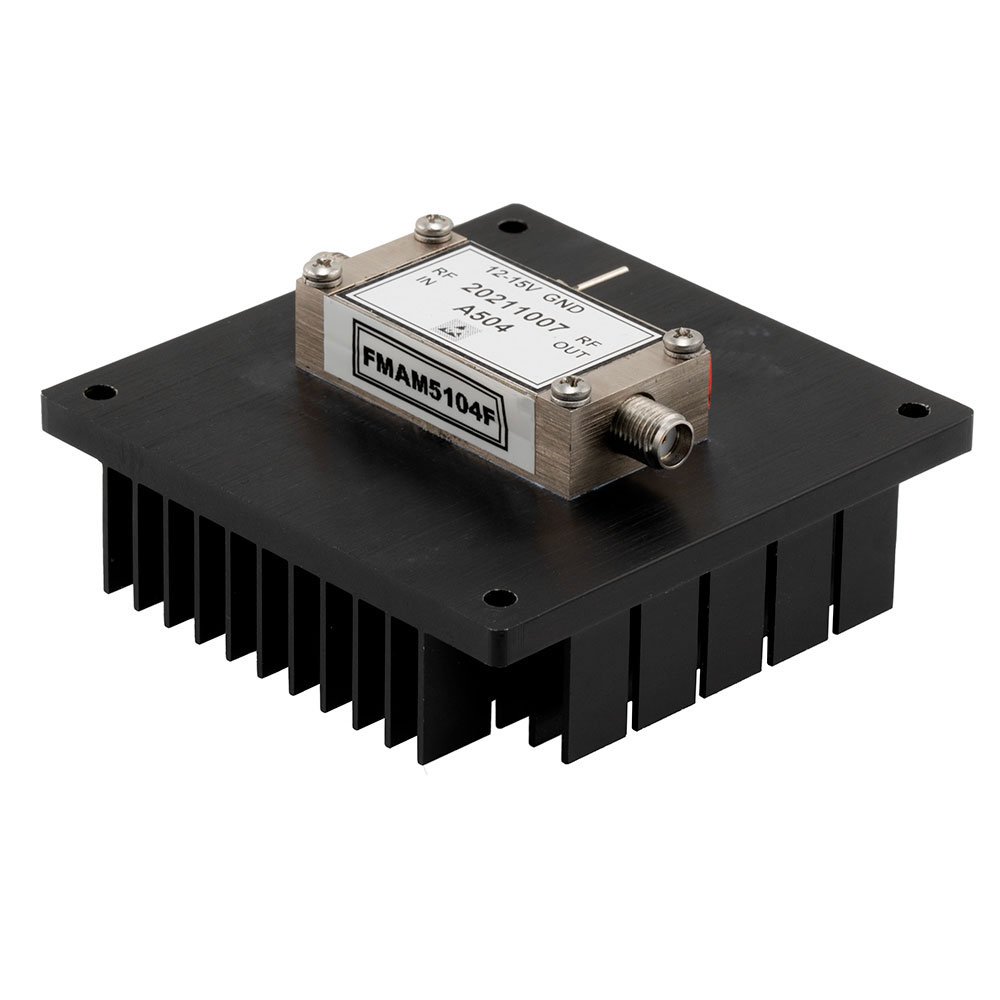

The FMAM5104F is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 8 GHz and utilizes GaAs technology. The device provides a minimum gain of 35 dB and achieves a noise figure of 3.5 dB. Key performance metrics include a P1dB compression point of 22 dBm and an IP3 of 39 dB. Electrical requirements specify a supply voltage of 12 V to 15 V with a current draw of 350 mA. The unit features SMA connectors and includes an integrated heatsink for thermal management.

Feature Summary

• Temperature compensation ensures stable performance across varying environmental conditions
• Integrated heatsink assembly facilitates efficient thermal dissipation
• Broadband operation covers the 2 GHz to 8 GHz spectrum
• Low noise design optimizes signal integrity for sensitive applications

Applications

• Wireless communication systems requiring broadband amplification
• Test and measurement equipment utilizing RF signals
• Instrumentation operating in high-frequency ranges

Procurement Notes

Verify component authenticity through official Fairview Microwave channels or authorized distributors. Confirm that the specific revision matches project requirements, particularly regarding the integrated heatsink configuration and SMA connector orientation. Ensure electrical specifications align with system power budgets and thermal constraints before integration.

Selection Notes

Select this model when broadband coverage from 2 GHz to 8 GHz is required alongside low noise characteristics. The integrated heatsink makes it suitable for environments where active cooling is not feasible. Compare against other Fairview Microwave amplifiers if higher output power or different frequency bands are needed, noting that this unit prioritizes gain and noise performance over maximum power handling.

Part Context

This component belongs to the Fairview Microwave RF amplifier portfolio, specifically designed for broadband applications. It represents a specialized solution for engineers needing reliable amplification without external thermal management components. The product line focuses on providing robust performance in compact form factors for professional RF engineering tasks.

Replacement Considerations

No public confirmed substitute part numbers are available. Evaluate alternative models within the same manufacturer's catalog based on frequency range and gain requirements.
