FMAM5105F

Overview

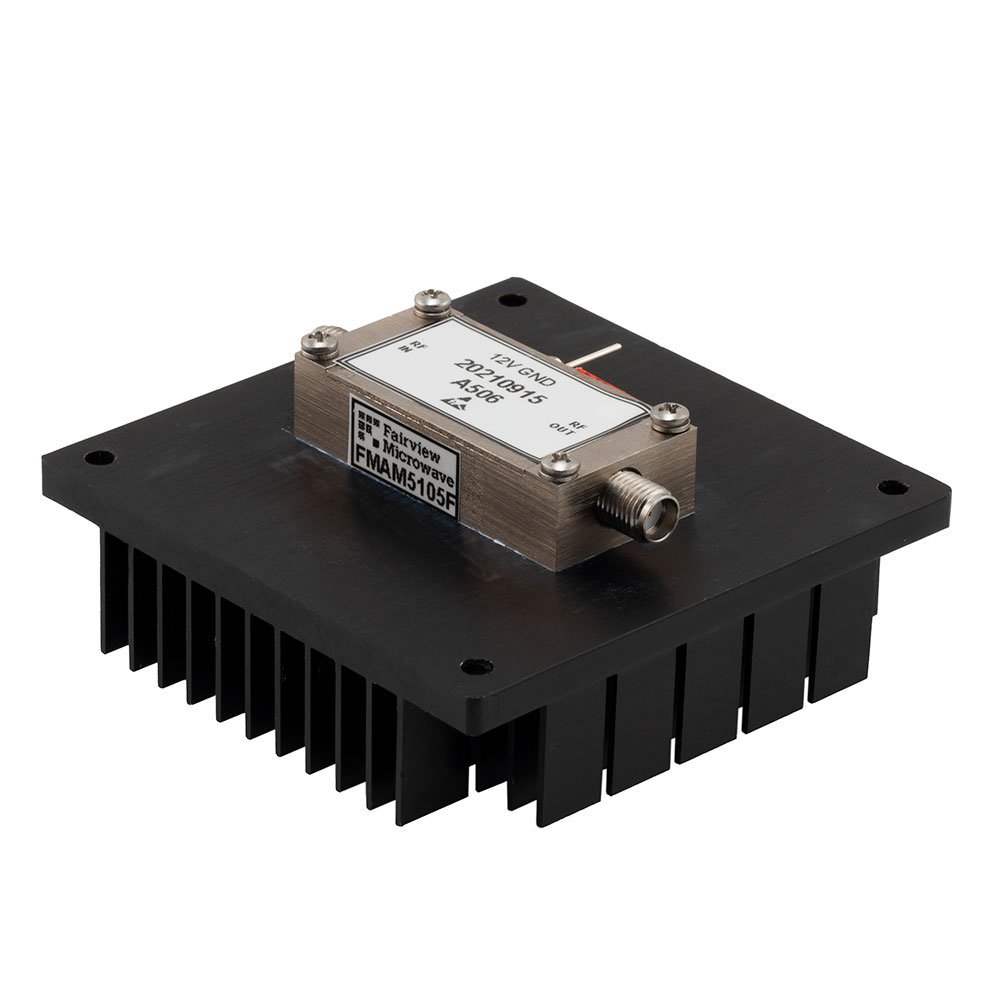

The FMAM5105F is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 4 GHz to 12 GHz and utilizes GaAs technology. The device provides a minimum gain of 35 dB with a typical gain of 39 dB and a noise figure of 4 dB. It features a 22 dBm P1dB compression point and requires an operating supply voltage between 12 V and 15 V, drawing 350 mA of current. The component is designed for SMD/SMT installation in an SMA package and functions reliably across temperatures from -55°C to +85°C.

Feature Summary

• Temperature compensated design ensures stable performance across varying thermal conditions
• High linearity output capability with 22 dBm P1dB compression point
• Integrated heatsink construction for effective thermal management
• Low noise figure specification suitable for sensitive signal reception

Applications

• Satellite communication systems requiring high-frequency amplification
• Point-to-point microwave radio links
• Test and measurement instrumentation equipment
• Radar system front-end modules

Procurement Notes

Verify the specific datasheet version provided by Fairview Microwave to confirm all electrical parameters match your system requirements. Ensure that the SMA interface orientation and heatsink mounting dimensions are compatible with your PCB layout. Confirm that the power supply voltage range of 12 V to 15 V aligns with your available power rails. Check for any regional distribution restrictions or lead time variations directly with authorized suppliers before finalizing procurement plans.

Selection Notes

Select this component when a wideband low noise amplifier is required for frequencies between 4 GHz and 12 GHz. The temperature compensation feature makes it suitable for environments with significant thermal fluctuations. Consider the 35 dB minimum gain and 4 dB noise figure for applications prioritizing signal integrity over maximum sensitivity. The integrated heatsink simplifies thermal design compared to bare die solutions.

Part Context

This model belongs to Fairview Microwave's RF amplifier series, specifically designed for high-frequency applications. It complements other models like the FMAM5009 and FMAM5101F, which cover different frequency ranges and power levels. The FMAM5105F fills the gap in the portfolio for mid-band microwave operations, offering a balance of gain, noise performance, and thermal stability for professional RF engineering tasks.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific component. Direct replacements may require careful evaluation of pin compatibility, thermal characteristics, and electrical performance matching to ensure system continuity without redesign.
