FMAM5106

Overview

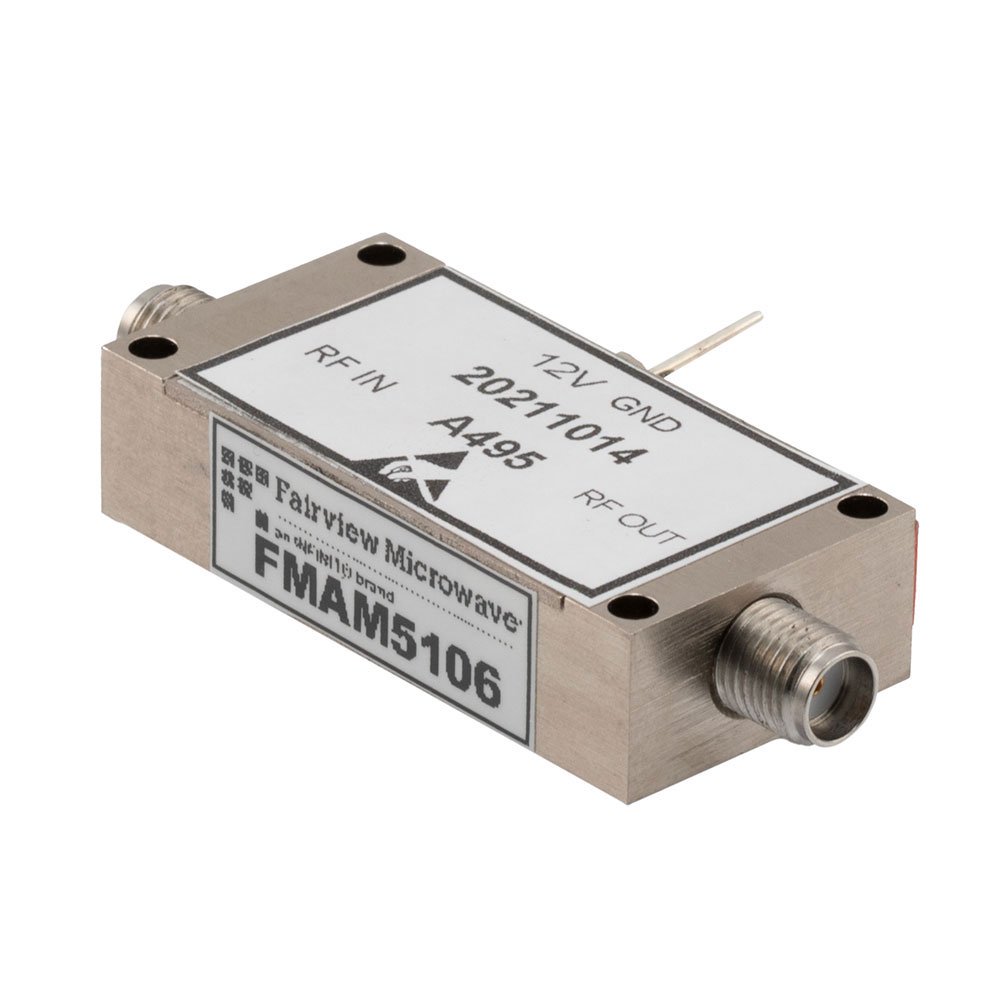

The FMAM5106 is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 18 GHz and utilizes GaAs technology. The device provides a minimum gain of 35 dB with a typical gain of 39 dB. It features a noise figure of 5.5 dB and a P1dB compression point of 22 dBm. Power requirements include a voltage range of 12 V to 15 V and a current draw of 550 mA. The component is housed in an SMA package and supports an operating temperature range from -55 C to +85 C.

Feature Summary

• Temperature compensation ensures stable performance across varying thermal conditions
• Wideband operation covers frequencies from 2 GHz to 18 GHz
• Low noise figure design optimizes signal integrity for sensitive applications

Applications

• Wireless communication systems requiring wideband amplification
• Test and measurement equipment operating in the microwave spectrum
• Military and aerospace radar systems

Procurement Notes

Verify the specific datasheet version for the FMAM5106 to confirm exact electrical tolerances and pinout configurations before integration. Ensure that the power supply meets the specified voltage and current requirements to maintain optimal performance. Check for any regional distribution restrictions or availability limitations through authorized channels prior to finalizing procurement plans.

Selection Notes

Select this component when a wide bandwidth covering 2 GHz to 18 GHz is required alongside low noise characteristics. The temperature compensation feature makes it suitable for environments with significant thermal fluctuations. Compare the 39 dB typical gain and 5.5 dB noise figure against other options to ensure it meets system sensitivity and linearity requirements.

Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically designed as a low noise amplifier. It is distinct from other models in the lineup by its specific temperature-compensated design and wide frequency coverage up to 18 GHz. The use of GaAs technology supports its high-frequency performance capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMAM5106.
