FMAM5106F

Overview

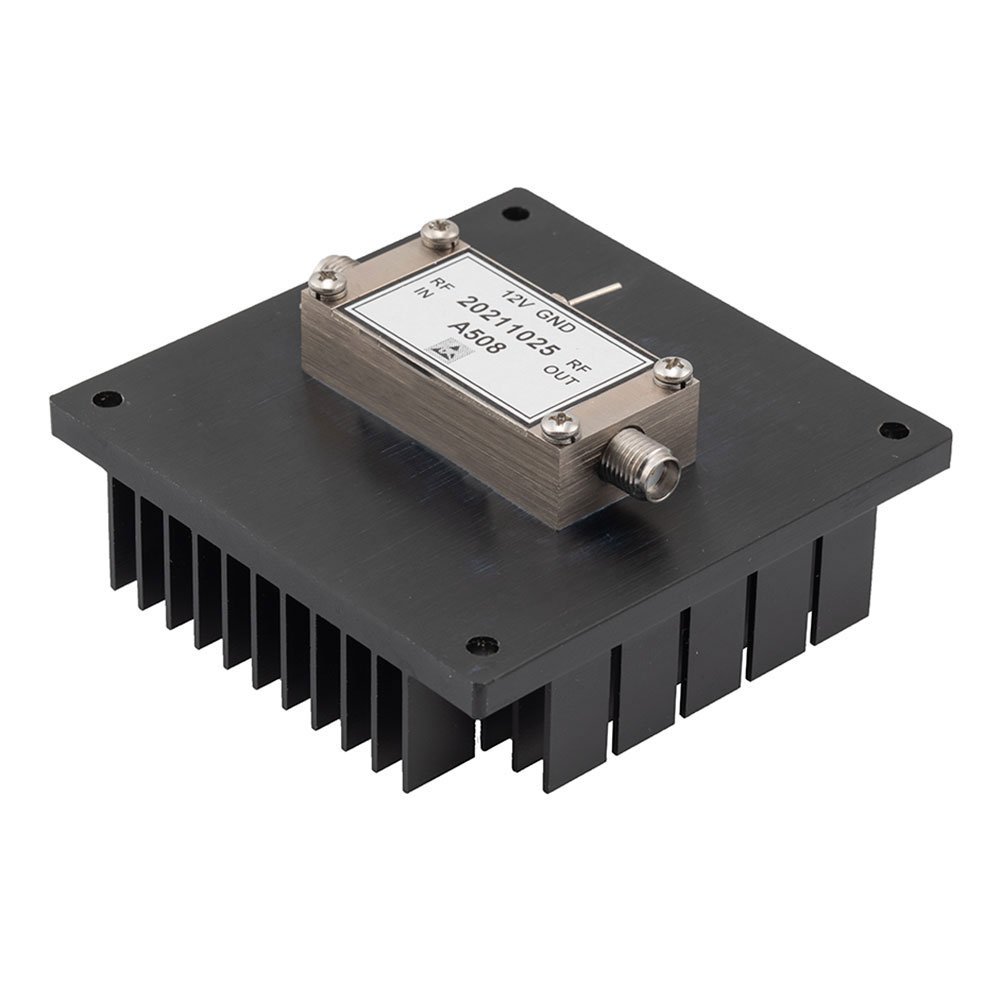

The FMAM5106F is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 18 GHz and utilizes GaAs technology. The device provides a minimum gain of 35 dB, with typical performance reaching 39 dB. Key electrical specifications include a noise figure of 5.5 dB, a P1dB compression point of 22 dBm, and an operating supply voltage between 12 V and 15 V at 550 mA current draw. It features SMA connectors and is designed for operation in temperatures from -55°C to +85°C.

Feature Summary

• Temperature compensated design ensures stable performance across varying thermal conditions
• Low noise architecture optimized for sensitive signal reception applications
• Integrated heatsink facilitates thermal management during continuous operation

Applications

• Wideband communication systems requiring low noise amplification
• Test and measurement equipment operating in the microwave spectrum
• Electronic warfare and signal intelligence receivers

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific unit matches the FMAM5106F designation and includes the required SMA interface and heatsink configuration. Review the official datasheet for handling precautions related to GaAs technology and electrostatic discharge sensitivity before integration into final assemblies.

Selection Notes

Select this component when a wide bandwidth covering 2 GHz to 18 GHz is required alongside low noise characteristics. The temperature compensation feature makes it suitable for environments with significant thermal fluctuations. Ensure the system power supply can provide the specified 12 V to 15 V range and that mechanical constraints accommodate the SMA connector and attached heatsink dimensions.

Part Context

This module belongs to the Fairview Microwave RF Amplifier category, specifically designed as a low noise amplifier module. It represents a specialized solution for high-frequency applications where signal integrity and thermal stability are critical. The use of GaAs technology supports its performance in the microwave frequency range.

Replacement Considerations

No publicly confirmed substitute part numbers are available for this specific model.
