FMAM5108

Overview

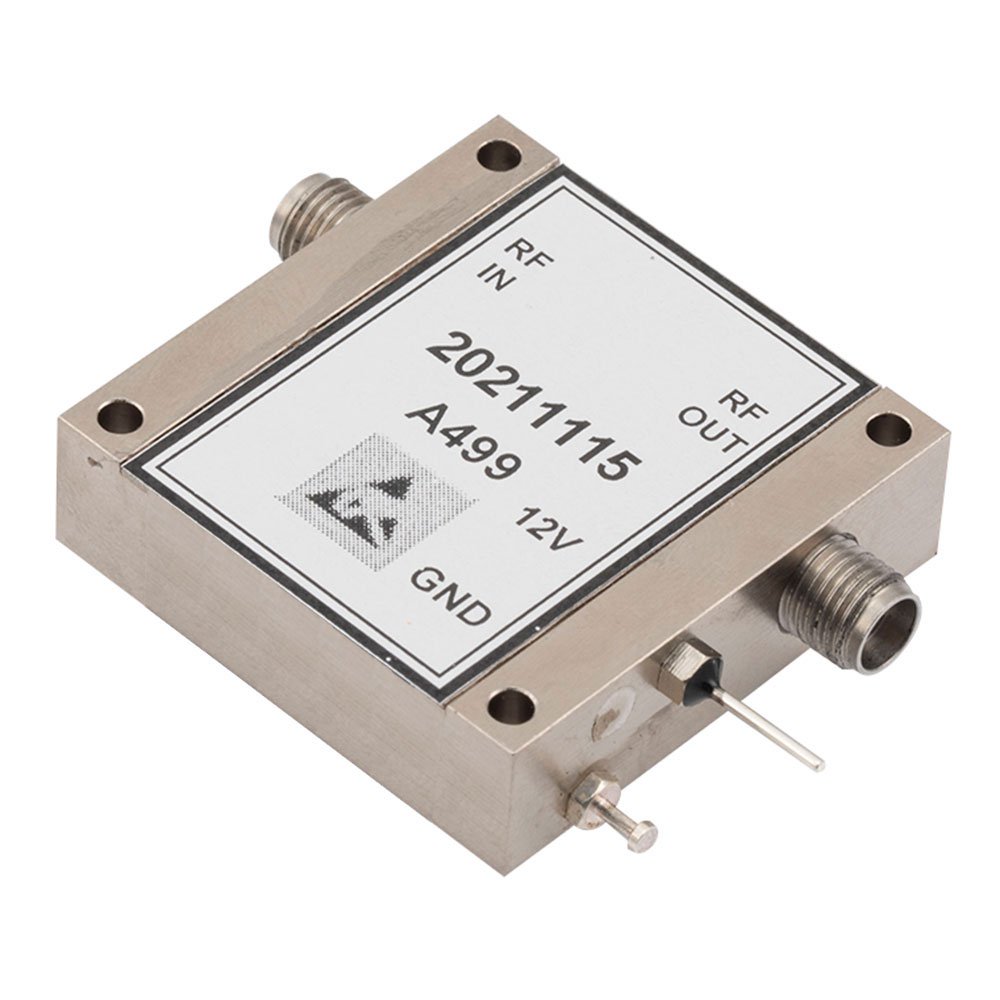

The FMAM5108 is a temperature-compensated low noise amplifier manufactured by Fairview Microwave, designed for operation within the 26.5 GHz to 40 GHz frequency range. Constructed using GaAs technology, this RF amplifier delivers a typical gain of 39 dB with a minimum specification of 35 dB. It features a noise figure of approximately 7 dB and an input P1dB compression point of 18 dBm. The device operates on a supply voltage between 12 V and 15 V, drawing 400 mA of current. It utilizes SMA connectors and includes a heatsink for thermal management, functioning reliably across temperatures from -55°C to +85°C.

Feature Summary

• Temperature compensation ensures stable performance across varying environmental conditions
• High gain capability suitable for sensitive signal amplification in millimeter-wave applications
• Integrated heatsink design supports thermal dissipation during continuous operation

Applications

• Millimeter-wave communication systems requiring low noise amplification
• Test and measurement equipment operating in the E-band spectrum
• Satellite ground station uplink and downlink signal conditioning

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the specific unit matches the FMAM5108 designation and includes the required SMA interface and heatsink configuration. Ensure operational parameters align with system requirements regarding supply voltage and thermal constraints before integration.

Selection Notes

Select this amplifier when designing circuits for the 26.5 GHz to 40 GHz band requiring high gain and low noise characteristics. Consider the 18 dBm P1dB limit for linearity requirements and ensure adequate power supply stability within the 12 V to 15 V range. The integrated heatsink simplifies thermal management compared to bare die solutions.

Part Context

This component belongs to Fairview Microwave's portfolio of radio frequency amplifiers, specifically targeting high-frequency wireless applications. It complements other low noise amplifiers in their lineup by offering specialized temperature compensation and millimeter-wave performance capabilities for demanding electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Evaluate alternative models based on matching frequency range, gain specifications, and connector type compatibility.
