FMAM5108F

Overview

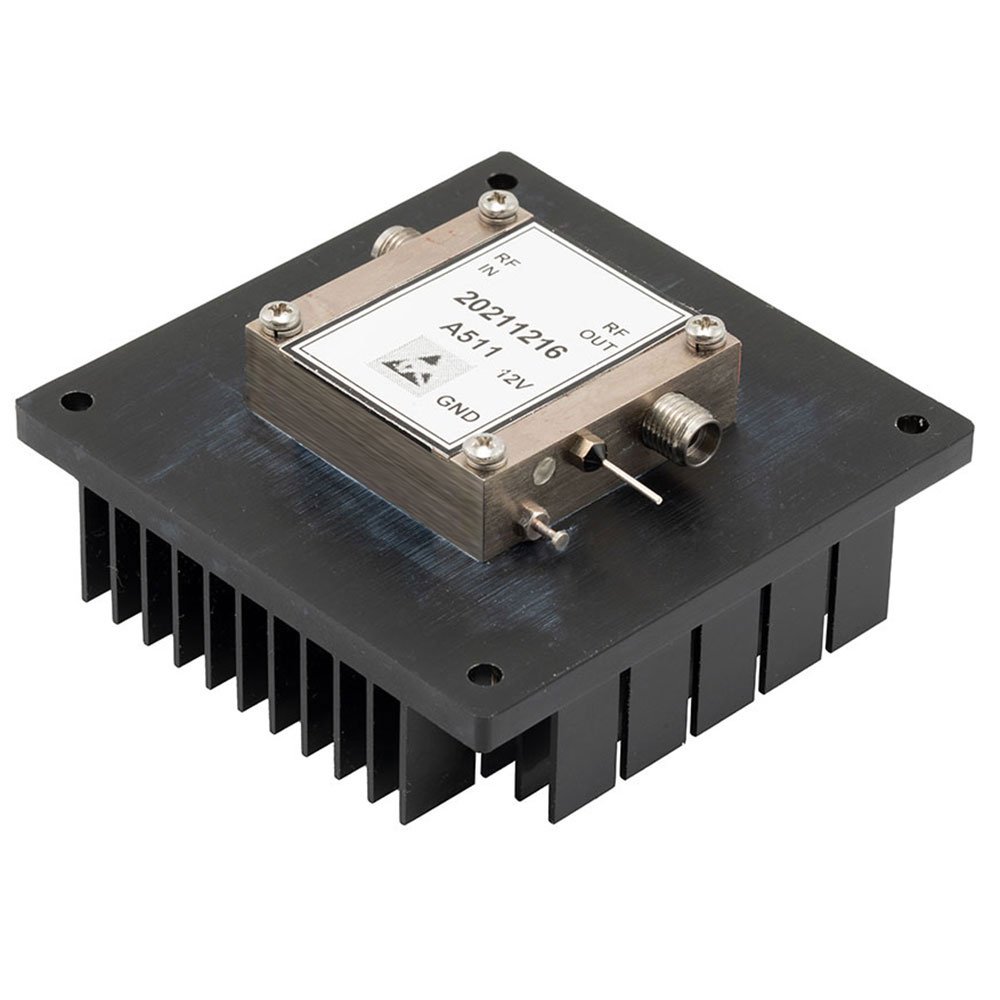

The FMAM5108F is a temperature-compensated low noise amplifier manufactured by Fairview Microwave. It operates within the frequency range of 26.5 GHz to 40 GHz and utilizes GaAs technology. The device provides a minimum gain of 35 dB, with typical specifications reaching 39 dB. It features a noise figure of 6.8 dB and an output P1dB compression point of 22 dBm. Power requirements include a supply voltage between 12 V and 15 V, drawing 400 mA of current. The unit is housed in an SMA package and supports operating temperatures from -55°C to +85°C.

Feature Summary

• Temperature compensated design for stable performance across varying thermal conditions
• Low noise figure specification suitable for sensitive signal reception applications
• High gain capability within the millimeter-wave frequency spectrum

Applications

• Millimeter-wave communication systems
• Test and measurement instrumentation
• Satellite ground station equipment

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the received unit matches the specific model designation and technical parameters documented in the official datasheet. Ensure proper handling procedures are followed due to the sensitivity of RF components. Check for any specific storage or shipping restrictions outlined in the product documentation to maintain operational integrity upon installation.

Selection Notes

Select this component when designing systems requiring amplification in the 26.5 GHz to 40 GHz band. Consider the 6.8 dB noise figure for link budget calculations involving weak signals. Evaluate the 12 V to 15 V power supply requirement against available system resources. Assess the SMA interface compatibility with existing circuit board layouts. Verify that the thermal management strategy accommodates the specified operating temperature range and power dissipation characteristics.

Part Context

This part belongs to the Fairview Microwave line of radio frequency amplifiers. It is categorized under wireless and RF integrated circuits. The manufacturer specializes in providing specialized RF and microwave components for industrial and commercial applications. This specific model represents a solution for high-frequency signal conditioning where low noise and consistent gain are critical requirements for system performance.

Replacement Considerations

Consult official Fairview Microwave documentation for verified substitute part numbers. Cross-reference technical specifications such as gain, noise figure, and frequency range to ensure functional equivalence. Do not assume interchangeability based on general category similarities without explicit manufacturer confirmation.
