FMAM5110

Overview

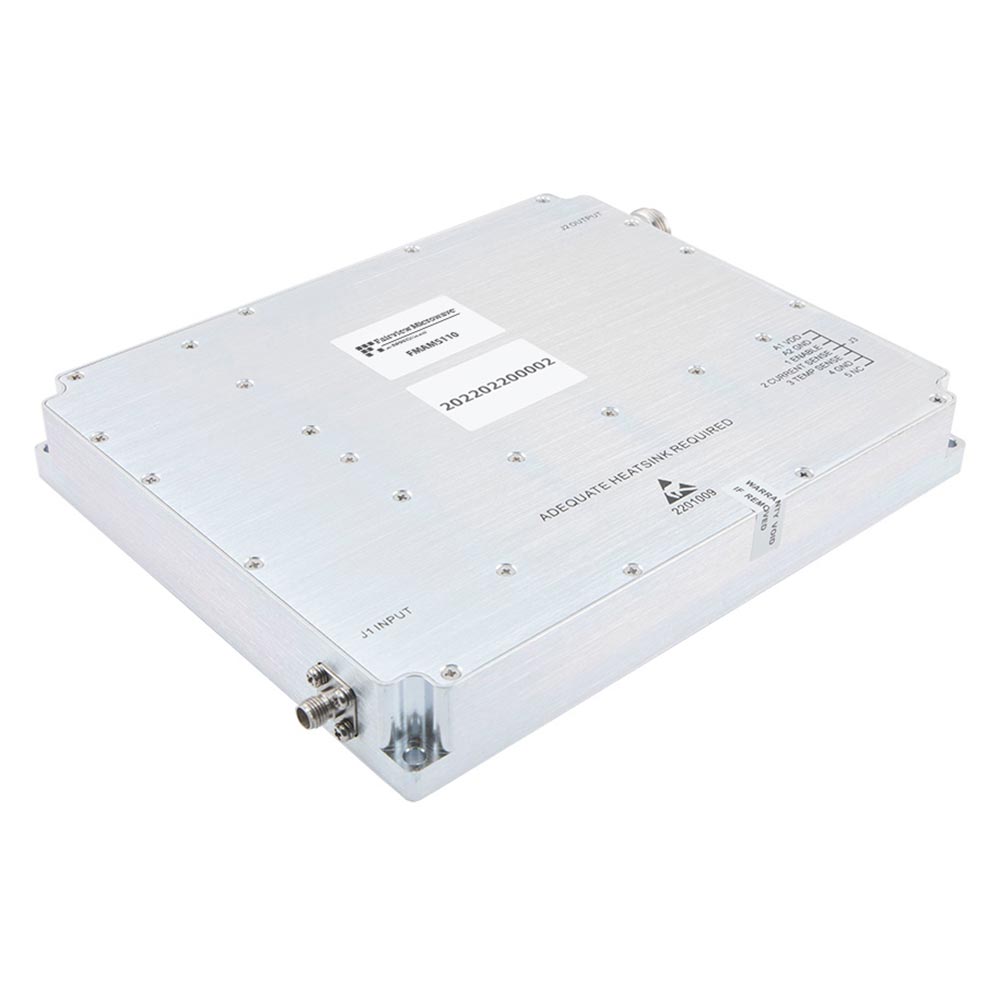

The FMAM5110 is a high-power GaN amplifier manufactured by Fairview Microwave, designed for operation within the 700 MHz to 2.7 GHz frequency range. It delivers a nominal gain of 47 dB with a saturated output power (Psat) of 50 Watts. The device requires a DC supply voltage between 24 V and 32 V and draws a current of 6 A during operation. It features SMA connectors for input and output interfaces.

Feature Summary

• Utilizes Gallium Nitride (GaN) technology for high-power performance
• Provides 47 dB gain across a wide frequency band
• Includes a heatsink for thermal management

Applications

• RF signal amplification in communication systems
• Test and measurement equipment
• Wireless infrastructure components

Procurement Notes

Verify the specific datasheet version and technical specifications directly from Fairview Microwave or authorized distributors before procurement. Confirm that the required DC power supply meets the 24 V to 32 V voltage range and 6 A current capacity. Ensure proper thermal management solutions are integrated, as the unit includes a heatsink but may require additional cooling depending on the application environment.

Selection Notes

Select the FMAM5110 when a high-gain, high-power solution is needed for frequencies up to 2.7 GHz. Compare its 50 W Psat and 47 dB gain against other models like the FMAM5120 if higher frequencies or different power levels are required. Ensure the system design accommodates the 6 A current draw and provides adequate heat dissipation for the included heatsink.

Part Context

The FMAM5110 belongs to Fairview Microwave's portfolio of RF amplifiers, specifically utilizing GaN technology for robust high-power applications. It is part of a series that includes similar models such as the FMAM5113 and FMAM5115, which share compatible accessories like the FMAMG5069F heatsink. This positioning highlights its role in demanding RF environments requiring reliable signal boosting.

Replacement Considerations

The FMAM5113 and FMAM5115 are related models within the same product family that utilize the same FMAMG5069F heatsink. Verify functional equivalence and connector compatibility before substituting these parts.
