FMAM63002

Overview

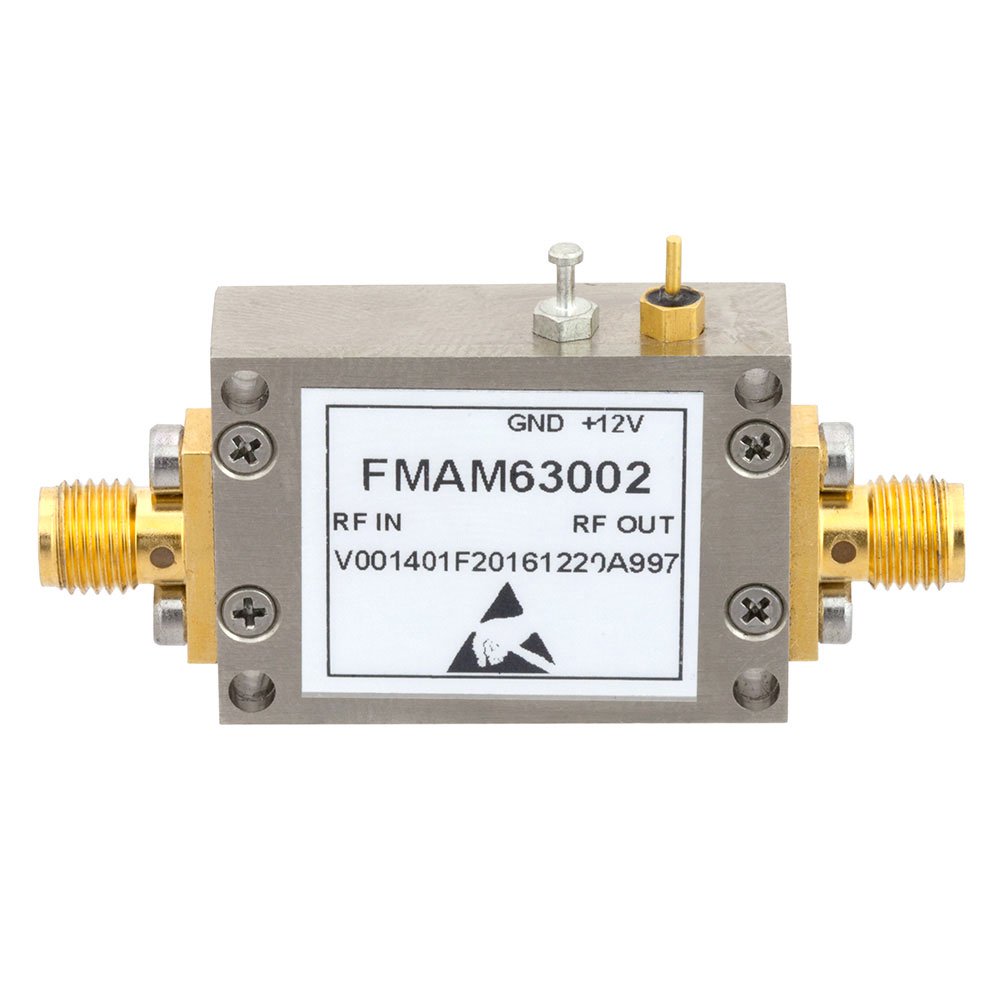

The FMAM63002 is a low noise amplifier manufactured by Fairview Microwave, designed for RF applications within the 30 MHz to 1.5 GHz frequency range. It provides a gain of 25 dB with a noise figure of 1.6 dB. The device features an input protection mechanism and delivers a P1dB of 22 dBm alongside an OIP3 of 39 dBm. Operating from a supply voltage of 10 V to 15 V, it draws a current of 150 mA. The unit utilizes SMA connectors and is packaged in a bag.

Feature Summary

• Input protection circuitry integrated into the low noise amplifier design
• SMA connector interface for signal transmission
• Broadband operation capability across specified microwave frequencies

Applications

• RF signal amplification in communication systems
• Low noise front-end stages in receiver architectures
• Test and measurement equipment requiring high linearity

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the specific model designation and revision level documented in official datasheets. Ensure handling procedures comply with electrostatic discharge protocols during installation to maintain performance integrity.

Selection Notes

Select this component when a low noise amplifier is required for frequencies between 30 MHz and 1.5 GHz. Consider the 1.6 dB noise figure and 25 dB gain specifications for sensitive reception tasks. Verify that the 10 V to 15 V power supply requirement aligns with system constraints before integration.

Part Context

This part belongs to the Fairview Microwave series of SMA low noise amplifiers. These units typically operate from voltage ranges of 2.7V to 28V with varying supply currents. The FMAM63002 represents a specific configuration optimized for mid-band RF applications with defined gain and linearity metrics.

Replacement Considerations

No public confirmed substitute part numbers are available for this component.
