FMAM63007

Overview

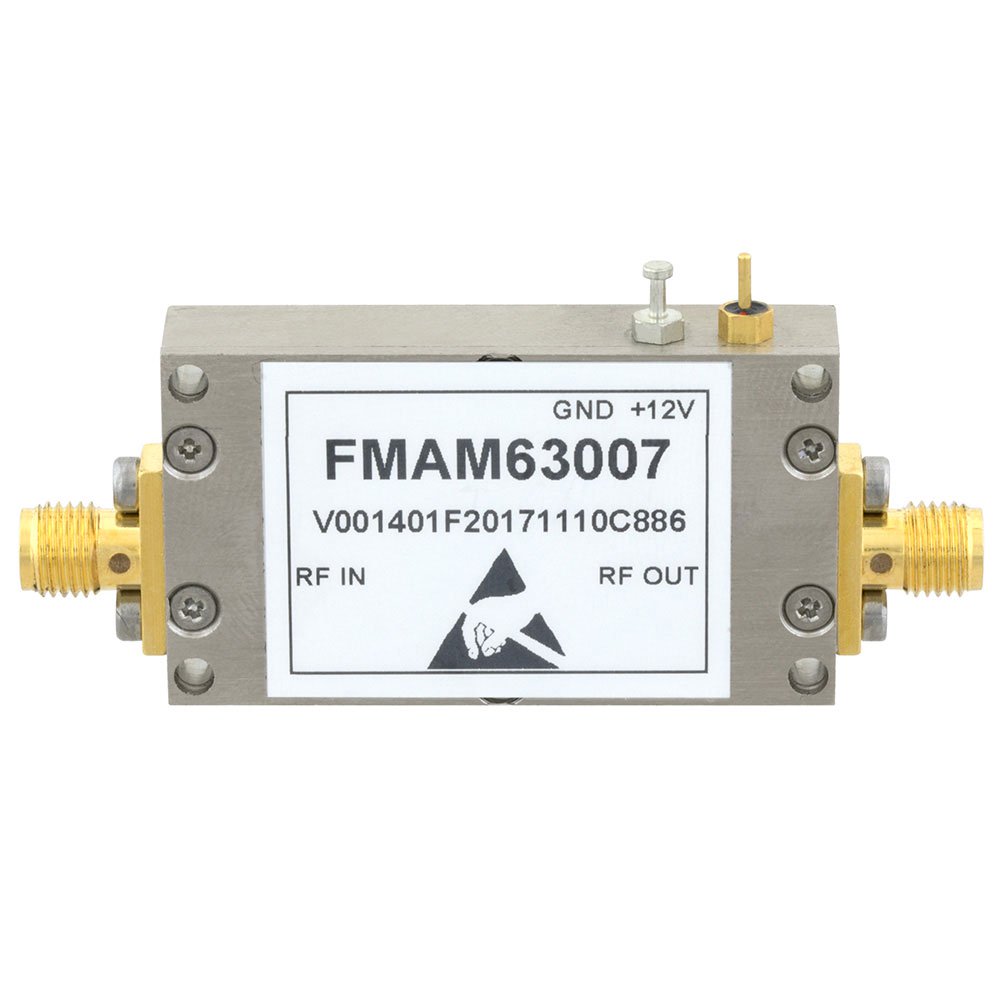

The FMAM63007 is a low noise amplifier manufactured by Fairview Microwave, designed for operation within the 2 GHz to 2.6 GHz frequency range. It features an input noise figure of 0.85 dB and provides a gain of 30 dB. The device operates on a supply voltage between 10 V and 15 V with a current draw of 110 mA. It utilizes SMA connectors and includes input protection mechanisms.

Feature Summary

• Input protected architecture
• Low noise figure performance
• High gain amplification

Applications

• Radar systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the FMAM63007 to confirm exact electrical tolerances and pinout configurations before integration. Ensure that the power supply meets the required 10 V to 15 V range and that the 110 mA current consumption is supported by the system design. Confirm SMA connector compatibility with existing RF interfaces.

Selection Notes

Select this component when a low noise figure of 0.85 dB is critical for signal integrity in the 2 GHz to 2.6 GHz band. The 30 dB gain makes it suitable for weak signal amplification stages. Consider the SMA interface and DC coupling requirements during board layout. Verify thermal management needs based on the specified operating conditions.

Part Context

This part belongs to Fairview Microwave's RF Amplifier series, specifically categorized under wireless and RF integrated circuits. It is distinct from other models like the FMAM63012 or FMAM86002 due to its specific frequency range and noise figure specifications. The product is listed as a new item in distributor catalogs.
