FMAM63012

Overview

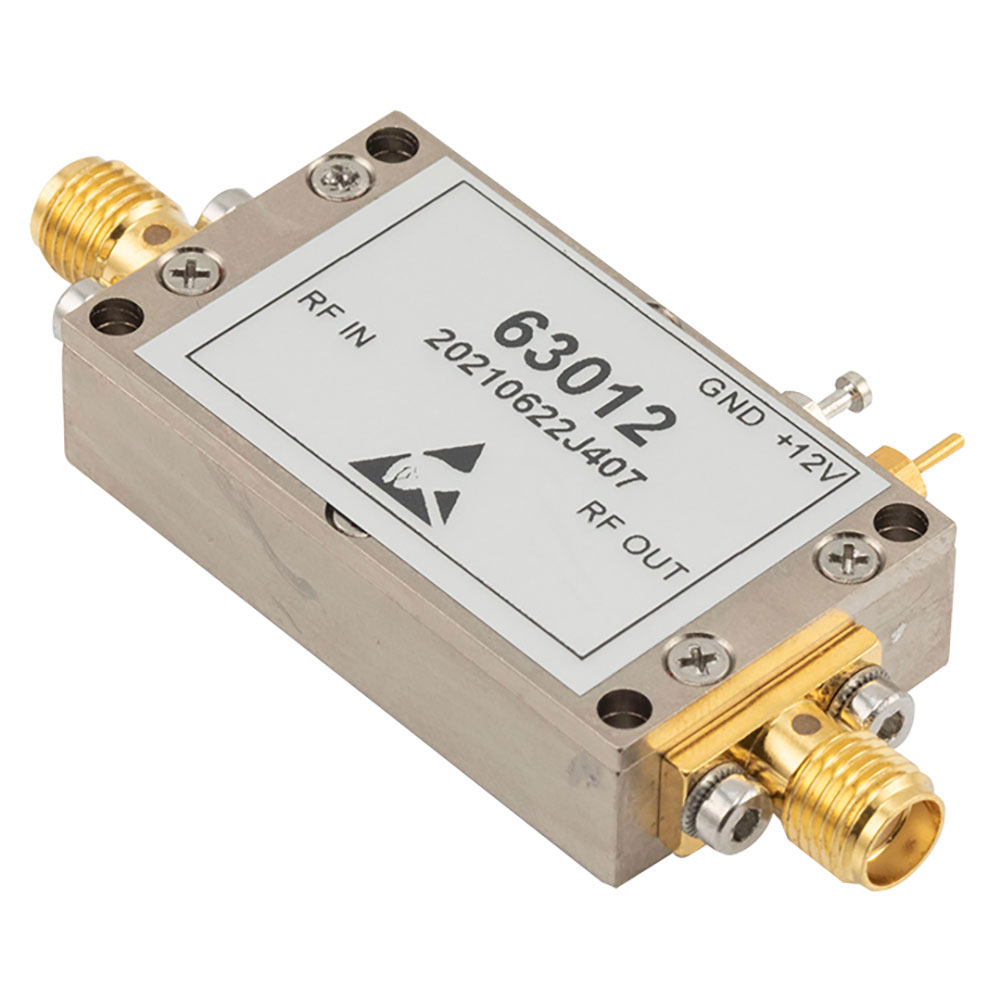

The FMAM63012 is a low noise amplifier manufactured by Fairview Microwave, designed for RF applications. It operates from 0.001 MHz to 1 GHz with 40 dB gain and 1 dB noise figure. The device features input protection and delivers 15 dBm P1dB output power. It utilizes SMA connectors and requires a supply voltage of 10 V to 15 V at 150 mA current draw.

Feature Summary

• Provides high gain amplification with minimal signal degradation across a wide frequency range
• Incorporates internal input protection mechanisms to safeguard against electrical faults
• Utilizes standard SMA interfaces for straightforward integration into existing RF systems

Applications

• RF signal chain front-ends requiring low noise performance
• Communication systems operating in the sub-GHz spectrum
• Test and measurement equipment needing precise signal amplification

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the specific part number matches project requirements regarding frequency range and connector type. Ensure proper handling procedures are followed during installation to maintain signal integrity and device longevity.

Selection Notes

Select this model when broad bandwidth coverage from near-DC to 1 GHz is required alongside high gain specifications. Consider the integrated input protection feature for environments prone to electrical transients. Evaluate the SMA interface compatibility with existing system infrastructure before finalizing the procurement decision.

Part Context

This component belongs to Fairview Microwave's portfolio of radio frequency amplifiers. It serves as a specialized solution for applications demanding both high gain and low noise characteristics within a defined operational bandwidth. The design focuses on reliability and ease of integration into complex RF architectures.
