FMAM63014

Overview

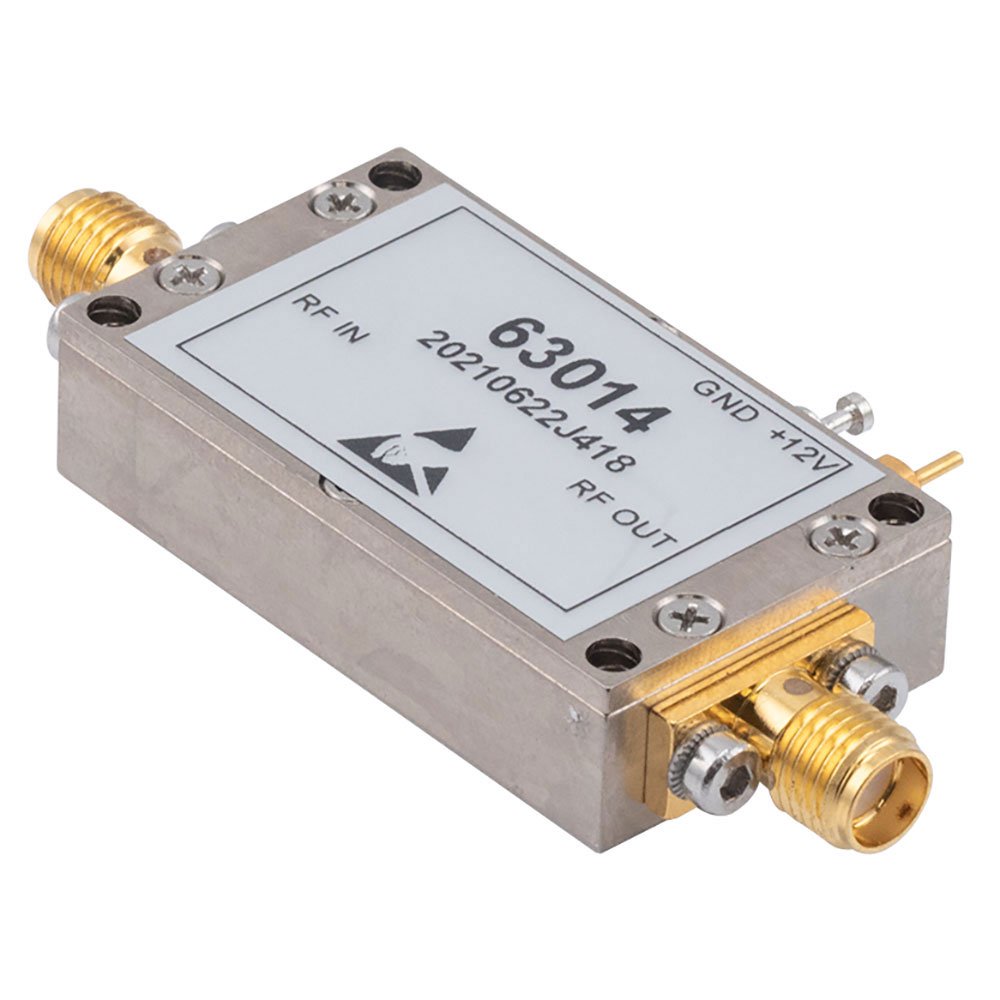

The FMAM63014 is a low noise RF amplifier manufactured by Fairview Microwave, designed for broadband applications. It operates across a frequency range from 0.001 MHz to 1 GHz. The device features a 50-ohm input and output impedance with SMA connectors. Key electrical specifications include a 1 dB noise figure, 60 dB gain, and 15 dBm P1dB compression point. It utilizes a three-stage GaAs design and requires a DC supply voltage of 15 V at 900 mA current draw.

Feature Summary

• Broadband operation covering 0.001 MHz to 1 GHz
• Low noise figure of 1 dB for sensitive signal reception
• High gain of 60 dB in a compact module form factor
• Input protection integrated into the low noise amplifier design

Applications

• Test and measurement equipment requiring wideband amplification
• Wireless communication systems operating in the HF/VHF/UHF bands
• Instrumentation front-ends for signal conditioning
• Research and development prototypes for RF circuit verification

Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer documentation may list varying gain figures such as 38 dB or 60 dB for similar model numbers. Confirm SMA connector compatibility and 15 V power requirements with your system design. Ensure the application environment supports the thermal characteristics of the module. Cross-reference the part number with official Fairview Microwave catalogs to avoid confusion with closely related variants like the FMAM63012.

Selection Notes

Select this component when a wide frequency span from near-DC to 1 GHz is required alongside high sensitivity. The 1 dB noise figure makes it suitable for weak signal detection. Compare against other models in the FMAM series if different gain levels or narrower bandwidths better fit the specific system constraints. Verify that the 60 dB gain does not cause instability in cascaded stages without proper isolation.

Part Context

This module belongs to Fairview Microwave's line of pre-engineered RF amplifiers. These modules are designed to simplify system integration by providing tested performance in a standardized package. The FMAM63014 specifically targets applications needing significant amplification over a broad spectrum, distinguishing it from narrowband or higher-frequency counterparts in the same product family.

Replacement Considerations

The FMAM63012 is a related low noise amplifier from the same manufacturer but offers 40 dB gain instead of 60 dB. Verify if the reduced gain meets system requirements before substituting. No direct cross-manufacturer equivalents are confirmed in public documentation.
