FMAM63015

Overview

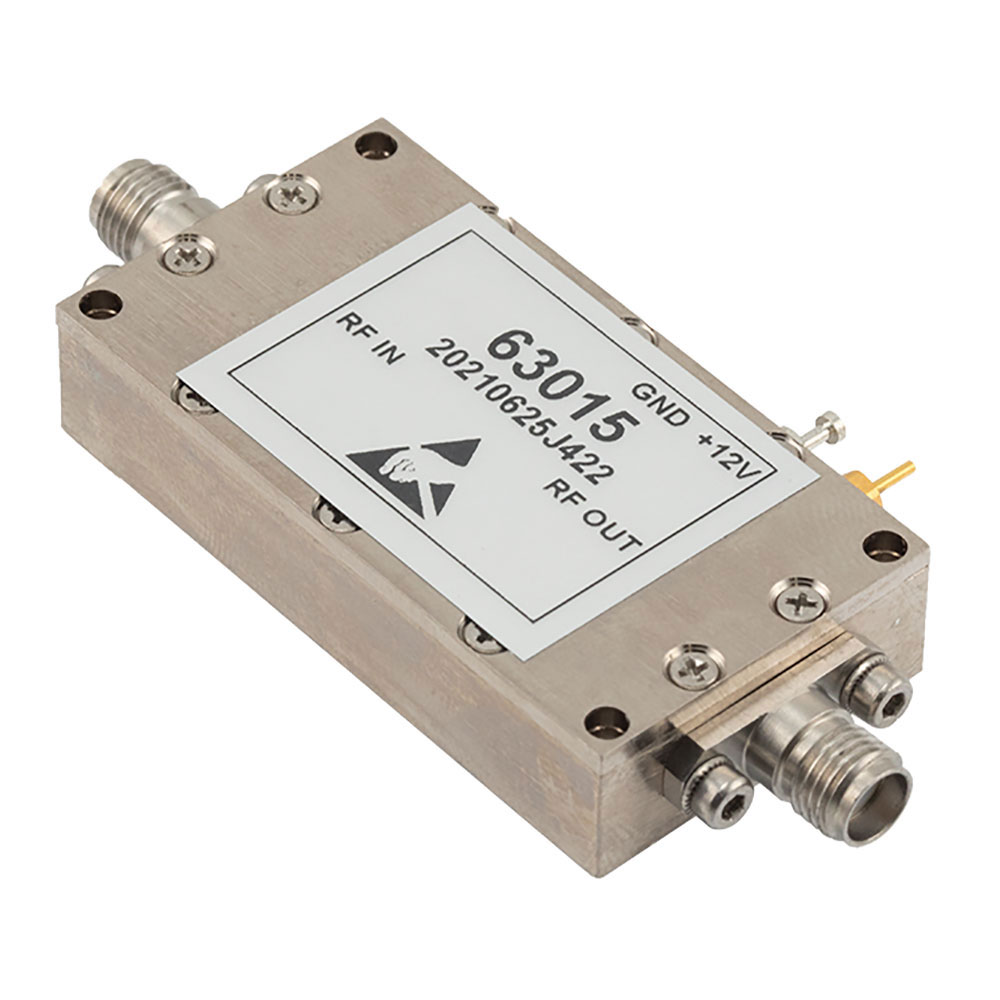

The FMAM63015 is a medium power GaAs amplifier manufactured by Fairview Microwave, designed for operation within the 8.5 GHz to 11 GHz frequency range. It delivers a nominal gain of 30 dB with a saturated output power (Psat) of 37 dBm and a 1 dB compression point (P1dB) of 30 dBm. The device features a third-order intercept point (OIP3) of 38 dBm and an input-protected low noise figure of 3 dB. Electrical requirements include a supply voltage of 15.5 V and a typical current draw of 900 mA. The unit utilizes SMA connectors for both input and output interfaces.

Feature Summary

• Integrated input protection circuitry enhances component reliability against signal anomalies.
• Utilizes Gallium Arsenide (GaAs) technology to achieve high linearity and power efficiency in the microwave spectrum.
• Provides standardized SMA interface connections for straightforward integration into existing RF test setups.

Applications

• Microwave point-to-point communication systems
• Satellite ground station uplink amplification
• Test and measurement instrumentation signal conditioning

Procurement Notes

Verify the specific datasheet version provided by the manufacturer to confirm exact electrical tolerances and pinout configurations prior to integration. Ensure that the power supply specifications align with the required 15.5 V operating voltage and current capacity. Confirm connector compatibility and mechanical mounting requirements match the intended application chassis or PCB layout.

Selection Notes

Select this component when a fixed-frequency solution is required for the 8.5–11 GHz band with moderate power output capabilities. Consider the integrated input protection feature if the system environment presents potential signal reflection risks. Evaluate the thermal management requirements based on the 900 mA current consumption and expected ambient operating temperatures.

Part Context

This model belongs to Fairview Microwave's portfolio of specialized RF amplifiers targeting high-frequency applications. It serves as a dedicated solution for systems requiring stable gain and linearity without the complexity of tunable architectures. The design focuses on robust performance in defined microwave bands, supporting infrastructure that demands consistent signal integrity.

Replacement Considerations

No public confirmed substitute part numbers are available in the reference documentation. Direct replacement requires matching the 8.5–11 GHz frequency range, 30 dB gain, and SMA interface specifications exactly.
