FMAM63017

Overview

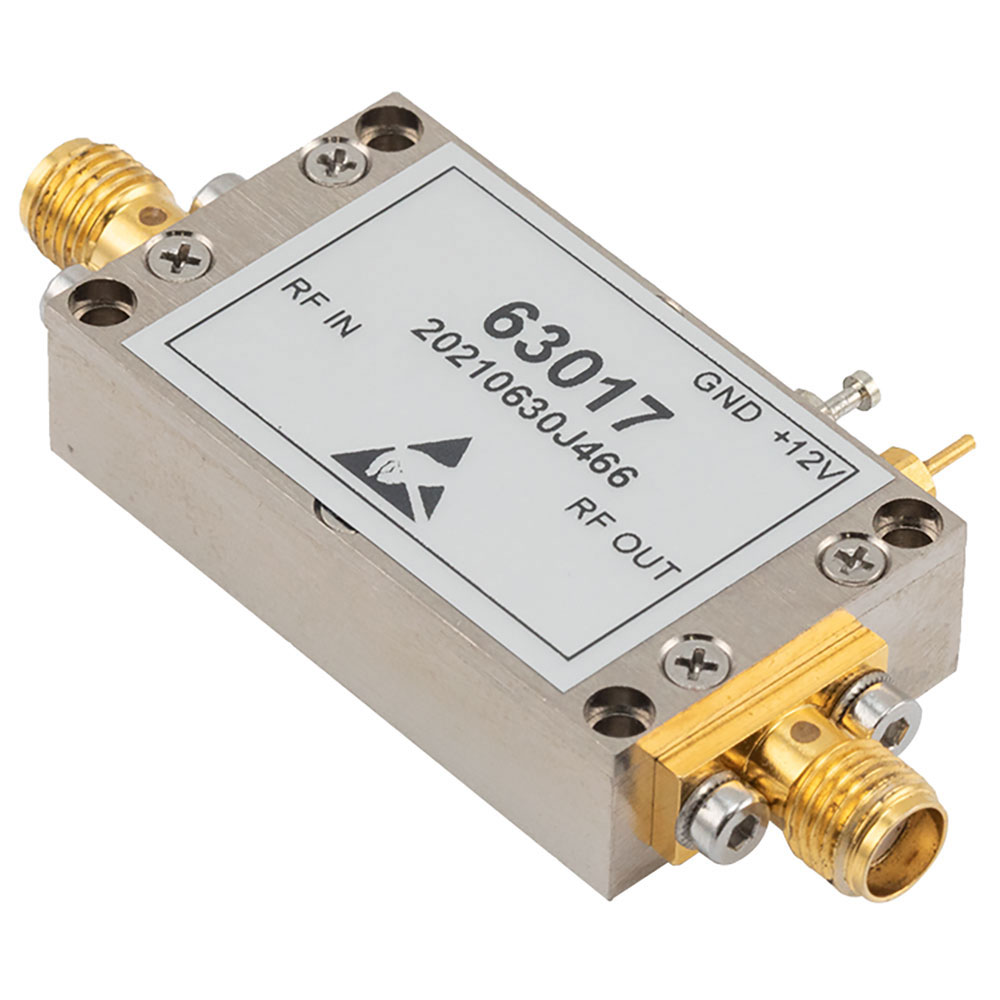

The FMAM63017 is a low noise amplifier designed for radar applications, operating from 30 MHz to 3 GHz. It features a typical noise figure of 1.7 dB and provides 33 dB gain. The device delivers 15 dBm P1dB output power with an OIP3 of 45 dBm. It requires a supply voltage between 10 V and 13 V and draws 80 mA current. The unit utilizes SMA connectors and is housed in a module package.

Feature Summary

• Engineered specifically for radar system integration
• Provides input protection mechanisms
• Delivers high linearity performance

Applications

• Radar systems
• Test and measurement equipment
• Communication infrastructure

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the supply voltage range aligns with your system design. Ensure mechanical mounting requirements match the module form factor. Cross-reference connector specifications with existing board layouts.

Selection Notes

Select this component when a wideband low noise amplifier is required for radar frequencies. Consider the 1.7 dB noise figure for sensitive receiver front-ends. Evaluate the 33 dB gain against system link budget requirements. Verify compatibility with the 10 V to 13 V power supply constraints.

Part Context

This RF amplifier belongs to Fairview Microwave's portfolio of specialized amplifiers. It targets niche applications requiring stable performance across a broad frequency span. The product supports industrial and commercial electronic designs needing reliable signal conditioning.

Replacement Considerations

No public confirmed substitute part numbers are available.
