FMAM63018

Overview

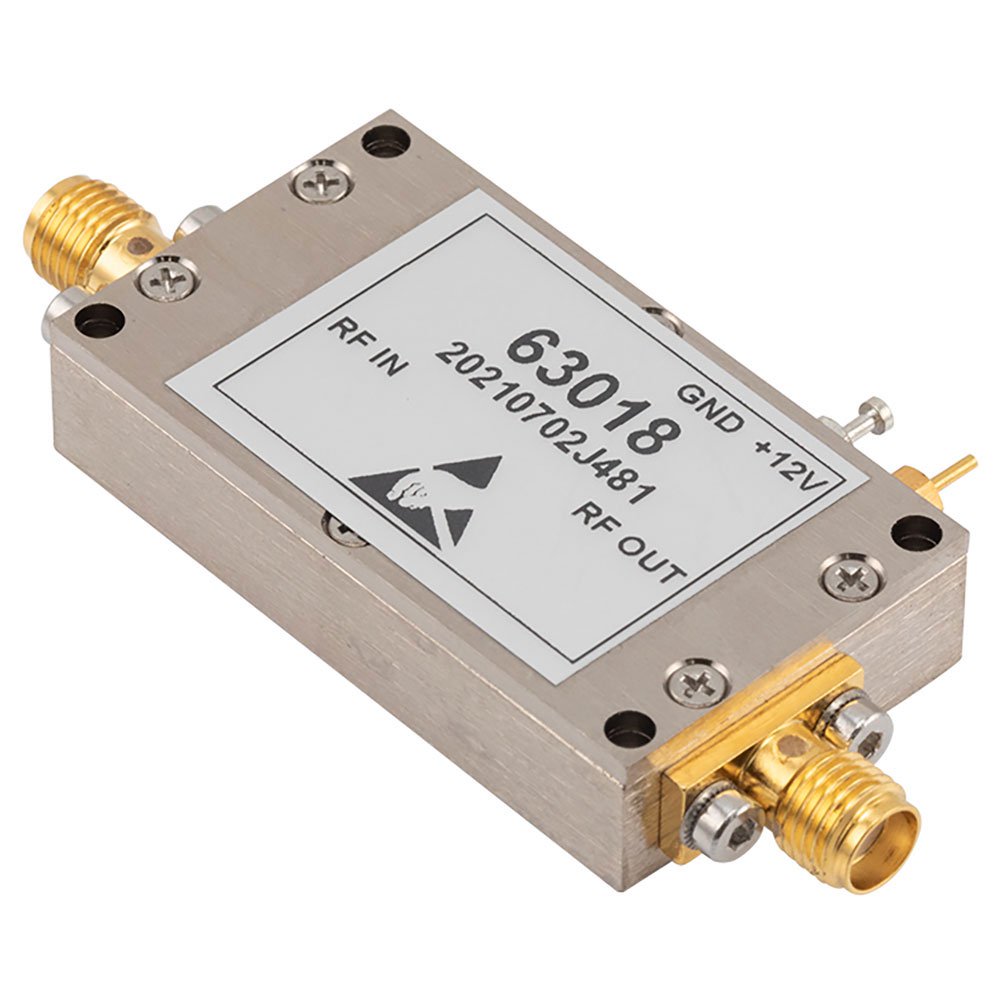

The FMAM63018 is a low noise amplifier manufactured by Fairview Microwave, designed for operation within the frequency range of 10 MHz to 6 GHz. It features SMA connectors and provides a gain of 30 dB with a noise figure of 3.5 dB. The device delivers a saturated output power (Psat) of 16.5 dBm and operates on a DC voltage supply ranging from 2.7 V to 28 V.

Feature Summary

• Input protection circuitry integrated into the design
• Low noise figure specification for signal integrity
• Wide operating voltage range compatibility

Applications

• Radar systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the FMAM63018 to confirm current RoHS compliance status and SVHC declarations, as these details may vary by production batch. Ensure that the required supply voltage falls within the specified 2.7 V to 28 V range for proper functionality. Cross-reference the connector gender and package type with your system requirements before finalizing procurement orders.

Selection Notes

Select this component when a low noise amplifier is required for frequencies up to 6 GHz with moderate gain. The wide input voltage tolerance allows flexibility in power supply design. Consider the 3.5 dB noise figure for sensitive receiver front-ends. Verify that the SMA interface matches your existing board layout or cable assemblies.

Part Context

This part belongs to Fairview Microwave's series of SMA low noise amplifiers. These components are engineered for general-purpose RF applications requiring reliable performance across a broad frequency spectrum. The series typically offers robust input protection and consistent gain characteristics suitable for various electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
