FMAM63021

Overview

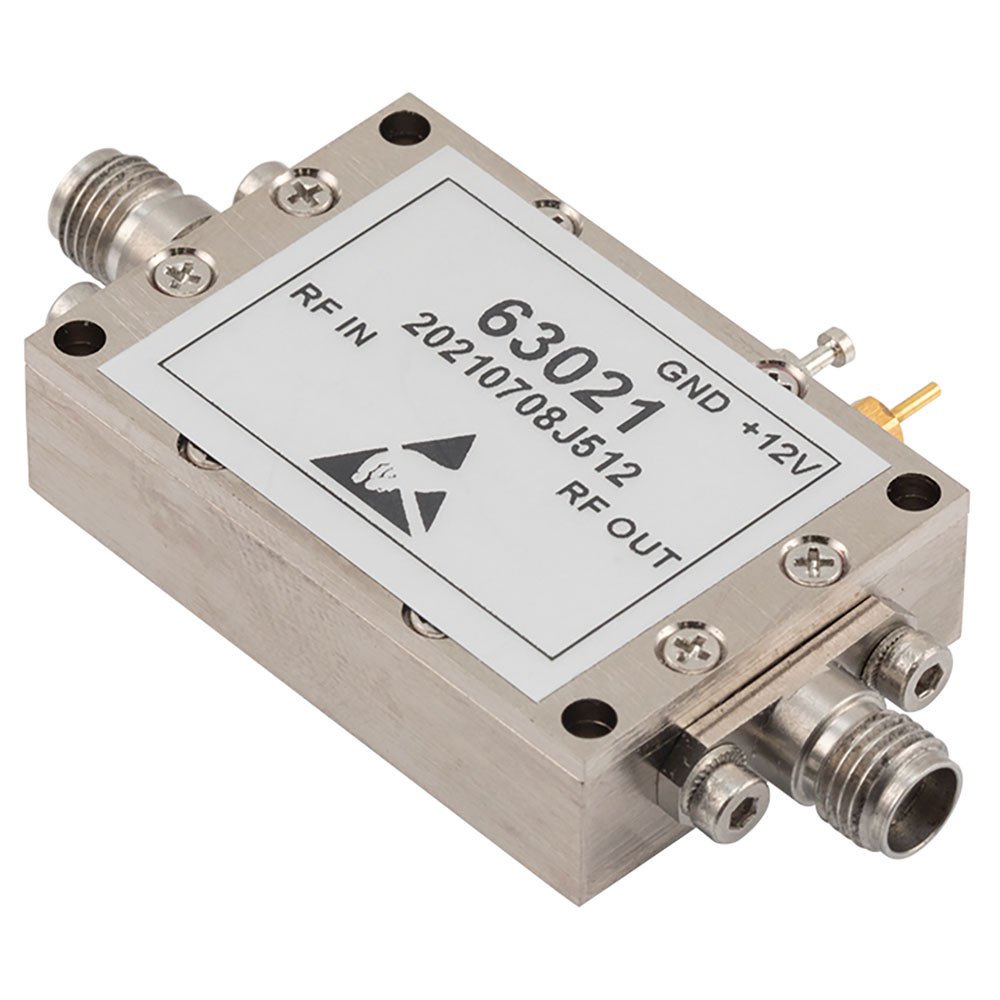

The FMAM63021 is a low noise amplifier manufactured by Fairview Microwave, designed for high-frequency RF applications. It operates within a frequency range of 26.5 GHz to 40 GHz. The device provides a gain of 35 dB with a noise figure of 2.5 dB. It features an input protection mechanism and utilizes SMA connectors. Key performance metrics include a 1 dB compression point (P1dB) of 11 dBm. This component is categorized under RF amplifiers and wireless integrated circuits.

Feature Summary

• Input protection circuitry ensures robustness against signal overloads
• Low noise figure design optimizes signal integrity in high-frequency bands
• SMA connector interface facilitates standard RF system integration

Applications

• High-frequency communication systems requiring low noise amplification
• Test and measurement equipment operating in the K-band and above
• Satellite communication receiver front-ends

Procurement Notes

Verify the specific datasheet version from Fairview Microwave or authorized distributors before ordering. Confirm that the SMA connector type matches your system requirements. Ensure that the operating voltage and current specifications align with your power supply design. Check for any recent updates to the product lifecycle status or pinout configurations.

Selection Notes

Select this amplifier when operation between 26.5 GHz and 40 GHz is required. Consider the 2.5 dB noise figure for sensitive reception applications. Evaluate the 35 dB gain against system linearity needs. Ensure compatibility with SMA interfaces and verify thermal management capabilities for continuous operation at these frequencies.

Part Context

This component belongs to Fairview Microwave's portfolio of RF amplifiers. It serves as a specialized solution for millimeter-wave applications where low noise and high gain are critical. The FMAM63021 complements other components in wireless and RF integrated circuit categories, supporting advanced communication infrastructure.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Fairview Microwave directly for potential cross-reference options or updated model replacements.
