FMAM7001

Overview

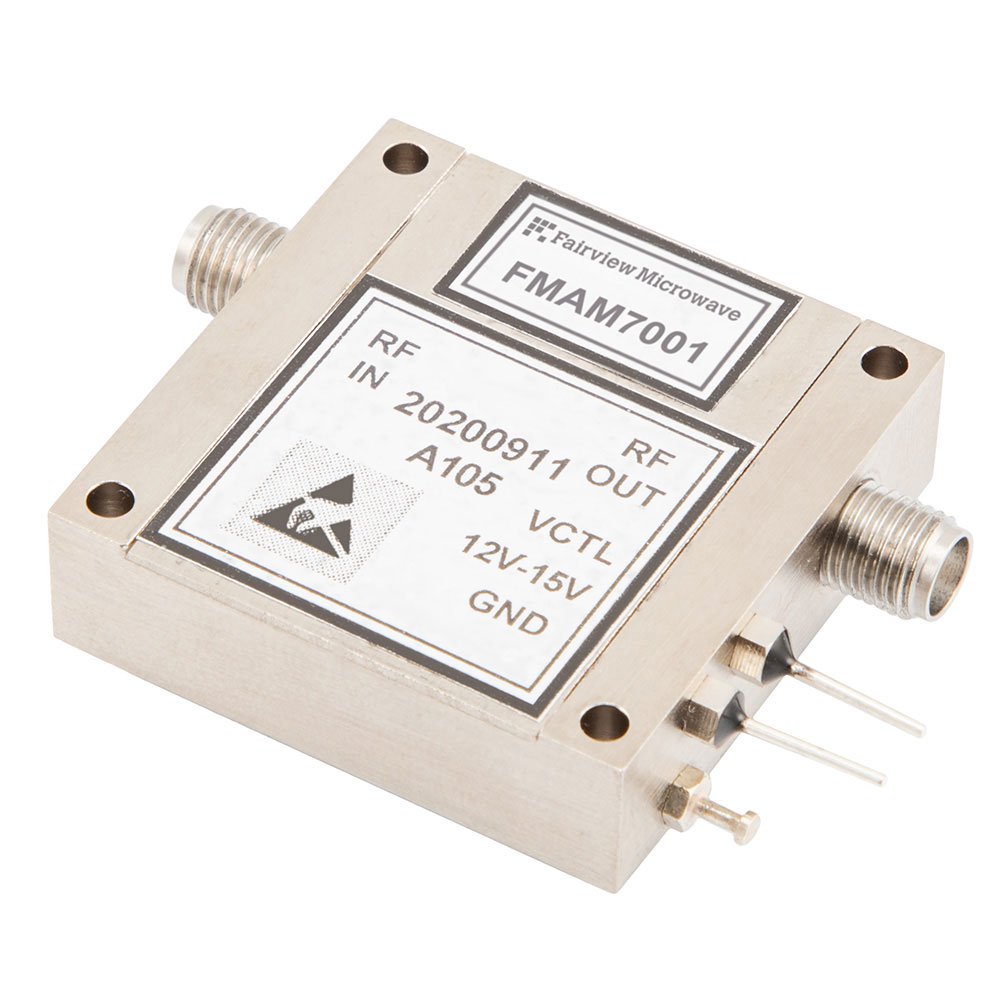

The FMAM7001 is a variable gain control amplifier manufactured by Fairview Microwave, designed for operation within the 0.5 GHz to 2 GHz frequency range. Constructed using GaAs FET technology, this RF amplifier provides a nominal gain of 45 dB with a 20 dB variable gain control capability. It features a +15 dBm P1dB output power level and a noise figure of 3.5 dB. The device operates on a supply voltage ranging from 12 V to 16 V, drawing a current of 250 mA.

Feature Summary

• Utilizes GaAs FET technology for reliable high-frequency performance
• Offers adjustable signal amplification through 20 dB variable gain control
• Provides stable linear operation with specified compression point characteristics

Applications

• Wireless communication systems requiring tunable signal strength
• Test and measurement equipment needing precise gain adjustment
• RF front-end modules in base station infrastructure

Procurement Notes

Verify component authenticity against official Fairview Microwave documentation before integration. Confirm that the specific revision matches your design requirements regarding pinout and electrical tolerances. Ensure supply chain sources are authorized distributors to avoid counterfeit risks. Review the latest datasheet for any updates to mechanical dimensions or thermal specifications prior to final procurement decisions.

Selection Notes

Select this component when a wideband variable gain solution is required between 0.5 GHz and 2 GHz. Consider the 45 dB fixed gain baseline alongside the 20 dB adjustment range for system dynamic range planning. Evaluate the 250 mA current draw against available power budgets. Compare the 3.5 dB noise figure against system sensitivity requirements to ensure adequate signal-to-noise ratio preservation.

Part Context

This model belongs to Fairview Microwave's line of RF amplifiers, specifically targeting applications needing both high gain and adjustability. It complements other fixed-gain and low-noise variants in their portfolio by offering controlled variability. The GaAs construction supports robust performance in demanding RF environments typical of modern wireless standards.

Replacement Considerations

Direct substitutes may include other GaAs variable gain amplifiers covering the 0.5-2 GHz band with similar gain and power specs. Verify pin compatibility and thermal management requirements when considering alternatives. Check if alternative parts offer comparable noise figures and linearity metrics for seamless integration.
