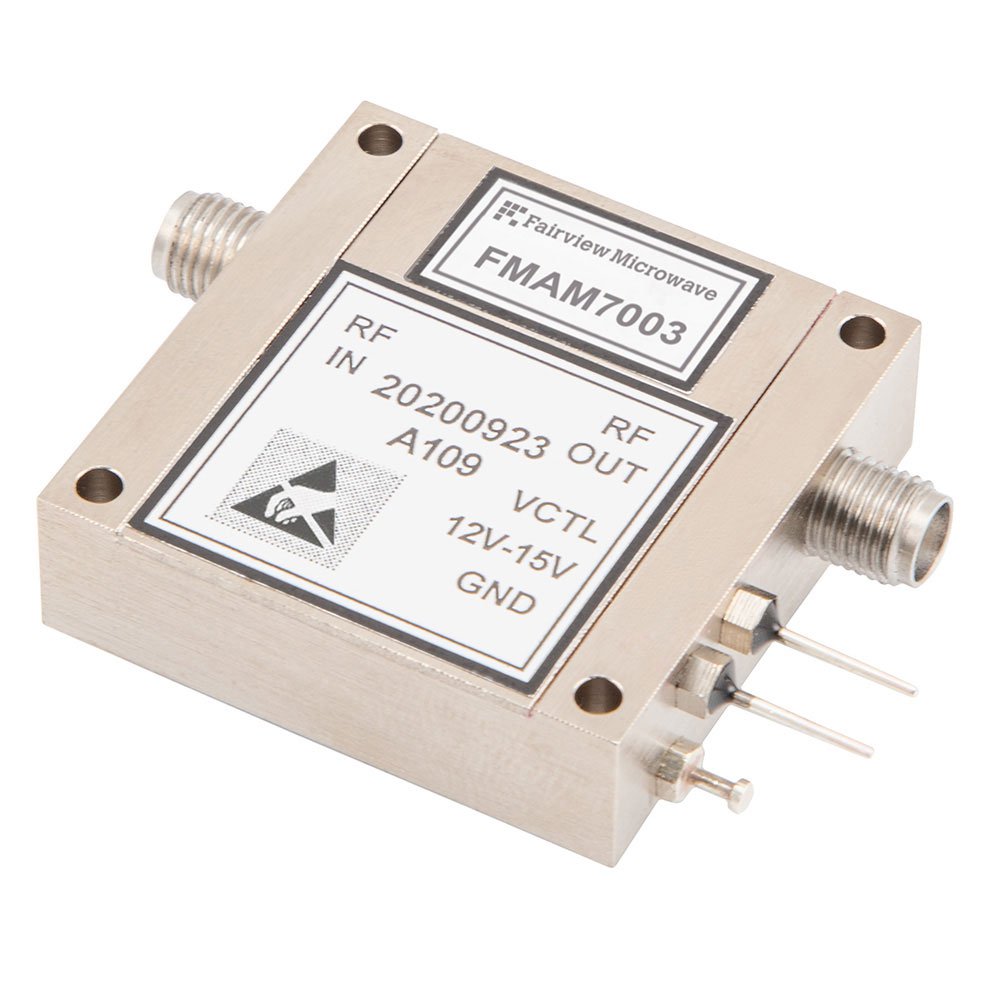

FMAM7003

$4,398.74

Description：VAR GAIN AMP SMA 2-6 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:7a68ac438973 Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VAR GAIN AMP SMA 2-6 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：2GHz ~ 6GHz
P1dB：16dBm
Gain：42dB
Noise Figure：2dB
RF Type：General Purpose
Voltage - Supply：12V ~ 16V
Current - Supply：140mA
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAM7003

Overview

The FMAM7003 is a variable gain control amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 6 GHz and utilizes GaAs FET technology. The device provides a nominal gain of 40 dB with a variable gain adjustment capability of 20 dB. Key electrical specifications include a +15 dBm P1dB compression point, a noise figure of 5 dB, and an OIP3 of 31 dBm. It requires a DC supply voltage between 12 V and 16 V, drawing a current of 350 mA. The component is housed in a module package equipped with SMA connectors.

Feature Summary

Features variable gain control functionality for signal level adjustment
Utilizes GaAs FET technology for RF amplification
Includes SMA connectors for interface connectivity

Applications

RF signal processing systems requiring gain adjustment
Test and measurement equipment interfaces
Communication system components

Procurement Notes

Verify the specific datasheet version and technical parameters directly from the manufacturer before integration. Confirm that the required operating conditions, including supply voltage and current, align with the system design. Ensure compatibility with the SMA connector type and check for any regional distribution restrictions or availability limitations associated with this part number.

Selection Notes

Select this component when a wideband variable gain amplifier is needed for frequencies between 2 GHz and 6 GHz. Consider the 20 dB variable gain range and the specific power consumption requirements. Evaluate the GaAs FET technology against other available options based on noise performance and linearity needs for the intended application environment.

Part Context

This part belongs to the Fairview Microwave RF Amplifier product line, specifically categorized under Variable Gain Control Amplifiers. It is designed for applications requiring precise signal attenuation or amplification control within the specified UHF to SHF frequency bands. The module format facilitates integration into larger RF assemblies.
