Product Detailed Parameters
- Description：VAR GAIN AMP SMA 4-12 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：4GHz ~ 12GHz
- P1dB：16.5dBm
- Gain：47dB
- Noise Figure：3.5dB
- RF Type：General Purpose
- Voltage - Supply：12V ~ 16V
- Current - Supply：360mA
- Test Frequency：-
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

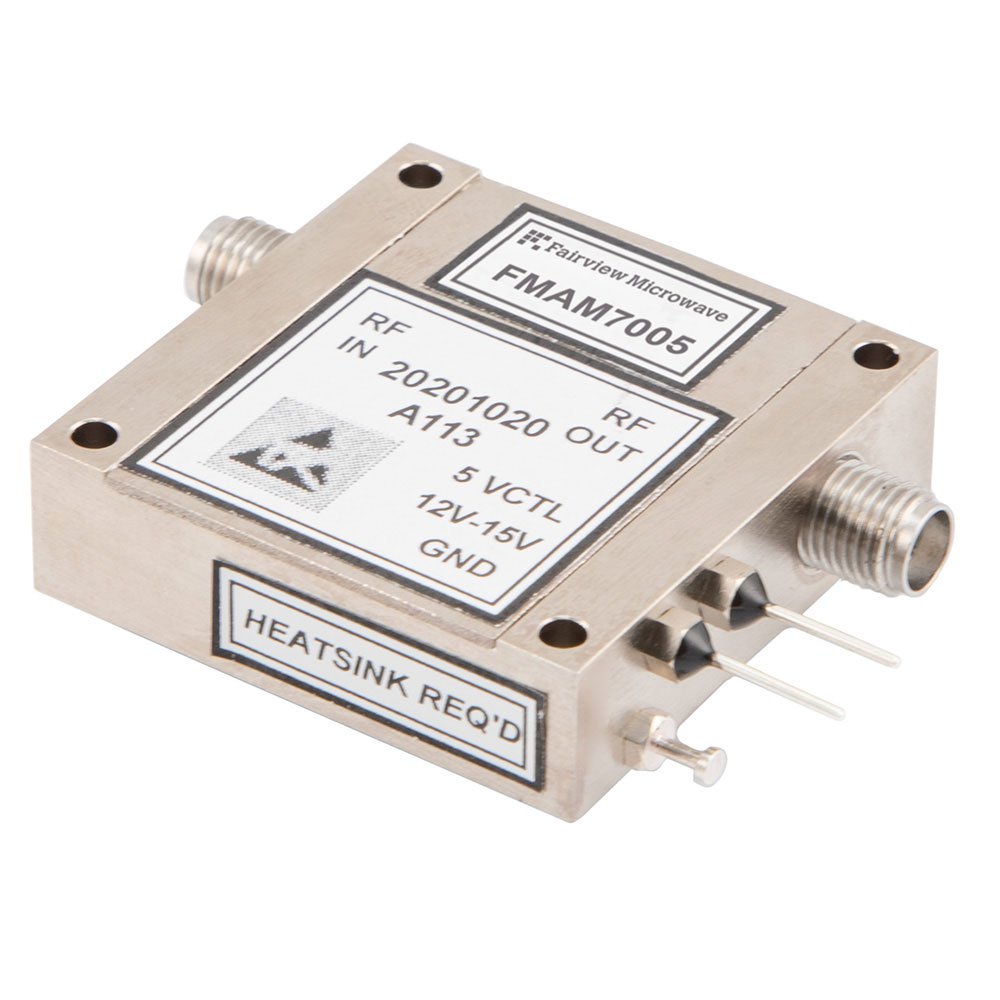

The FMAM7005 is a variable gain control amplifier manufactured by Fairview Microwave, utilizing GaAs FET technology. It operates within a frequency range of 4 GHz to 12 GHz and provides a nominal gain of 40 dB with 20 dB of variable gain control. The device features an input P1dB compression point of +15 dBm and requires an operating supply voltage between 12 V and 16 V, drawing a current of 360 mA. It is equipped with SMA connectors for interface connectivity.
Feature Summary
- Incorporates GaAs FET technology for high-frequency performance
- Provides 20 dB of variable gain control capability
- Features SMA female connectors for signal interfacing
Applications
- RF signal conditioning in communication systems
- Test and measurement instrumentation
- Wireless infrastructure components
Procurement Notes
Verify the specific datasheet version and technical specifications directly with Fairview Microwave or authorized distributors before procurement. Confirm that the operating voltage and current requirements align with your system design. Ensure that the SMA connector compatibility matches your existing cabling and assembly infrastructure to prevent integration issues.
Selection Notes
Select this component when a wideband variable gain solution is required in the 4 GHz to 12 GHz spectrum. The GaAs FET construction offers distinct advantages for linearity and noise performance in this frequency band. Consider the 360 mA supply current requirement when designing power management circuits. Verify that the 40 dB nominal gain meets the system's signal amplification needs without excessive saturation.
Part Context
This part belongs to Fairview Microwave's RF Amplifier product category, specifically under Variable Gain Control Amplifiers. It is designed for applications requiring precise signal amplitude adjustment across a broad microwave frequency range. The use of GaAs technology positions it within high-performance analog front-end solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential cross-references.
FAQ
What is the operating frequency range of the FMAM7005?
The FMAM7005 operates from 4 GHz to 12 GHz.
What type of technology is used in this amplifier?
It utilizes GaAs FET technology.
