FMAM7006

Overview

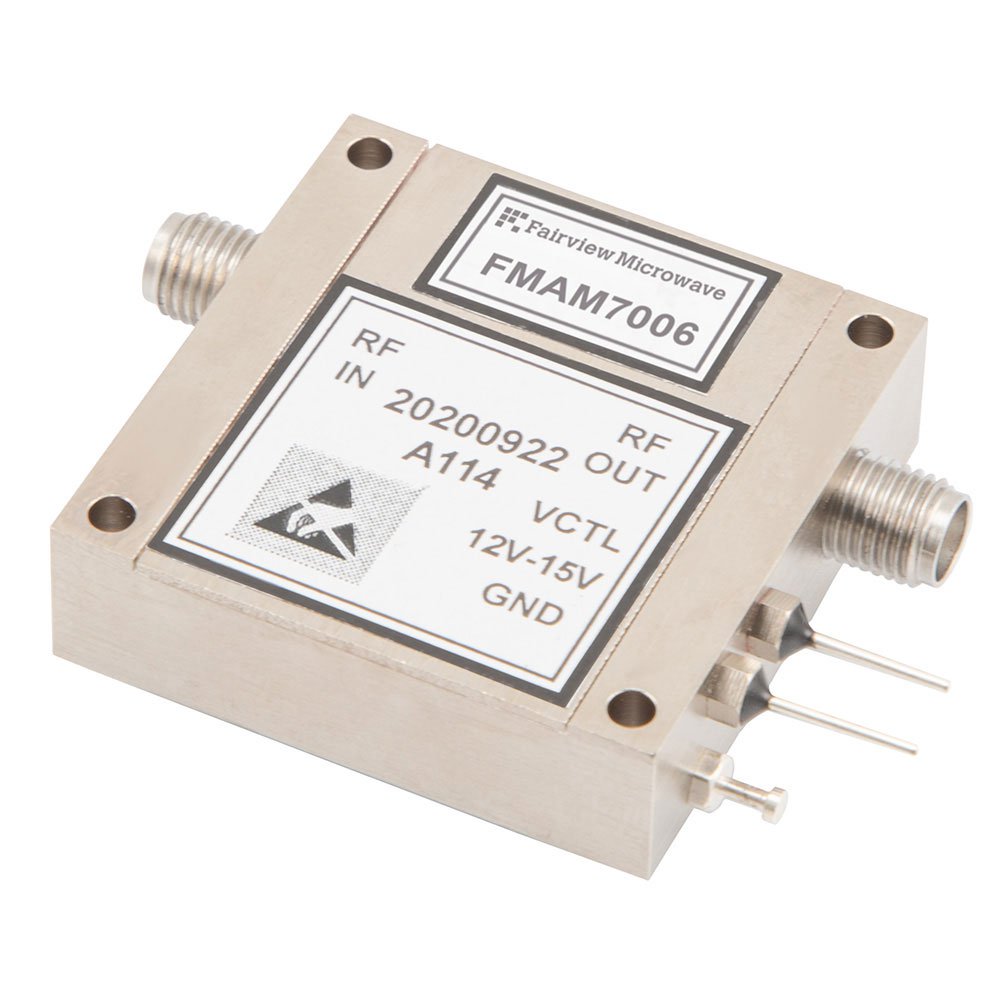

The FMAM7006 is a variable gain control amplifier manufactured by Fairview Microwave, utilizing GaAs FET technology. It operates within a frequency range of 6 GHz to 18 GHz and provides a nominal gain of 45 dB with 20 dB of variable gain control. The device requires an operating supply voltage between 12 V and 16 V, drawing a current of 315 mA. Key performance metrics include a +15 dBm P1dB compression point and SMA connectors for input and output interfaces.

Feature Summary

• Variable gain control capability using GaAs FET technology
• Wideband operation covering 6 GHz to 18 GHz frequencies
• High linearity performance with specified P1dB compression point

Applications

• Test and measurement instrumentation requiring precise signal attenuation or amplification
• Wireless communication systems operating in the K-band and Ka-band ranges
• Radar systems needing adjustable gain stages for dynamic range management

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Request official datasheets and test reports to confirm electrical parameters match specifications. Ensure proper ESD handling procedures during storage and installation. Confirm connector compatibility and mechanical fit before integration into final assemblies.

Selection Notes

Select this amplifier when variable gain control is required across the 6 GHz to 18 GHz spectrum. Consider the 315 mA supply current and 12-16 V voltage requirements for power budgeting. Evaluate thermal management needs based on the P1dB rating and expected duty cycle. Compare against fixed-gain alternatives if adjustment flexibility is not necessary for the specific application.

Part Context

This component belongs to Fairview Microwave's RF amplifier portfolio, specifically designed for high-frequency applications. It complements other models in the series that may offer different frequency ranges or gain characteristics. The use of GaAs technology ensures reliable performance in demanding RF environments typical of modern wireless infrastructure and testing equipment.
