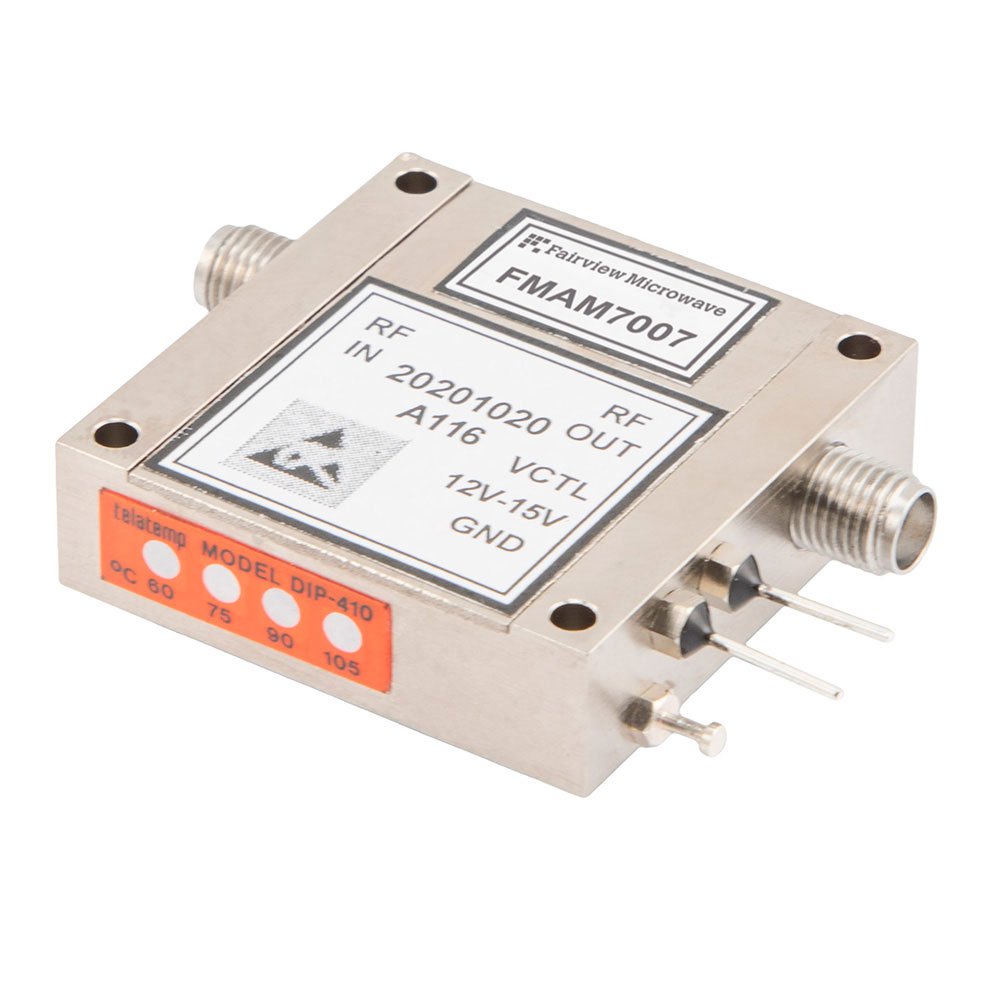

FMAM7007

$6,044.78

Description：VAR GAIN AMP SMA 18-26.5 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:b0be56497d81 Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VAR GAIN AMP SMA 18-26.5 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：18GHz ~ 26.5GHz
P1dB：15dBm
Gain：45dB
Noise Figure：5.5dB
RF Type：General Purpose
Voltage - Supply：12V ~ 16V
Current - Supply：350mA
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAM7007

Overview

The FMAM7007 is a variable gain control amplifier manufactured by Fairview Microwave, designed for high-frequency RF applications. It operates within a frequency range of 18 GHz to 26.5 GHz and utilizes GaAs FET technology. The device provides a nominal gain of 40 dB with a variable gain adjustment capability of 20 dB. Key performance metrics include a 1 dB compression point (P1dB) of +13 dBm and a noise figure of 5.5 dB. The unit features SMA connectors for interface connectivity.

Feature Summary

Variable gain control functionality allowing for adjustable signal amplification levels
Utilization of GaAs FET technology for reliable high-frequency operation
Designed for integration into systems requiring precise RF signal management

Applications

High-frequency test and measurement equipment
Wireless communication infrastructure components
RF signal processing systems

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Confirm that the specific order matches the FMAM7007 designation and includes all relevant technical documentation. Ensure handling procedures comply with electrostatic discharge protocols required for sensitive RF semiconductor devices during installation.

Selection Notes

Select this model when an application requires amplification in the 18 GHz to 26.5 GHz band with adjustable gain characteristics. Consider the 40 dB nominal gain and 20 dB variable range against system linearity requirements defined by the P1dB specification. Evaluate compatibility with SMA interfaces and ensure the noise figure meets the sensitivity constraints of the receiving chain.

Part Context

This component belongs to the Fairview Microwave RF Amplifier Modules series, which focuses on specialized active components for microwave frequencies. The FMAM7007 specifically addresses needs for variable gain control in millimeter-wave ranges, distinguishing it from fixed-gain amplifiers within the broader product catalog.
