FMAM7012

Overview

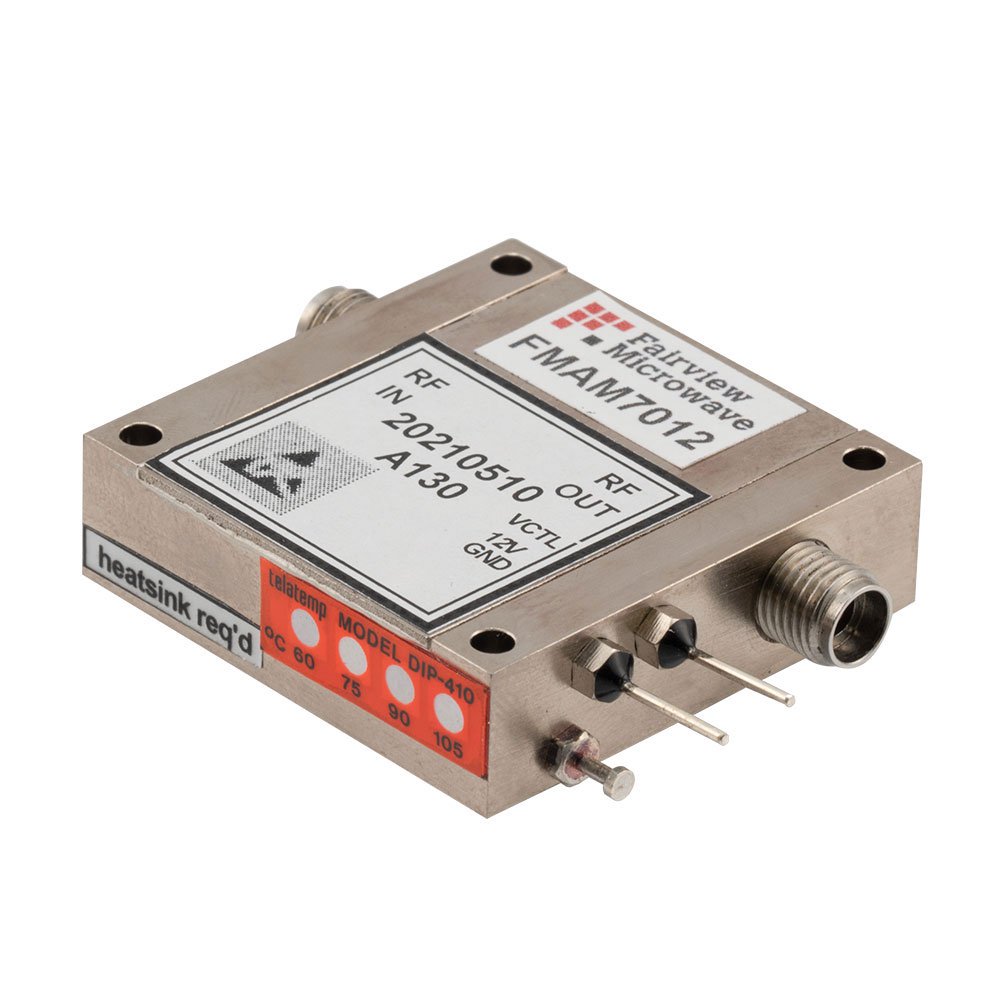

The FMAM7012 is a variable gain control amplifier manufactured by Fairview Microwave, designed for high-frequency applications. It utilizes GaAs FET technology and features a 2.92mm connector interface. The device operates within a frequency range of 18 GHz to 40 GHz, providing a nominal gain of 40 dB with 20 dB of variable gain control capability. It exhibits a noise figure of 5 dB and a 1 dB compression point (P1dB) of +11 dBm. Power requirements include an operating voltage of 12 V to 16 V and a current draw of 350 mA.

Feature Summary

• Variable gain control functionality allowing for precise signal adjustment
• High-frequency operation suitable for millimeter-wave applications
• GaAs FET technology for reliable performance
• Integrated 2.92mm connector interface for secure RF connections

Applications

• Test and measurement equipment requiring adjustable signal levels
• Wireless communication systems operating in the E-band
• Radar systems utilizing high-frequency signal processing
• Satellite communication ground stations

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or direct manufacturer channels. Confirm that the received unit matches the specific FMAM7012 model designation and includes original packaging documentation. Inspect connectors for physical integrity before installation. Ensure handling procedures comply with electrostatic discharge (ESD) safety standards to prevent damage to the sensitive GaAs FET internal circuitry during assembly.

Selection Notes

Select this amplifier when variable attenuation or gain adjustment is required within the 18-40 GHz spectrum. Compare specifications against alternative models like the FMAM7008 if lower frequency ranges are sufficient. Evaluate power consumption constraints against the 350 mA requirement. Consider the 2.92mm connector compatibility with existing system infrastructure. Assess noise figure requirements against the 5 dB specification for sensitive receiver chains.

Part Context

This component belongs to Fairview Microwave's portfolio of radio frequency integrated circuits and amplifiers. It is categorized under variable gain control amplifiers, distinct from fixed-gain low noise amplifiers or power amplifiers. The product line focuses on specialized RF solutions for demanding electronic environments, offering modular components that integrate into larger microwave subsystems and test setups.

Replacement Considerations

The FMAM7008 serves as a functional substitute for applications operating at lower frequencies between 26.5 GHz and 40 GHz. Verify connector type and pinout compatibility before substitution. Note differences in gain range and operating frequency limits between the two models to ensure system performance remains within acceptable parameters.
