FMAM8001

Overview

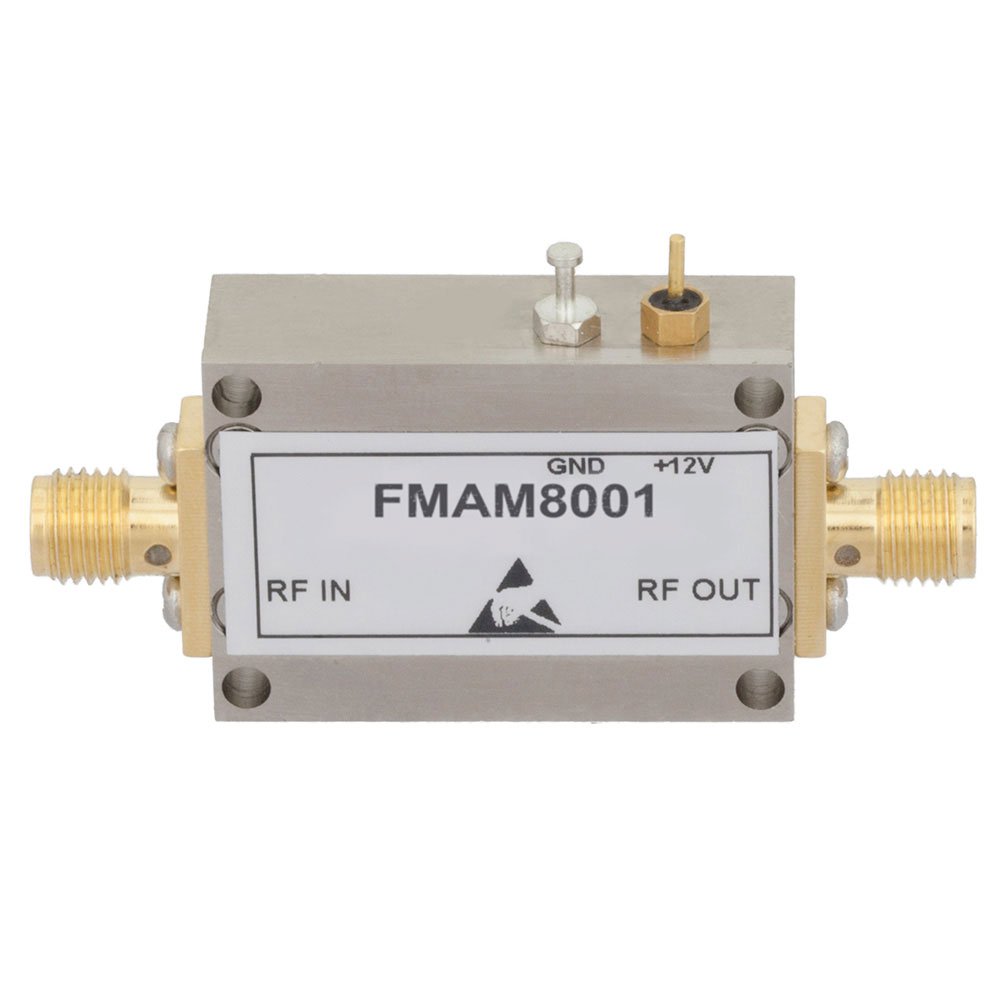

The FMAM8001 is a general-purpose RF amplifier manufactured by Fairview Microwave. It operates within a frequency range of 10 MHz to 6 GHz and provides a gain of 14.5 dB. The device features an input/output configuration using SMA connectors and delivers a 1 dB compression point (P1dB) of 14 dBm. It requires a DC power supply voltage ranging from 8 V to 15 V, with a typical operating current of 45 mA. The unit is packaged in a bag for individual handling.

Feature Summary

• Provides linear amplification across a wide broadband frequency spectrum from 10 MHz to 6 GHz
• Integrates SMA connectors for straightforward signal interfacing
• Designed for general-purpose applications requiring moderate output power

Applications

• Broadband signal conditioning in test and measurement equipment
• Intermediate frequency amplification in communication systems
• Signal boosting in RF instrumentation modules

Procurement Notes

Verify the specific datasheet version before procurement to ensure compatibility with system requirements. Confirm that the SMA connector type matches the interface specifications of the host circuitry. Check current availability status as distribution may vary by region. Ensure the power supply design accommodates the specified voltage and current parameters for reliable operation.

Selection Notes

Select this component when a wide bandwidth covering low frequencies up to 6 GHz is required. Consider the 14.5 dB gain and 14 dBm P1dB output for moderate signal levels. Evaluate the SMA interface against existing board layouts. Compare against other models like FMAM8007 if higher frequency or gain performance is necessary for the specific application.

Part Context

This amplifier belongs to the Fairview Microwave RF amplifier product line, which includes various gain blocks and low-noise amplifiers. These components are designed for wireless and RF integrated circuit applications. The FMAM8001 serves as a versatile solution for engineers needing broad frequency coverage in a compact module format.
