FMAM8005

Overview

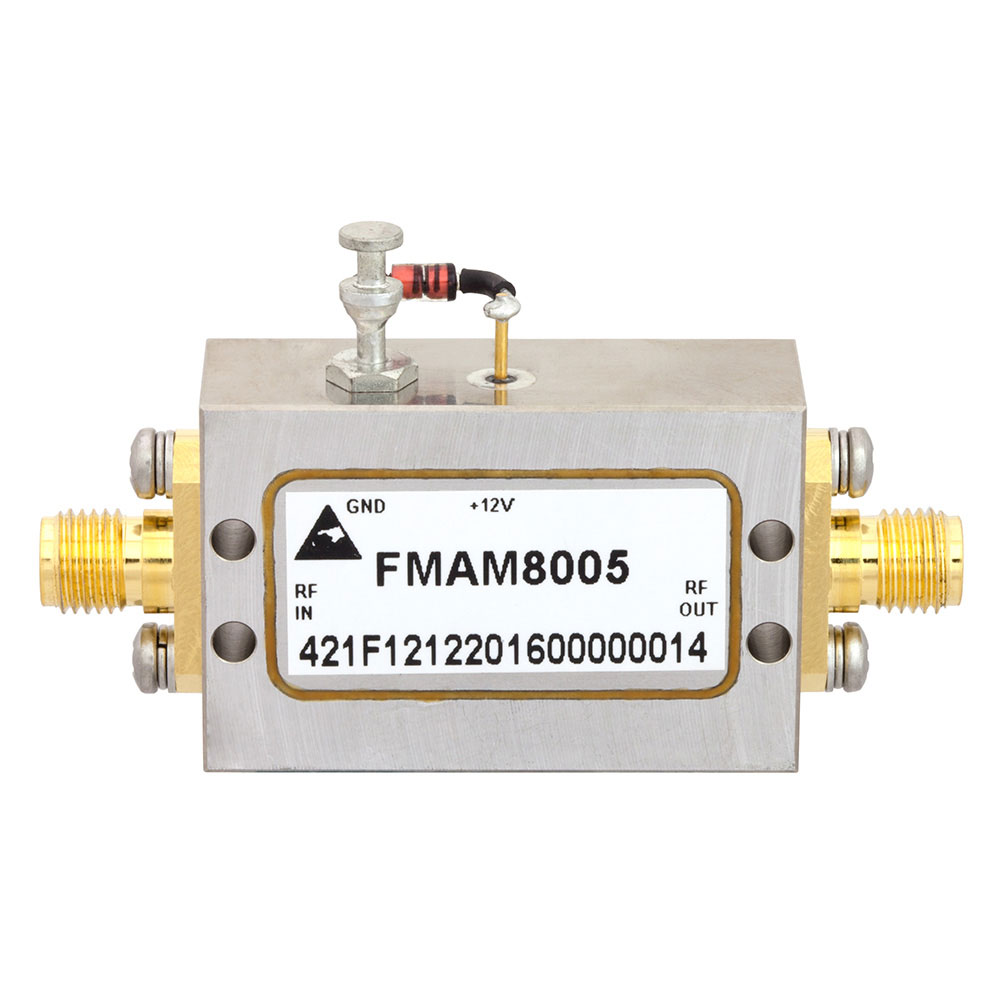

The FMAM8005 is a general-purpose RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 2 GHz. The device provides a small signal gain ranging from 45 dB to 50 dB peak-to-peak, with a specified gain flatness of 1.8 dB. This component is designed for integration into radio frequency circuits requiring stable amplification across the UHF and lower microwave bands.

Feature Summary

• Provides high small signal gain suitable for signal boosting applications
• Maintains consistent performance with low gain variation across the operating band
• Engineered as a general-purpose module for versatile RF circuit integration

Applications

• General purpose radio frequency signal amplification
• UHF and microwave communication systems
• Test and measurement equipment signal conditioning

Procurement Notes

Verify specific gain requirements against the 45 to 50 dB peak-to-peak specification before ordering. Confirm that the 1.8 dB gain flatness meets system tolerance limits. Ensure compatibility with the intended frequency range of 500 MHz to 2 GHz. Check current availability status through authorized distributors as supply levels may fluctuate.

Selection Notes

Select this model when a broad frequency coverage between 500 MHz and 2 GHz is required. The moderate gain flatness makes it suitable for applications where strict amplitude linearity is not the primary constraint. Consider thermal management if operating at maximum gain levels. Validate interface requirements against system specifications prior to implementation.

Part Context

Fairview Microwave produces specialized RF components for wireless and test markets. The FMAM8005 belongs to their general-purpose amplifier lineup. These modules bridge discrete component flexibility with packaged convenience. The product supports engineers designing systems in the UHF spectrum without requiring complex custom amplifier design.
