FMANLP1007

Antennas RF Overview

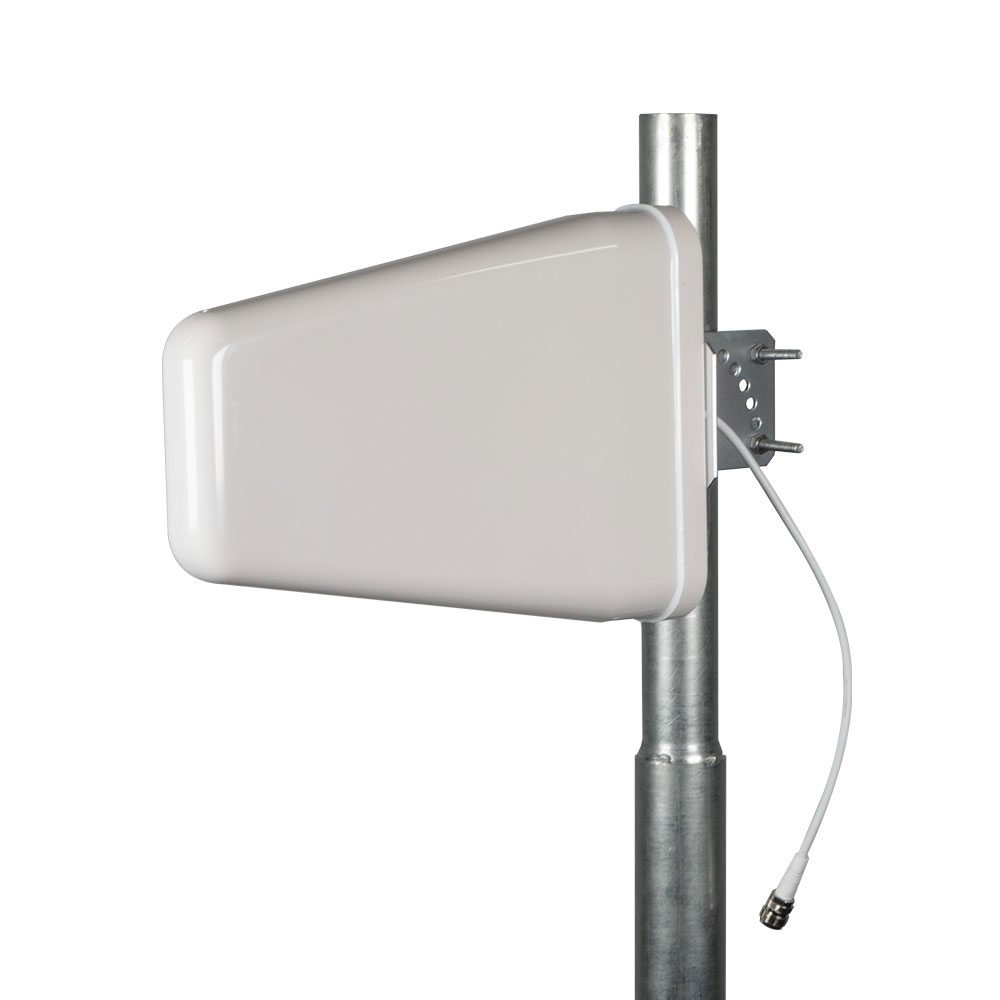

The FMANLP1007 is a directional log periodic antenna manufactured by Fairview Microwave. It operates within a frequency range of 806 MHz to 2500 MHz and provides a maximum gain of 9 dBi. The antenna features vertical polarization and utilizes a Type N female connector for interface compatibility. It is constructed with an ABS radome, ensuring durability and environmental protection for the internal elements.

Antennas RF Feature Summary

• Directional radiation pattern optimized for specific signal reception or transmission directions
• Log periodic design enabling consistent performance across a wide operational bandwidth
• Protected internal structure housed within a durable ABS radome

Antennas RF Applications

• Wireless communication base station installations
• RF monitoring and spectrum analysis setups
• Test and measurement environments requiring wideband coverage

Antennas RF Procurement Notes

Verify the specific connector gender and cable length requirements against system specifications before ordering. Confirm that the operating frequency range aligns with the intended application bandwidth. Ensure the vertical polarization matches the receiving equipment's configuration. Check local regulatory compliance for the target deployment region.

Antennas RF Selection Notes

Select this model when a wide frequency span from sub-GHz to 2.5 GHz is required in a single unit. The Type N connector offers robust mechanical stability for permanent installations. Consider the directional nature of the antenna to maximize signal-to-noise ratio in targeted areas compared to omnidirectional alternatives.

Antennas RF Part Context

This component belongs to the Fairview Microwave directional log periodic antenna series. These antennas are engineered for applications demanding broad frequency coverage without significant gain variation. The product line typically serves professional RF engineering needs where reliable wideband performance is critical.
