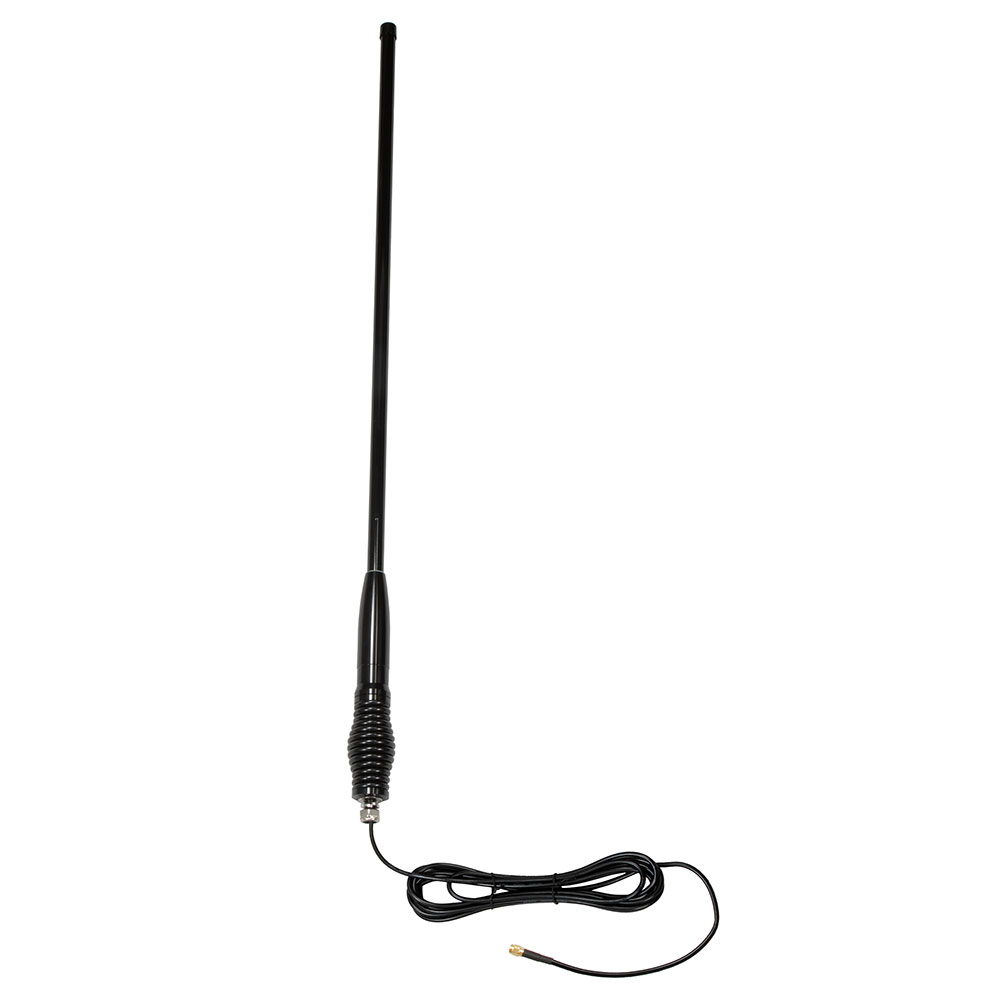

FMANOM1071 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA SMA PLUG 698 MHZ-2.7 GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FMANOM1071
- Description：ANTENNA SMA PLUG 698 MHZ-2.7 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.699GHz
- Frequency Range：698MHz ~ 2.7GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：6.5dBi
- Features：Cable - 4.5m
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Base Mount
- Height (Max)：41.460" (105.31cm)
- Applications：General Purpose
- Power - Max：100 W
Antennas RF datasheet and documents for FMANOM1071
Antennas RF Overview
The FMANOM1071 is an omnidirectional antenna manufactured by Fairview Microwave, designed for operation within the 698 MHz to 2700 MHz frequency range. It provides a gain of 6.5 dBi and features an SMA male connector. The unit is housed in a white fiberglass radome.
Antennas RF Feature Summary
- Omnidirectional radiation pattern
- White fiberglass radome housing
Antennas RF Applications
- Wireless communication systems
- Broadband signal reception
- RF infrastructure deployment
Antennas RF Procurement Notes
Verify the specific SMA connector gender and radome material against official Fairview Microwave documentation before integration. Confirm that the 698 MHz to 2700 MHz operational bandwidth aligns with target system requirements. Ensure environmental ratings match installation conditions.
Antennas RF Selection Notes
Select this model when broad frequency coverage from sub-GHz to 2.7 GHz is required in a single unit. The omnidirectional design suits applications needing uniform signal distribution. Verify compatibility with existing SMA interfaces and mounting structures.
Antennas RF Part Context
This component belongs to Fairview Microwave's antenna portfolio, specifically categorized under RF antennas. It serves as a passive radiating element for wireless networks, distinct from active amplifiers or connectors found in other product lines.
Antennas RF Replacement Considerations
No public substitute part numbers are documented. Evaluate alternatives based on matching frequency range, gain specifications, and connector type.
Antennas RF FAQ
What is the operating frequency range?
The antenna operates from 698 MHz to 2700 MHz.
What connector type does it use?
It utilizes an SMA male connector.
