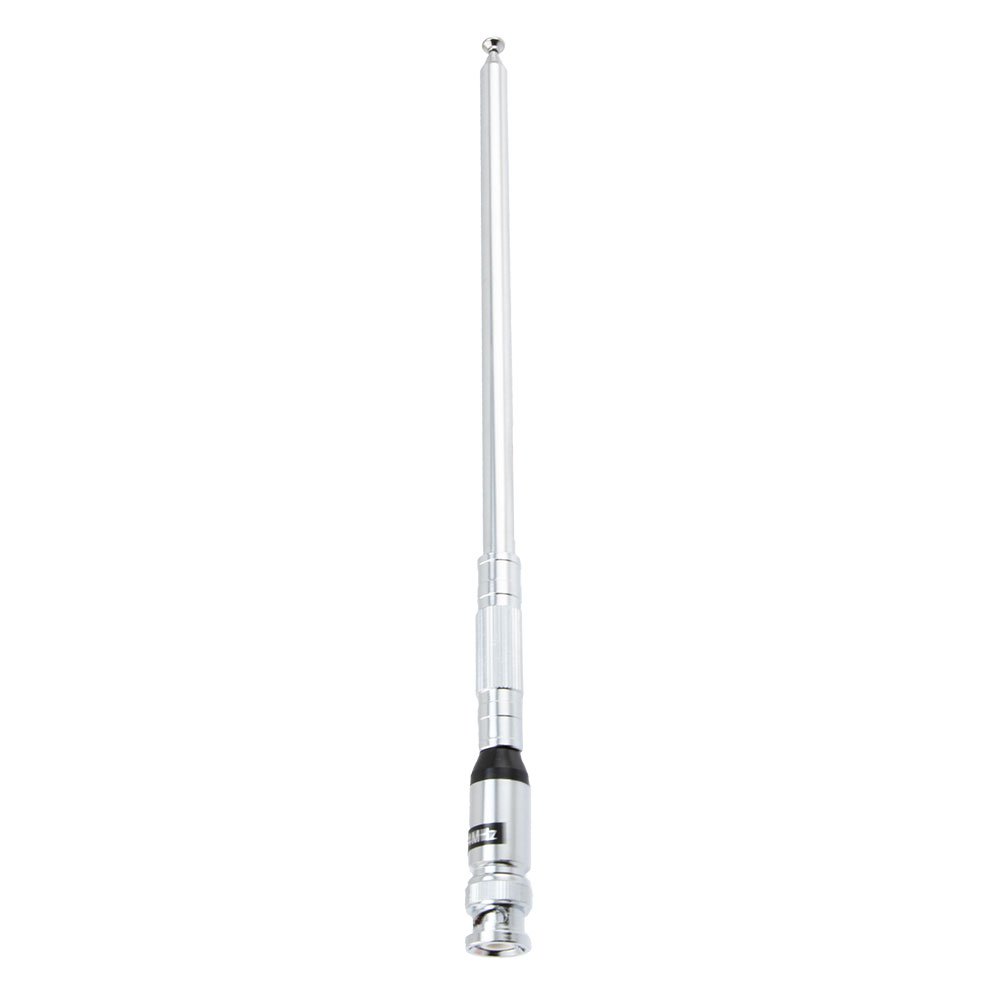

FMANRBD1013

$22.03

Description：ANTENNA BNC139 MHZ-174 MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:8db2601aea62 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMANRBD1013 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA BNC139 MHZ-174 MHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMANRBD1013

Description：ANTENNA BNC139 MHZ-174 MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：VHF (f < 300MHz)
Frequency (Center/Band)：156.5MHz
Frequency Range：139MHz ~ 174MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：3
Return Loss：-
Gain：3.5dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：BNC
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：43.300" (109.98cm)
Applications：General Purpose
Power - Max：20 W

Antennas RF datasheet and documents for FMANRBD1013

FMANRBD1013

Antennas RF Overview

The FMANRBD1013 is a VHF rubber duck antenna manufactured by Fairview Microwave. It operates within the 136 MHz to 174 MHz frequency range and features a BNC connector interface. The antenna provides a gain of 3.5 dBi with vertical polarization.

Antennas RF Feature Summary

Utilizes a flexible rubber duck design for compact form factor
Provides vertical polarization for omnidirectional coverage
Integrates a BNC connector for standard RF interfacing

Antennas RF Applications

VHF mobile radio communications
Marine communication systems
Public safety handheld transceivers

Antennas RF Procurement Notes

Verify the specific BNC connector gender and mating requirements against the host device specifications. Confirm that the operating frequency range aligns with the intended application band. Check physical dimensions to ensure compatibility with mounting constraints. Validate environmental ratings if outdoor exposure is anticipated.

Antennas RF Selection Notes

Select this model when a low-profile, flexible antenna solution is required for VHF bands. The 3.5 dBi gain offers a balance between size and performance. Ensure the BNC interface matches the equipment port. Consider the mechanical flexibility needs for mobile or portable installations.

Antennas RF Part Context

This component belongs to the Fairview Microwave antenna portfolio, specifically designed for VHF applications. It serves as a passive radiating element within wireless communication systems, converting electrical signals into electromagnetic waves for transmission and reception in the specified frequency band.
