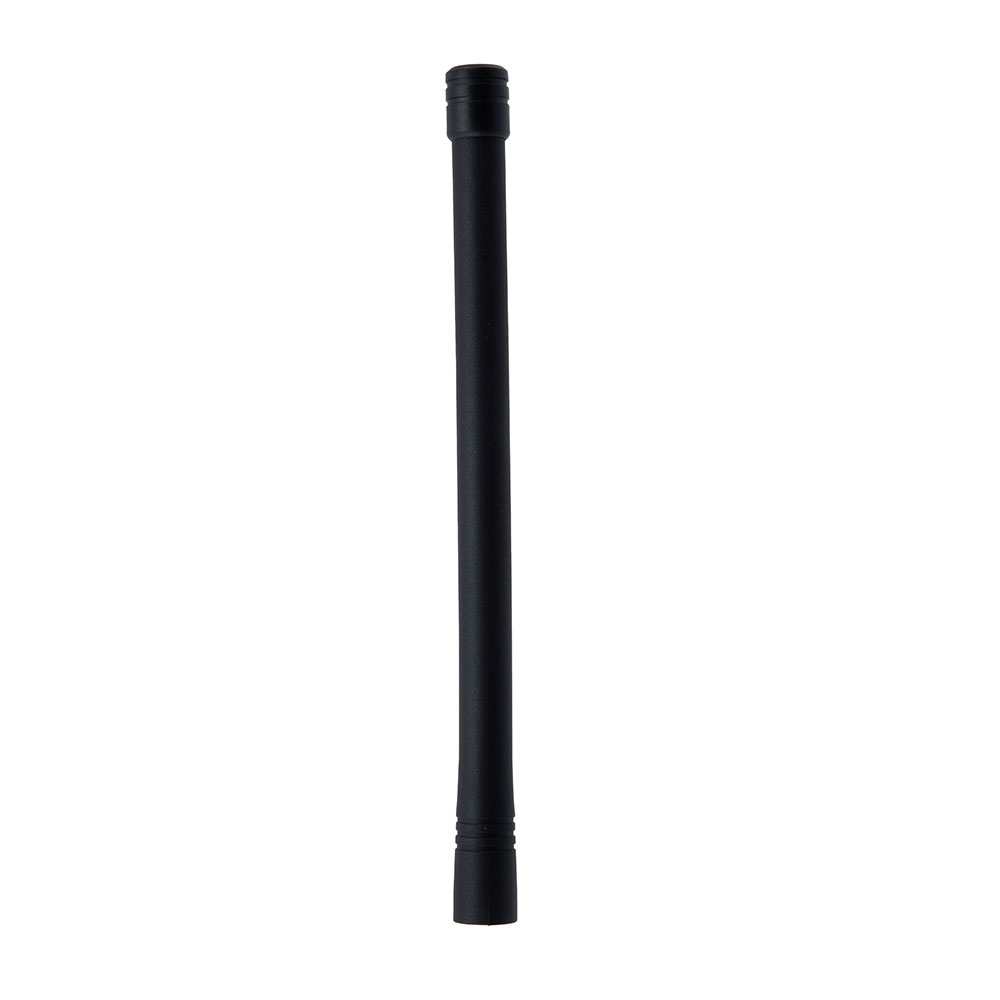

FMANRBD1019 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA SMA PLUG 136 MHZ-174 MHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FMANRBD1019
- Description：ANTENNA SMA PLUG 136 MHZ-174 MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：VHF (f < 300MHz)
- Frequency (Center/Band)：155MHz
- Frequency Range：136MHz ~ 174MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：1.8dBi
- Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：6.400" (162.56mm)
- Applications：General Purpose
- Power - Max：50 W
Antennas RF datasheet and documents for FMANRBD1019
Antennas RF Overview
The FMANRBD1019 is a general-purpose whip antenna manufactured by Fairview Microwave, designed for operation within the 136 MHz to 174 MHz frequency band. It features a vertical polarization configuration and provides a gain of 1.8 dBi. The component utilizes an SMA male connector for interface purposes and employs a rubber duck construction style suitable for flexible deployment.
Antennas RF Feature Summary
- Vertical polarization design for omnidirectional signal coverage
- Rubber duck construction providing flexibility and durability
- SMA male connector interface for standard RF integration
Antennas RF Applications
- Marine VHF radio communications
- Aviation communication systems
- General purpose wireless telemetry links
Antennas RF Procurement Notes
Verify that the specific application environment requires the 136-174 MHz operational range and 1.8 dBi gain specification. Confirm mechanical compatibility with the SMA male port on the target transceiver or receiver unit before finalizing procurement decisions.
Antennas RF Selection Notes
Select this model when a flexible, low-profile antenna solution is required for VHF bands. Ensure the mounting location allows for adequate clearance around the whip element to maintain optimal radiation patterns and prevent detuning effects from nearby conductive surfaces.
Antennas RF Part Context
This component belongs to Fairview Microwave's RF antenna product line, specifically categorized under general-purpose whip antennas. It serves as a specialized hardware element for establishing reliable radio frequency links in mobile or portable communication platforms operating within the specified VHF spectrum.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative models based on matching frequency ranges, connector types, and gain specifications if sourcing constraints exist.
Antennas RF FAQ
What is the polarization type of the FMANRBD1019?
The FMANRBD1019 features vertical polarization.
Does the FMANRBD1019 include a cable assembly?
The product description identifies it as a general-purpose whip antenna with an SMA male connector mount; no integrated cable length is specified in the provided data.
