FMAT7001

Overview

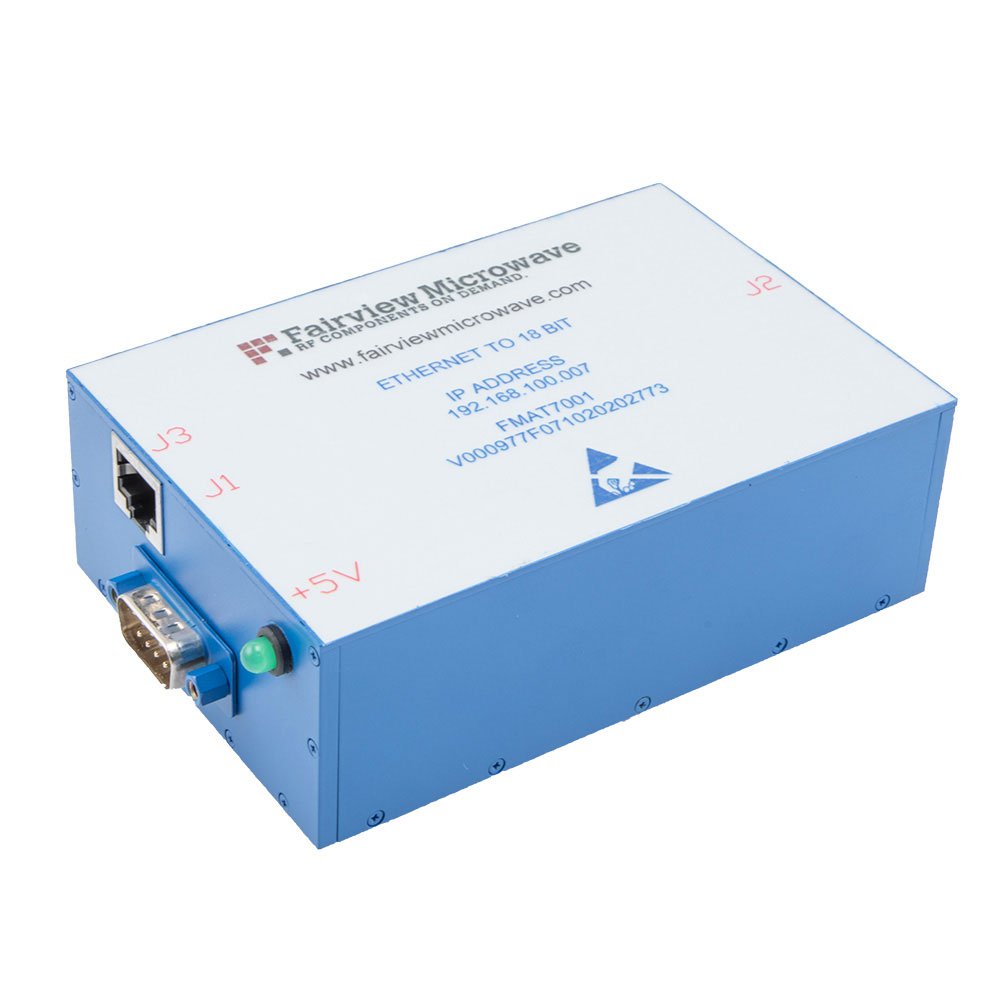

The FMAT7001 is an RF IC controller module designed for radar applications, manufactured by Fairview Microwave. It features an RJ45 Ethernet interface with auto-sensing capabilities and a TTL programmable interface. The device operates on a 5V supply voltage and supports a minimum operating temperature of -40°C and a maximum operating temperature of +70°C. This component integrates microcontroller functionality to facilitate communication and control within radar systems via standard Ethernet connectivity.

Feature Summary

• Integrates an RJ45 Ethernet interface with auto-sensing technology for network connectivity
• Features a TTL programmable interface for flexible control logic implementation
• Designed specifically as an RF IC controller for radar system applications

Applications

• Radar system control and monitoring
• RF integrated circuit management
• Ethernet-based industrial automation interfaces

Procurement Notes

Verify the specific firmware version and hardware revision against project requirements before procurement. Confirm that the 5V power supply specification aligns with existing system infrastructure. Ensure environmental ratings meet operational temperature constraints. Check for any proprietary programming tools required for the TTL interface configuration. Validate compatibility with existing Ethernet network protocols.

Selection Notes

Select this module when a dedicated RF controller with Ethernet connectivity is required for radar applications. Consider the -40°C to +70°C operating range for environmental suitability. Evaluate the need for TTL programmability versus other interface standards. Assess whether the integrated auto-sensing Ethernet feature simplifies cabling requirements compared to discrete solutions.

Part Context

Fairview Microwave offers specialized RF components including cable assemblies, attenuators, and amplifiers. The FMAT7001 represents their entry into integrated control modules, bridging RF hardware with digital networking. This product complements their broader portfolio by providing connectivity solutions for complex RF test and measurement setups.

FAQ

What is the primary function of the FMAT7001?

It serves as an RF IC controller module for radar applications, featuring an RJ45 Ethernet interface and TTL programmability.

Does the FMAT7001 support auto-sensing Ethernet?

Yes, the module includes an Ethernet interface with auto-sensing capabilities.
