Product Detailed Parameters
- Description：EQUALIZER SMA 0.5-2 GHZ 4 DB
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Linear Equalizer
- Frequency：500MHz ~ 2GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

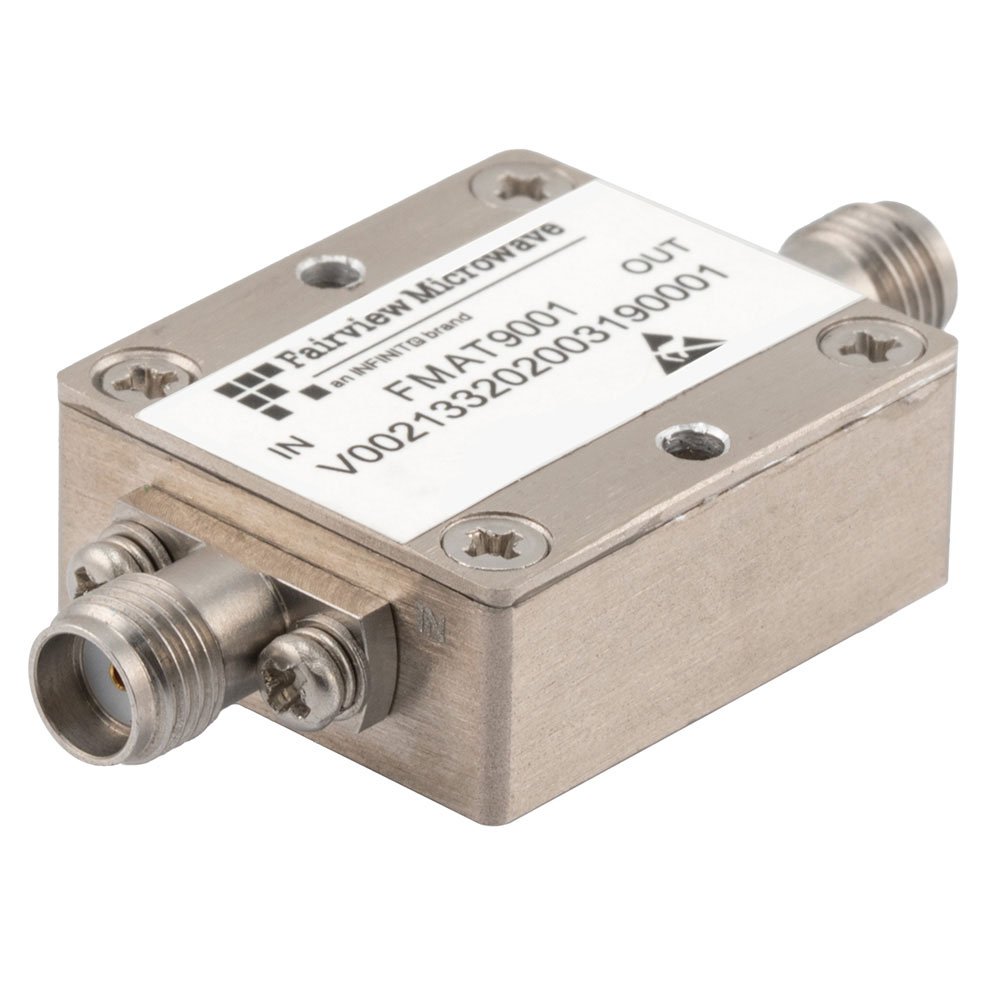

The FMAT9001 is a field-replaceable positive slope equalizer manufactured by Fairview Microwave. It operates within a frequency range of 500 MHz to 2 GHz and utilizes SMA connectors. The component features a maximum insertion loss of 1 dB and supports a maximum input power of +30 dBm. It provides four fixed equalizing values to adjust signal characteristics. This device is designed for integration into RF systems requiring precise amplitude correction across the specified microwave frequency band.
Feature Summary
- Field-replaceable design for maintenance flexibility
- Positive slope equalization capability
- Four fixed equalizing value options
Applications
- RF signal conditioning in communication systems
- Amplitude correction in microwave test setups
- Signal integrity optimization in broadband applications
Procurement Notes
Verify the specific equalizing value configuration required for your application, as the part offers four fixed options. Confirm SMA connector compatibility and ensure the system can accommodate the +30 dBm maximum input power rating. Check current availability status with authorized distributors, as supply levels may vary. Ensure the operating environment remains within the standard specifications defined in the official datasheet.
Selection Notes
Select this component when a positive slope response is needed between 500 MHz and 2 GHz. Consider the four available fixed equalizing values to match specific system requirements. Verify that the SMA interface aligns with existing infrastructure. Evaluate the 1 dB loss characteristic against system budget constraints. Ensure the field-replaceable nature meets maintenance protocols.
Part Context
This equalizer belongs to Fairview Microwave's interconnect and passive component portfolio. It complements other RF solutions like attenuators and amplifiers by providing targeted signal shaping. The product line focuses on high-performance microwave components for demanding environments. Integration with other Fairview products ensures consistent performance standards across complex RF assemblies.
Replacement Considerations
No public confirmed substitute part numbers are identified in the provided documentation. Direct replacement requires matching the SMA interface, frequency range, and specific equalizing value. Consult manufacturer guidelines for any updated revisions or alternative models within the same product family.
