FMAT9003

Overview

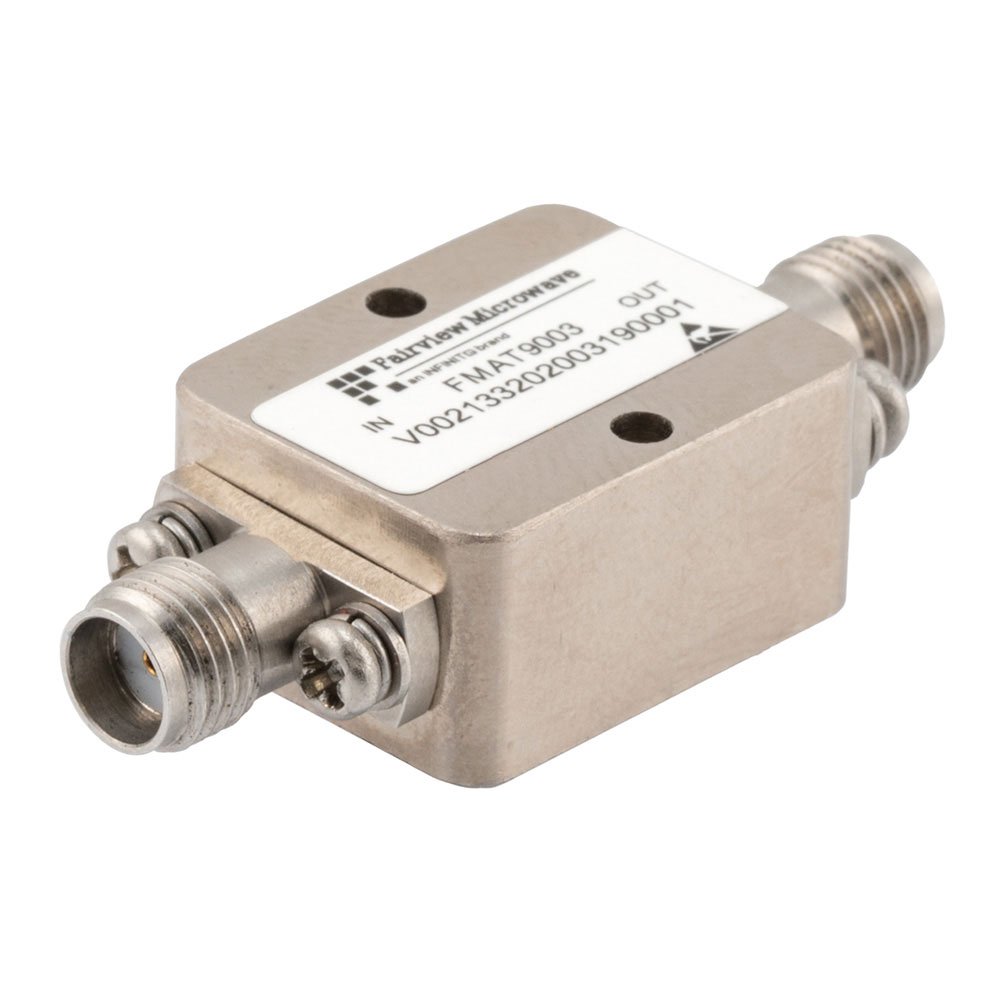

The FMAT9003 is a linear equalizer designed for RF applications, manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 18 GHz and utilizes SMA connectors for signal interfacing. This component functions as a general-purpose IC module intended to compensate for signal amplitude variations across its specified bandwidth.

Feature Summary

• Linear signal equalization capability
• Broadband operation from 1 GHz to 18 GHz
• SMA connector interface configuration

Applications

• RF signal conditioning in broadband systems
• Amplitude compensation in high-frequency circuits
• General-purpose equalization modules

Procurement Notes

Verify the specific datasheet version and manufacturer documentation before integration. Confirm that the SMA connector polarity and impedance match system requirements. Ensure the operating temperature range aligns with environmental conditions. Check for any recent revisions to the component specifications that may affect performance parameters.

Selection Notes

Select this component when broadband equalization is required between 1 GHz and 18 GHz. The SMA interface suits standard test and measurement setups. Consider thermal management if power dissipation exceeds typical limits. Verify compatibility with existing PCB layout constraints for surface-mount or through-hole implementation.

Part Context

Fairview Microwave produces specialized RF components including amplifiers, filters, and cable assemblies. The FMAT9003 belongs to their RF IC and module category, providing active signal processing solutions. It complements passive waveguide and coaxial products in complete RF system designs.

Replacement Considerations

No public substitute part numbers are documented for the FMAT9003. Evaluate equivalent linear equalizers from other manufacturers only if they meet identical frequency, connector, and performance specifications.
